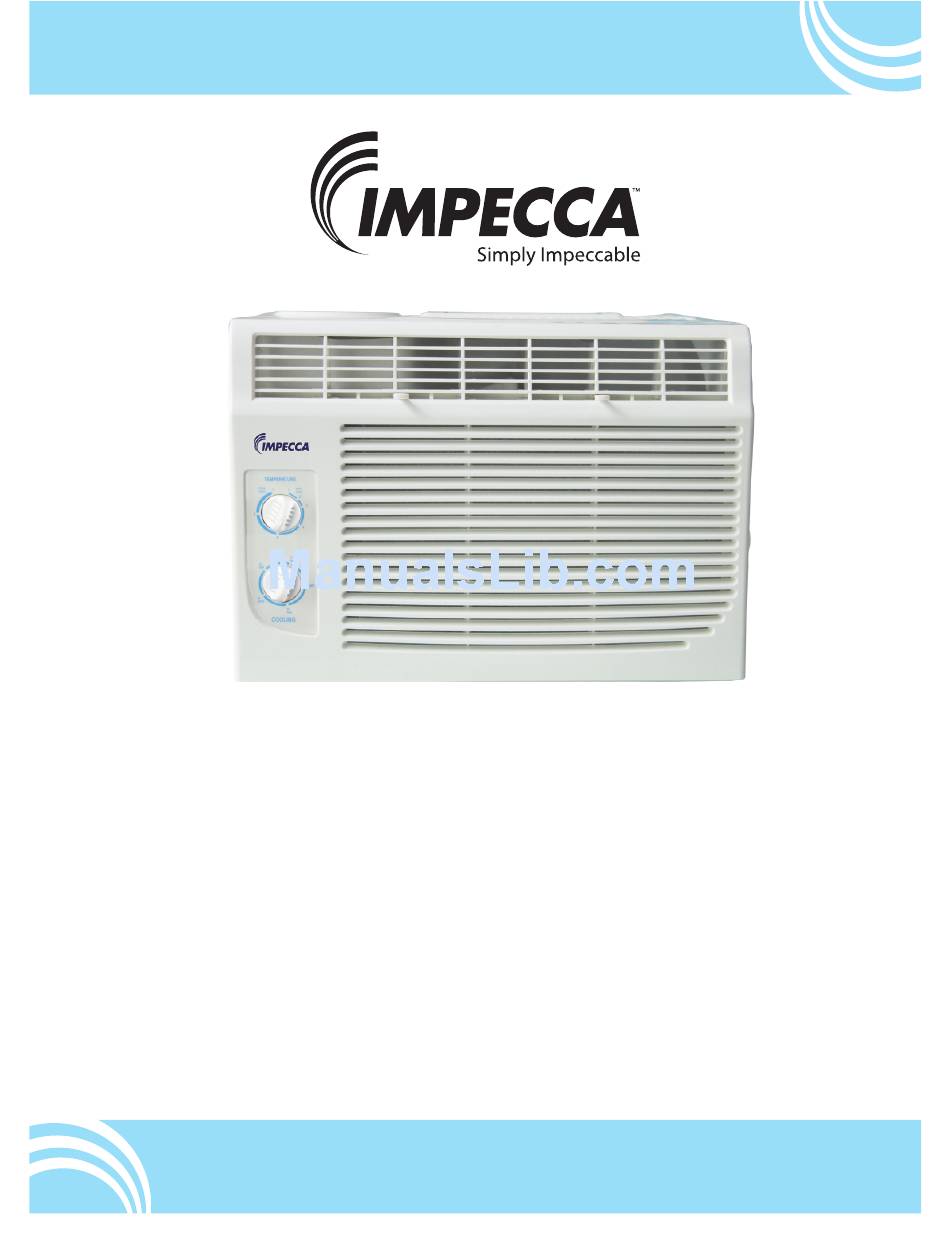

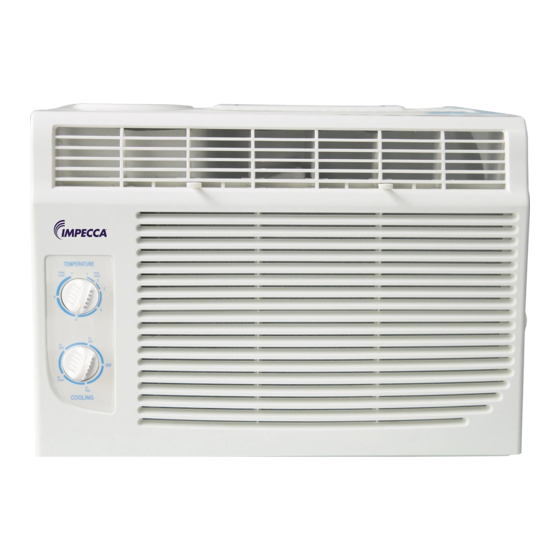

- Page 1 Mechanical Controlled Mini Window Air Conditioner Acondicionador de Aire de Ventana Compacto y Controlado Electronico User’s Guide Manual del Usuario Model# IWA-05KM15 - 5000 Btu Model# IWA-06KM15 - 6000 Btu...
-
Page 2: Table Of Contents
Care and Cleaning ..........................16 Additional Things You Should Know ...................... 17 Troubleshooting Tips ..........................19 ESTE MANUAL ES TAMBIÉN DISPONIBLE EN ESPAÑOL Y SE PUEDE DESCARGAR EN: WWW.IMPECCA.COM THIS MANUAL IS ALSO AVAILABLE IN SPANISH AND CAN BE DOWNLOADED AT: WWW.IMPECCA.COM... -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase of the IMPECCA™ Mechanical Controlled Compact Window Air Conditioner. Before using this product, it is recommended that you familiarize yourself with the features, functions, and operating procedures described in this manual. Inside you will find many helpful hints on how to use and maintain your air conditioner properly. -
Page 4: What's In The Box
WHAT’S IN THE BOX 1. AC Unit 2. User’s Guide 3. Window Installation Kit (Not shown) - 3 -... -
Page 5: Warnings
WARNINGS Do not start or stop the unit by Do not use a damaged or Plug in power plug inserting or pulling out the unspecified power cord. properly. power plug. Failure to do so may cause Doing so may cause electric If the power cord is damaged, it electric shock or fire due to shock or fire due to surges. -
Page 6: Cautions
CAUTIONS Do not clean the air conditioner Ventilate the room well when When the air filter is to be with water. used together with a stove, etc. removed, do not touch the metal parts of the unit. Injury may occur. Water may enter the unit and Failure to do so may result in an degrade the insulation. -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The power supply cord with this air conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the “Operation of Current Device” section for more details. In the event that the power supply cord is damaged, it cannot be repaired. -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Your air conditioner is designed to install in standard double hung windows with opening widths of 23 to 36 inches (584mm to 914mm) (See Figure 1). Lower sash must open sufficiently to allow a clear vertical opening of 13 inches (330mm). Side louvers OFFSET and the rear of the AC must have clear air space to allow enough airflow through the condenser, for... - Page 9 3: Align the hole in the top rail with those in the top of the unit as shown in Figure B. 4: Secure the top rail to the unit with the 3/8” screws as shown in Figure C. Note: For safety reasons, all four (4) screws MUST be securely fastened.
- Page 10 FIGURE 4 Once the panel has been installed on the side of the cabinet, make sure it sits securely inside the frame channel by making slight adjustments. Slide the top and bottom ends of the frame into the top and bottom rails of the cabinet. Figure 4 Note: If storm window blocks AC, see Figure 13 Keep a firm grip on the air conditioner, and carefully place the unit into the window opening so that the bottom of the air conditioner frame is against the windowsill (See Fig.
- Page 11 Drive ½” (13mm) locking screws through frame holes into window sash (See Fig. 9 and Fig. 10). Fig. 9 Fig.10 To secure lower sash in place, attach right angle sash lock with 3/4” (19mm) or ½” (13mm) screw as Shown. (See Fig.11). Cut foam seal to size and insert in the space between the upper Fig.
-
Page 12: Air Conditioner Features And Operation Instructions
OPERATION OF POWER CORD CIRCUIT BREAKER The power supply cord contains a current device/circuit breaker that senses damage to the power cord. To test your power supply cord do the following: 1. Plug in the Air Conditioner. 2. The power supply cord will have two buttons on the plug head. Press the TEST button, you will notice a click as the RESET button pops out. - Page 13 The controls featured in this manual may be slightly different from yours. Cool Mode The desired cool setting is selected by rotating the COOLING knob to the right to the appropriate location. “HI COOL” provides maximum cooling effect and airflow “LOW COOL”...
-
Page 14: Care And Cleaning
CARE AND CLEANING CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary. -
Page 15: Additional Things You Should Know
ADDITIONAL THINGS YOU SHOULD KNOW Normal Operating Sounds High Pitched Chatter Sound of Rushing Air High efficiency compressors may have a high At the front of the unit, you may pitched chatter during the cooling cycle. hear the sound of rushing air being moved by the fan. -
Page 16: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. PROBLEM SOLUTION Air conditioner does not start. 1. - Page 17 This is normal during excessively humid days. Technical support For questions not answered in this manual, or for warranty service, please contact Impecca Technical Support: By phone: 1-866-954-4440 (9:00 AM to 6:00 PM Eastern Time) By e-mail: service@impeccausa.com Online: www.impecca.com ©...
