TABLE OF CONTENTS Introduction ............................2 What’s In the Box ........................... 3 Warnings ............................... 4 Cautions ..............................5 Important Safety Instructions ......................... 6 Installation Instructions .......................... 7 Operation of Power Cord Current Device ....................11 Air Conditioner Features and Operation Instructions ................11 Care and Cleaning .......................... -
Page 3: Introduction

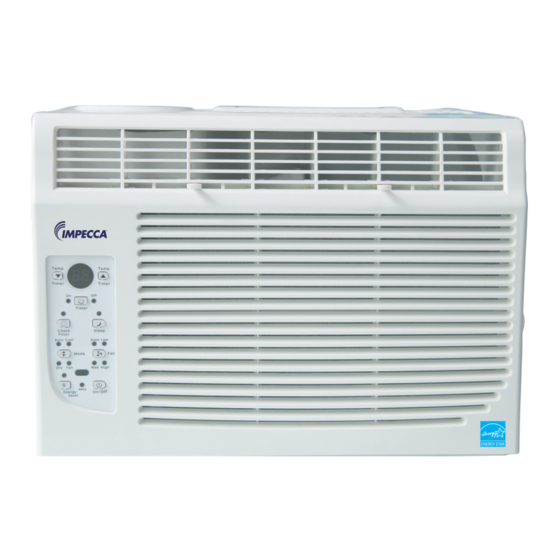

INTRODUCTION Congratulations on your purchase of the IMPECCA™ Electronic Controlled Compact Window Air Conditioner. Before using this product, it is recommended that you familiarize yourself with the features, functions, and operating procedures described in this manual. Inside you will find many helpful hints on how to use and maintain your air conditioner properly. -
Page 4: What's In The Box
WHAT’S IN THE BOX 1. AC Unit 2. Remote control 3. User’s Guide 4. Remote control user’s guide (not shown) 5. Window Installation Kit (not shown) - 3 -... -
Page 5: Warnings
WARNINGS Do not start or stop the unit by Do not use a damaged or Plug in power plug inserting or pulling out the unspecified power cord. properly. power plug. Failure to do so may cause Doing so may cause electric If the power cord is damaged, it electric shock or fire due to shock or fire due to surges. -
Page 6: Cautions
CAUTIONS Do not clean the air conditioner Ventilate the room well when When the air filter is to be with water. used together with a stove, etc. removed, do not touch the metal parts of the unit. Injury may occur. Water may enter the unit and Failure to do so may result in an degrade the insulation. -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The power supply cord with this air conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the “Operation of Current Device” section for more details. In the event that the power supply cord is damaged, it cannot be repaired. -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Your air conditioner is designed to install in standard double hung windows with opening widths of 23 to 36 inches (584mm to 914mm) (See Figure 1). Lower sash must open sufficiently to allow a clear vertical opening of the following sizes (see Table 1). OFFSET Side louvers and the rear of the AC must have clear air space to allow enough airflow through the... - Page 9 3: Align the hole in the top rail with those in the top of the unit as shown in Figure B. 4: Secure the top rail to the unit with the 3/8” screws as shown in Figure C. Note: For safety reasons, all four (4) screws MUST be securely fastened.
- Page 10 FIGURE 4 Once the panel has been installed on the side of the cabinet, make sure it sits securely inside the frame channel by making slight adjustments. Slide the top and bottom ends of the frame into the top and bottom rails of the cabinet. Figure 4 Note: If storm window blocks AC, see Figure 13 Keep a firm grip on the air conditioner, and carefully place the unit into the window opening so that the bottom of the air conditioner frame is against the windowsill (See Fig.
-
Page 11: Removing Ac From Window
Drive ½” (13mm) locking screws through frame holes into window sash (See Fig. 9 and Fig. 10). Fig. 9 Fig.10 To secure lower sash in place, attach right angle sash lock with 3/4” (19mm) or ½” (13mm) screw as Shown. (See Fig.11). Cut foam seal and insert in the space between the upper Fig. -
Page 12: Operation Of Power Cord Current Device
OPERATION OF POWER CORD CURRENT DEVICE The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord do the following: 1. Plug in the Air Conditioner. 2. The power supply cord will have TWO buttons on the plug head. Press the TEST button, you will notice a click as the RESET button pops out. - Page 13 Note: The following instructions are accessed by pressing the buttons located on the Unit Control Panel. The same instructions can be used via the remote control. Power On/Off: Press the On/Off button PMTS Change Temperature Setting: Press or hold either Left () or Right () button until the desired temperature is seen on the display.
- Page 14 To Select the Operating Mode: To choose operating mode, press the Mode button. Each time you press the button, a mode is selected in a sequence that goes from AUTO, COOL, DRY, and FAN. The indicator light beside will be illuminated and will remain on once the mode is selected.
- Page 15 To Use the Sleep Feature: Press the Sleep Button Sleep Feature: In this mode the selected temperature will increase by 2°F (or 2°C) 30 minutes after the mode is selected. The temperature will then increase by another 2°F (or 2°C) after an additional 30 minutes. This new temperature will be maintained for 6 hours before it returns to the originally selected temperature.
- Page 16 To Use the Clean Air Feature (Only available on some models): Press the Clean Air Button Press the Clean Air button. The ion generator is energized and will help to remove pollen and impurities from the air, trapping them in the filter. Displays The display panel shows the set temperature in Celsius or Fahrenheit and the Auto- timer settings.
-
Page 17: Care And Cleaning
CARE AND CLEANING CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary. -
Page 18: Additional Things You Should Know
ADDITIONAL THINGS YOU SHOULD KNOW Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with. The Cool circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents overheating of the compressor and possible circuit breaker tripping. - Page 19 Air Directional Louvers The louvers will allow you to direct the airflow Left or Right as needed. Lever Move the levers from side to side until the desired airflow direction is obtained. Air Direction - 18 -...
-
Page 20: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. PROBLEM SOLUTION Air conditioner does not start. 1. - Page 21 Noise when unit is cooling. 1. Air movement sound. This is normal. If noise is too loud, set to a lower FAN setting. 2. Window vibration - poor installation. Refer to installation instructions or check with installer. Water dripping INSIDE when unit is 1.
