ORIGINAL INSTRUCTIONS
S/N: 1001 AND ABOVE
PLEASE CONTACT GAGE BILT FOR
ALL OTHER SERIAL NUMBERS.

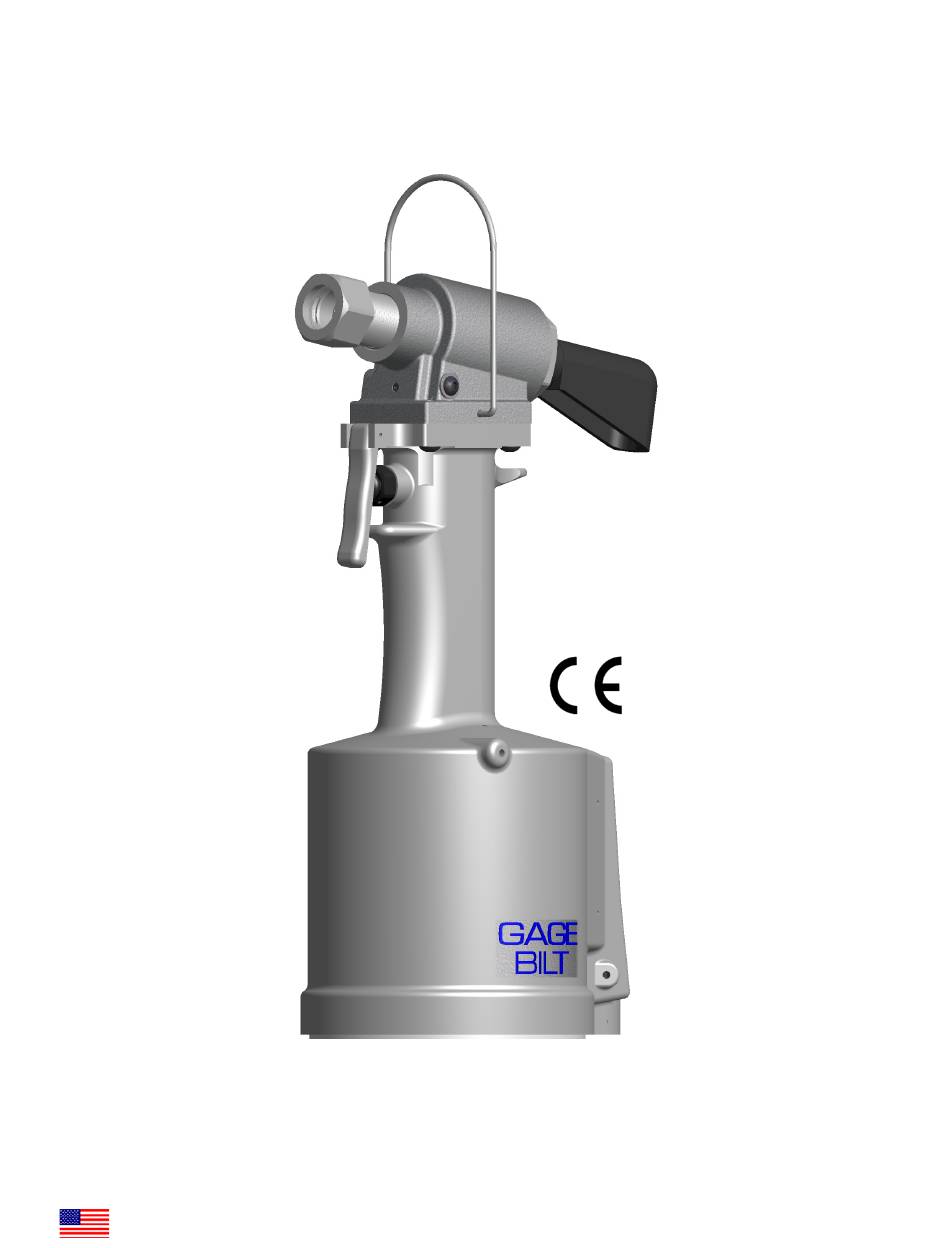

GB714
INSTALLATION TOOL
GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE
E-MAIL US FOR A DISTRIBUTOR NEAR YOU.
GAGE BILT
44766 Centre Court, Clinton Twp., MI. 48038 USA
Ph: +1 (586) 226-1500 Fax: +1 (586) 226-1505
MADE in USA
solutions@gagebilt.com / www.gagebilt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GB714 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gage Bilt GB714

  • Page 1 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS. GB714 INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. GAGE BILT 44766 Centre Court, Clinton Twp., MI. 48038 USA Ph: +1 (586) 226-1500 Fax: +1 (586) 226-1505 MADE in USA solutions@gagebilt.com / www.gagebilt.com...
  • Page 2: Table Of Contents

    Parts Lists ....................................16 DEXRON® III Oil Safety Data (SDS) ............................17 Accessories & Nose Assembly Selection Chart ........................18 Accessories ....................................20 GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 3: Eu Conformity And Warranty

    GAGE BILT DECLARATION OF CONFORMITY MANUFACTURER: Gage Bilt Inc. 44766 Centre Ct. Clinton Twp. Michigan U.S.A. +1(586-226-1500) WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING DIRECTIVES AND STANDARDS Machinery Directive 2006/42/EC EN12100-1 & 12100-2:2010 EN ISO 11148-1:2011 EU REPRESENTATIVE Edgar Hausmann GmbH Förster-Busch-Str.
  • Page 4: Description And Technical Specifications

    90 psi (6.2 bar) air pressure at the air inlet. The GB714 installation tool operates on 90 to 100 psi (6.2-6.9 bar) of air pressure with 90 psi (6.2 bar) providing the maximum efficiency. At 90 psi (6.2 bar) of air pressure, the GB714 does not exceed 81.5 dB(A) and consumes .30 SCF/cycle (8.50 L/cycle).
  • Page 5: Description Of Functions

    DESCRIPTION OF FUNCTIONS Hanger Head Cylinder Assy Pintail Deflector Actuator Handle Assy Actuator Lever Assy Air Inlet Image may not reflect actual tool. GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 6: Warnings

    (such as the deflector, pintail collection bottle or catcher bag). 7. Forcible ejection of the mandrel from the front of the nose assembly is possible. GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 7: Principle Of Operation

    Air Piston moves down Air exhaust Air exhaust Pressurized Oil Pressurized Air Unpressurized Oil Unpressurized Air Images may not reflect actual tool. GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 8: How To Set-Up The Gb714

    HEAD CYLINDER ASSY DEFLECTOR RIVET WORK RED SHIPPING PLUG USER QUICK DISCONNECT FITTING AIR INLET ACTUATOR AIR HOSE Image may not reflect actual tool GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 9: How To Use The Gb714

    #6. Repeat steps 1-5. Release actuator as soon as fastener breaks. Repeat steps 1-4. Images may not reflect actual tool or fastener GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 10: Maintenance

    WARNING: Tool must be maintained in a safe working condition at all times and examined on a daily basis for damage or wear. Any repair should be done by qualified personnel trained on Gage Bilt procedures. WARNING: Excessive contact with hydraulic oil and lubricants should be avoided.
  • Page 11: Filling And Bleeding

    If stroke doesn’t check .590" (15 mm) min. (See figures below) repeat filling and bleeding procedure until stroke met. For your consideration, Gage Bilt offers a depth gage (Pt.# A-1935) to help simplify and more accurately check your tool stroke. Please contact Gage Bilt for more information.
  • Page 12: Troubleshooting

    Selection Chart pg. 18 to select Stroke Limiter). Tighten End Cap onto tool. (See pg. 10 for torque setting). Images may not reflect actual tool GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 13: Overhaul

    Perform overhaul in a clean, well lit area using care not to scratch or nick any smooth surface that comes in contact with an o'ring. Use of Lubriplate® (Gage Bilt part no. 402723) or other lubricant is recommended during reassembly to prevent tearing or distorting of o'rings.
  • Page 14 Insert and turn 5/8” wrench and snug tight approximately 1/4-1/2 turn. Reattach pin-slotted (400608) and actuator lever assy (704343) to handle assy (744129). GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 15 Valve spring installation tool (744251) will facilitate the proper installation of the spring (744144). Valve sleeve (743144) can be pulled out using valve sleeve removal tool (744152). GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 16: Parts Lists

    PARTS LIST GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 17: Dexron® Iii Oil Safety Data (Sds)

    Use material for its intended purpose or recycle if possible. Oil collection services are available for used oil recycling or disposal. Place contaminated materials in containers and dispose of in a manner consistent with applicable regulations. GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 18: Accessories & Nose Assembly Selection Chart

    GB714 ACCESSORIES Approved for use on Gage Bilt CE installation tools and/or other manufacturer’s CE approved tools of similar design. (Sold Separately) Grip Gage #269G3 NOSE ASSEMBLY SELECTION CHART For CHERRYMAX® and CHERRYLOCK® rivets (Sold Separately) STRAIGHT *RIGHT ANGLE *OFFSET...
  • Page 19 This page intentionally left blank. GB714 INSTALLATION TOOL S/N: 1001 AND ABOVE REV. 3/21 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 20: Accessories

    Entire tool weight - 7.50 lbs. (3.4 kg) Pull load - 6,400 (28.4 kN) Pull load - 6,400 (28.4 kN) Accessories Cont. Approved for use on Gage Bilt CE installation tools and/or other manufacturer’s CE approved tools of similar design. (Sold Separately) Catcher Bag-Stem Air Bleeder Assy...
