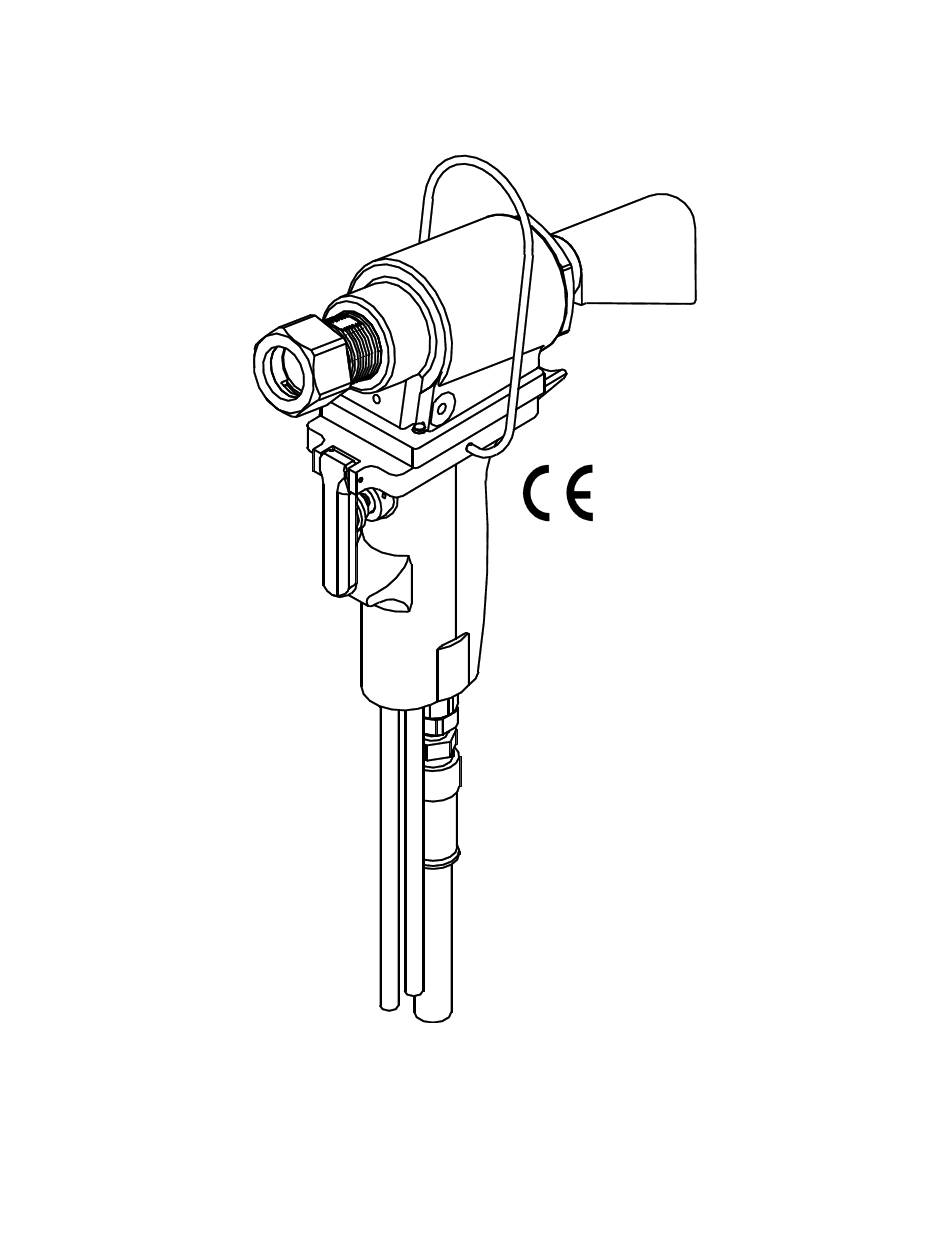

- Page 1 GB713SHA-16 INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. GAGE BILT Inc.. GAGE BILT 44766 Centre Court (586) 226-1500 Clinton Twp. MI 48038 (586) 226-1505 Fax MADE IN U.S.A. e-mail:solutions@gagebilt.com / www.gagebilt.com...
-
Page 2: Specifications
TABLE OF CONTENTS Description Page Warnings .............................. 3 Description, Operation, Maintenance and Hydraulic Thread Preparation ........4 Troubleshooting and Overhaul ......................5 Parts Lists ............................6 Nose Assembly Selection Chart ......................7 EU Conformity and Warranty ....................8 1.94 Ø (49.2mm) 7.88 1.36 Ø... -
Page 3: Safety Warnings
Any repair should be done by qualified personnel trained on Gage Bilt WARNING procedures. It is recommended tool be operated 50 out of every 60 minutes, where prolonged use is expected. -
Page 4: Operation
The handle and head assembly when held in hand weighs just 3.00 bs (1.36kg)! The GB713SHA-16 split handle riveter operates in conjunction with the GB801 and comes with 16 ft. of hose. NOSE ASSEMBLIES ARE NOT FURNISHED WITH THE TOOL AND MUST BE ORDERED SEPARATELY. -
Page 5: Troubleshooting
Perform overhaul in a clean, well lit area using care not to scratch or nick any smooth surface that comes in contact with an o’ring. Use of Lubriplate® (Gage Bilt part no. 402723) or other lubricant is recommended during reassembly to prevent tearing or distorting of o’rings. - Page 6 204304 - SWIVEL ASSEMBLY 401080 - BACK-UP RING For use with Blind Rivets smaller than 3/16" Ø 403764 - O'RING O'Ring in Polyseal must face in this direction IMPORTANT: Be sure to use thread sealant on all hydraulic fittings, Loctite® 30534 or similar Teflon®...
- Page 7 T RIVET®, CHERRYM A X® A ND M B C® A RE REGISTERED TRA DEM A RKS OF CHERRY A EROSP A CE. M ONOB OLT® A ND TLR® A RE REGISTERED TRA DEM A RKS OF A VDEL UK LIM ITED. A SP ® IS A REGISTERED TRA DEM A RK OF A LCOA INC. GAGE BILT CERTIFIES THE GB713 WILL INSTALL THE ABOVE FASTENERS PLEASE NOTE: Due to *ALL OFFSET 204 SERIES NOSES REQUIRE 751204 ADAPTER &...
- Page 8 WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING STANDARDS AND DIRECTIVES. EN12100-1 & EN12100-2 EN13849 EN792-1:2000+A1 COUNCIL DIRECTIVE: MACHINE DIRECTIVE 2006/42/EC EQUIPMENT DESCRIPTION: GB713SHA-16 FASTENER INSTALLATION TOOLS MANUFACTURER: GAGE BILT Inc. SIGNATURE: NAME: BRIAN LEIGH PRODUCT MANAGER CLINTON TWP., MI U.S.A.
