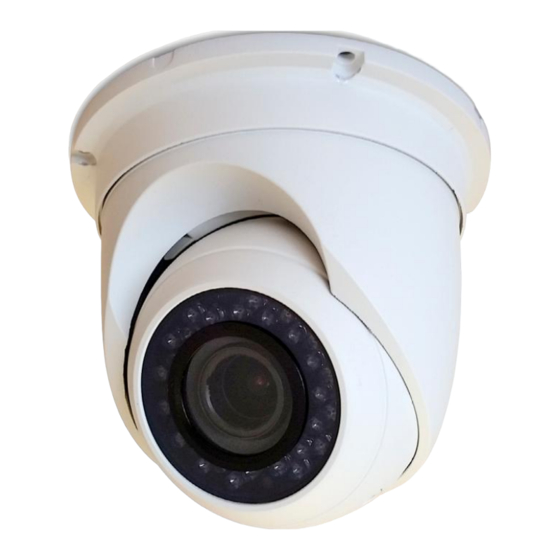

- Page 1 Installation Manual VEFED28V12MHDAW Please read this manual thoroughly before use and keep it handy for future reference.
- Page 3 Norbain SD, 210 Wharfedale Road, Winnersh Triangle, Wokingham, Berkshire RG41 5TP, England. UK +44 (0) 118 912 5000 / Vista Technical Support +44 (0) 118 912 5125 Note: You should be at the equipment and ready with details before calling Technical Support.
- Page 4 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings.
-
Page 5: Table Of Contents
Table of Contents 1 — Introduction ........................ 6 1.1 Features ..........................6 2 — Installation and Configuration ................... 7 2.1 Package Contents ....................... 7 2.2 Camera Overview ........................ 7 2.3 Connections ......................... 8 2.4 Basic Installation ......................... 8 2.5 OSD Menu Structure ......................9 3 —... -
Page 6: Introduction
1 — Introduction 1.1 Features 1/2.9” Sony 2.2MP Exmor CMOS 1080p in TVI and AHD, 1000TVL in CVBS 2.8-12mm motorized lens (controlled via coax telemetry only) Pan 357 & Tilt 100 motorized for simple set up (controlled via coax telemetry only) 1.0Lux (colour), 0Lux (mono –... -
Page 7: Installation And Configuration
2 — Installation and Configuration 2.1 Package Contents Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the camera and its accessories from the carton and verify that they were not damaged in shipment. -
Page 8: Connections
2.3 Connections 1. 2.1mm jack plug for 12VDC 2. BNC output NOTES: The camera is only able to output one signal at a time. To gain access to the camera OSD and lens set up, please refer to your DVR manual for the correct coax telemetry, for TVI select TVI / Hik-C. -
Page 9: Osd Menu Structure
2.5 OSD Menu Structure SETUP MENU LENS EXPOSURE LENS EXPOSURE BACKLIGHT WHITE BAL SHUTTER DAY&NIGHT MANUAL IMAGE SENS-UP FUNCTION BRIGHTNESS SYSTEM DWDR DEFOG EXIT BACKLIGHT WHITE BAL DAY&NIGHT AUTO AWC->SET COLOUR HSBLC INDOOR B&W OUTDOOR MANUAL IMAGE FUNCTION SYSTEM SHARPNESS CAM TITLE AF MODE MOTION... -
Page 10: Osd Menu
3 — OSD Menu 3.1 Lens DC / Manual Mode: Indoor / Outdoor Outdoor: Min Shutter: 1/25 Max Shutter: 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000 Iris Speed: 1 to 15 Manual: Opens up Shutter in Exposure menu 3.2 Exposure SHUTTER (Only if lens in Manual mode): Auto, 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000, x2, x4, x6, x8, x10, x15, x20, x25,... -
Page 11: White Balance
Night: AGC Level: 0 to 255 Default: Defaults HSBLC settings 3.4 White Balance AWB, ATW, AWC->SET, Indoor, Outdoor, Manual AWC->SET: Push enter button to set the colour balance MANUAL: Blue: 0 to 100 Red: 0 to 100 3.5 Day&Night AUTO, COLOUR, B/W, AUTO: D>N (AGC): 1 to 240 D>N (Delay): 0 to 60... -
Page 12: Function
3.7 Function DNR: 2DNR: Off, Low, Middle, High 3DNR: Off, Low, Middle, High End AGC: 0 to 255 MOTION: Off / On Select: Area1, Area2, Area3, Area4 Display: Off / On On: Use up, down, left, right buttons to adjust both position and size of area Sensitivity: 0 to 100 Colour: Green, Blue, White, Red Transparency: 0.00, 0.25, 0.75, 1.00... -
Page 13: System
3.8 System CAM TITLE: 15 alpha-numeric characters MONITOR: LCD: Black Level: 0 to 60 Gamma: User, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.00 Blue Gain: 0 to 100 Red Gain: 0 to 100 CRT: Black Level: 0 to 60 Blue Gain: 0 to 100 Red Gain: 0 to 100 VIDEO OUT: PAL / NTSC... -
Page 14: Specifications
4 — Specifications 4.1 Technical Specification Model VEFED28V12MHDA Resolution 1080p (TVI/AHD) / 1000TVL (CVBS) 1/2.9″ Sony CMOS Image sensor Operation True Day Night Effective 1920 (H) x 1080 (V) pixels Scanning PAL: 15.625KHz(H) x 50Hz(V) Freq. Sync. system Internal 1.0Vp-p (75Ω, composite) Video output S/N Ratio More than 50dB (AGC off) -
Page 15: Line Drawing / Dimensions
4.2 Line Drawing / Dimensions All dimensions are in mm 5 — Warranty This camera is subject to the warranty conditions valid at the time of purchase. The exception to this and not covered by warranty is: Powering up the camera with the transit tape applied to the tilt mechanism – this must be removed prior to powering the camera up otherwise damage will occur to the motors. - Page 16 Vista 210 Wharfedale Road Winnersh Triangle Wokingham Berkshire. RG41 5TP (Subject to change without notice) Version 1.0...
