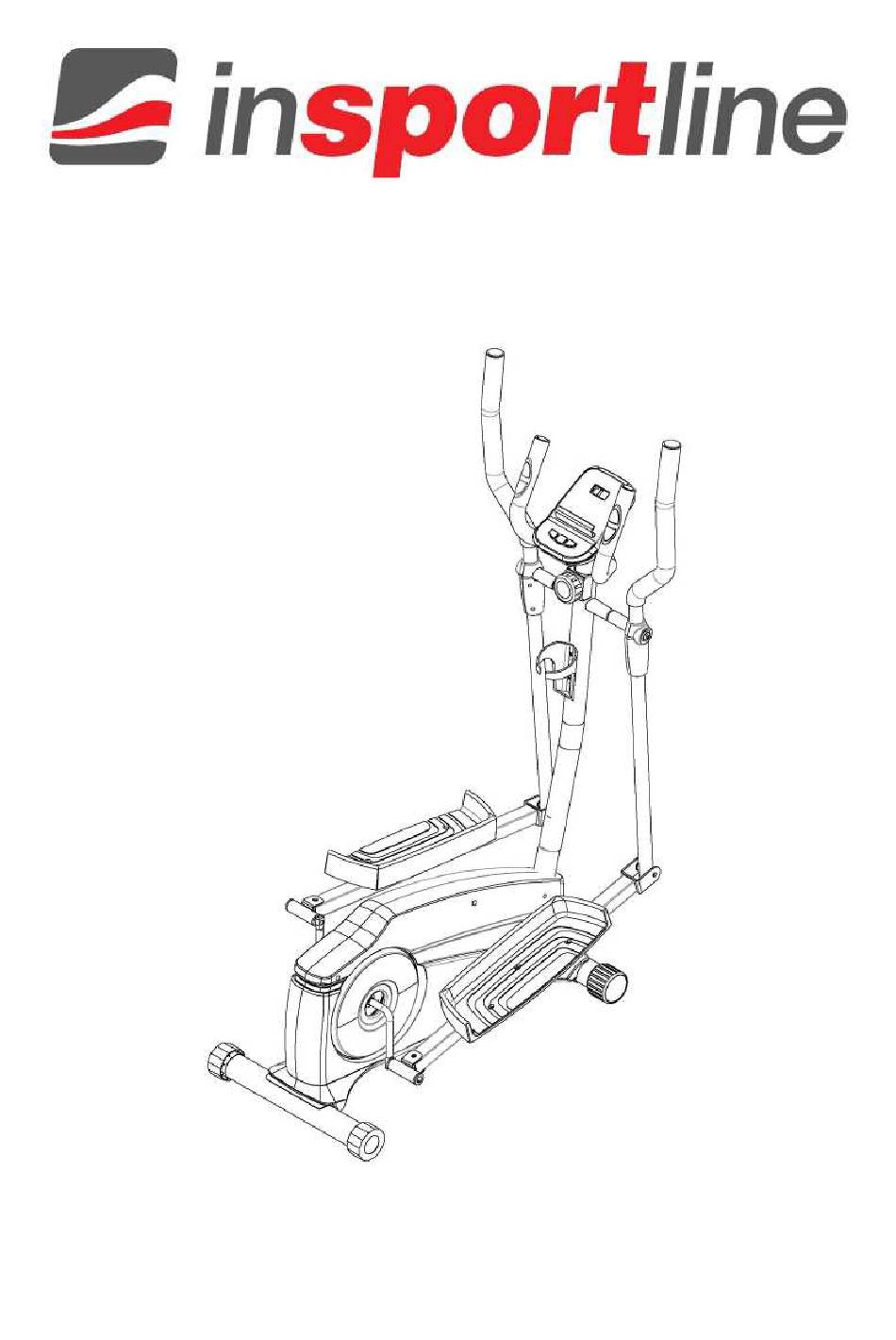

- Page 1 USER MANUAL – EN IN 10894 Elliptical Trainer inSPORTline inCondi ET30m...
-
Page 2: Table Of Contents
CONTENTS SAFETY FUNCTION ..........................3 HARDWARE AND TOOLS ........................4 EXPLODED VIEW (A) ..........................5 EXPLODED VIEW (B) ..........................6 PARTS LIST ............................7 ASSEMBLY ............................. 8 HOW TO MOVE THE ELLIPTICAL ....................... 13 HOW TO ADJUST THE RESISTANCE ....................13 HOW TO LEVEL THE ELLIPTICAL ...................... -
Page 3: Safety Function
PREFACE Let’s start a fearless adventure in knowing what to do when no one’s there telling you what to do. BUT Before that please read the following. SAFETY FUNCTION This exerciser is made for home use only, and tested up to a max body weight of 120kg. 1. -
Page 4: Hardware And Tools
HARDWARE AND TOOLS Please check if any part is missing. • Please assemble all the screws first. • After everything fixed, then make sure they’re firmly enough. •... -
Page 5: Exploded View (A)
EXPLODED VIEW (A) -
Page 6: Exploded View (B)
EXPLODED VIEW (B) -
Page 7: Parts List
PARTS LIST... -
Page 8: Assembly
ASSEMBLY STEP 1 The Assembly would be easier with following tools: Philips Screwdriver, Adjustable Wrench, Pliers While a second person lifts the front of the Frame (1), attach the Front Stabilizer (10) to the Frame with two M8 x 80mm Button Screws (51), two M8 Split Washers (63), and two M8 Washers (55). - Page 9 STEP 2 Insert the Resistance Cable (25) through the Upright (2) as shown. Then, attach the Resistance Control (25) to the Upright with an M5 x 20mm Screw (76) and an M5 Washer (77). While a second person holds the upright (2) near the Frame (1), connect the Wire Harness (31) to the Reed Switch Wire (47).
- Page 10 STEP 5 Attach the Water Bottle Holder (69) to the Upright (2) with two ST4.2 x 20mm Self-tapping Screws (68) and two M4 Washers (71). Identify the Right Upper Body Arm (6), which is marked with a sticker, and orient it as shown. Next, orient an Upper Body Leg (64) so that the hexagonal holes are on the side shown.
- Page 11 Next, orient an Upright Spacer (26) as shown. Slide the Inner Cover (22) and the Right Upper Body Arm (6) onto the right axle on the Upright (2). Attach the Right Upper Body Arm (6) with an M8 x 20mm Socket Screw (57), an M8 Split Washer (63), an M8 Large Washer (72), and a Plastic Washer (27) as shown.
- Page 12 STEP 8 Apply grease to an M10 x 70mm Bolt (60). Attach the Right Pedal Arm (12) to the right Upper Body Leg (64) with the M10 x 70mm Bolt (60), two M10 Special Washers (80), two M10 Split Washers (78), two M10 Washers (62), two Nylon Washers (73), and an M10 Locknut (53) as shown.
-
Page 13: How To Move The Elliptical
HOW TO MOVE THE ELLIPTICAL To move the elliptical, first stand in front of the elliptical, hold the upright, and place one foot against one of the wheels. Next, pull the upright until the elliptical rolls on the wheels. Carefully move the elliptical to the desired position, and then lower it to the floor. -
Page 14: Console Instructions
CONSOLE INSTRUCTIONS DISPLAY FUNCTION SCAN The sequence of display: TMR→SPD→ DST→CAL→ODO→PULSE In SCAN mode, press MODE key to choose other functions. • Automatically scan through each mode in sequence every 6 seconds. • SPEED (SPD) W/O any signal been transmitted into the monitor for 4 seconds, SPEED will display “0.0” •... - Page 15 Range 0.0~9999 Cals • Calorie count on the display only serves as a general guideline. For detail calorie consumption • for each individual please consult a physician or a nutritionist. Accumulates total workout distance. This data can be reset to zero when batteries are •...
-
Page 16: Ibiking+ Instructions
Drawing A Drawing B Drawing C Drawing D Note: 1. Compatible with iOS and Android system. 2. Console and mobile device connection via Tunelinc, once connecting, the display will be off. 3. Stop training for 4 minutes, the main screen will be off. 4. - Page 17 STARTING iBIKING+ Step 1 Step 2 Step 3 Entering the App Press “Tunelinc” icon Successful connection: • • • again to confirm Press “Tunelinc” icon • Connection not success • yet: MAIN FUNCTION OF iBIKING+ The main functions of iBiking+ are: 1. training 2. gym center 3. setting 4. information TRAINING The main function of training are: 1.
- Page 18 Main layout Workout summary Share layout After starting exercise user can press pause from console control to stop any time. • When finish, the workout summary can post on Facebook, Twitter, Weibo. • You can setting 2 values: 1. heart rate 2.time Main layout: *1 „x“...
- Page 19 2. My favorite There are five default routes in my favorites. User selected route can save in my favorites. Main layout: Choose vision mode Shows elevation and length of shows the exercise information: the route time, distance, calories, speed, rpm, heart rate 3.
- Page 20 Step 3 Step 4 Press „MapMyFitness“ Use the route database from MapMyFitness SETTING Log in by user’s Google/ Facebook account or create a new account. INFORMATION All the workout histories show up.
-
Page 21: Fat Burning
Note: 1. Without receiving any reply comment of communications protocol, the APP would continue sending signal and wait for acknowledging. And over 15 seconds the Tunelinc would off line, and user needs to reset (such as: phone, message, or any sound disturbance comes in. In 15 seconds the connection would continue but if over 15 seconds, user needs to reset.) 2. -
Page 22: Terms And Conditions Of Warranty, Warranty Claims
Pulse rate chart: SUCCESS Even after a short period of regular exercises you will realize that you constantly have to increase the pedaling resistance to reach your optimum pulse rate. The units will be continuously easier and you will feel a lot fitter during your normal day. For this achievement you should motivate yourself to exercise regularly. - Page 23 “The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the purpose of using the Goods or services for his own business activities. The Buyer conforms to the General Purchase Agreement and business conditions to the extent specified in the Commercial Code.
