Mounting

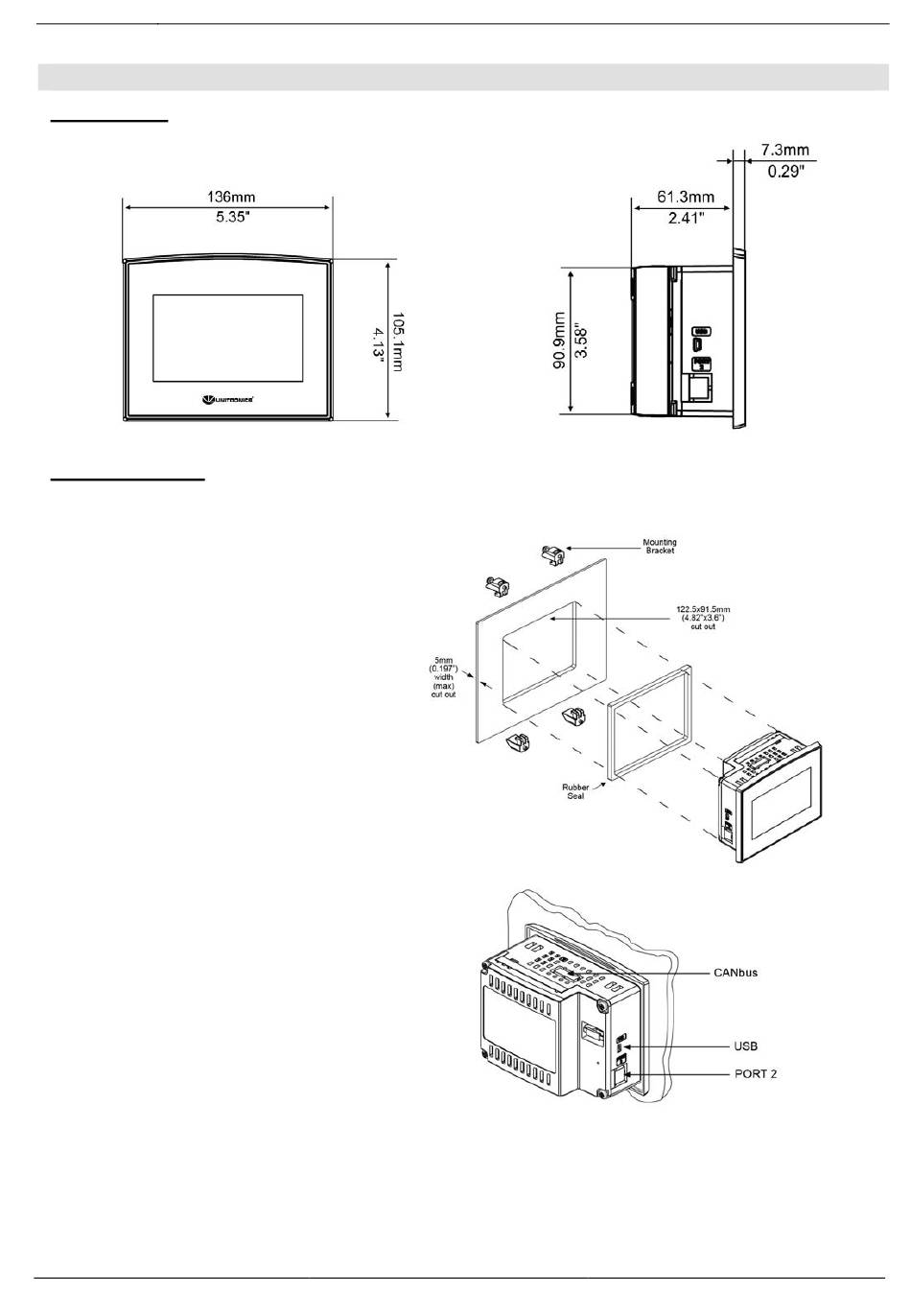

Dimensions
Panel Mounting
Before you begin, note that the mounting panel cannot be more than 5 mm thick.
1. Make a panel cut-out
measuring 122.5x91.5 mm
(4.82"x3.6").
2. Slide the controller into the cut-
out, ensuring that the rubber
seal is in place.
3. Push the mounting brackets into
their slots on the sides of the
panel as shown in the figure to
the right.
4. Tighten the bracket's screws
against the panel. Hold the
bracket securely against the unit
while tightening the screw.
5. When properly mounted, the
controller is squarely situated in
the panel cut-out as shown in
the figure to the right.
