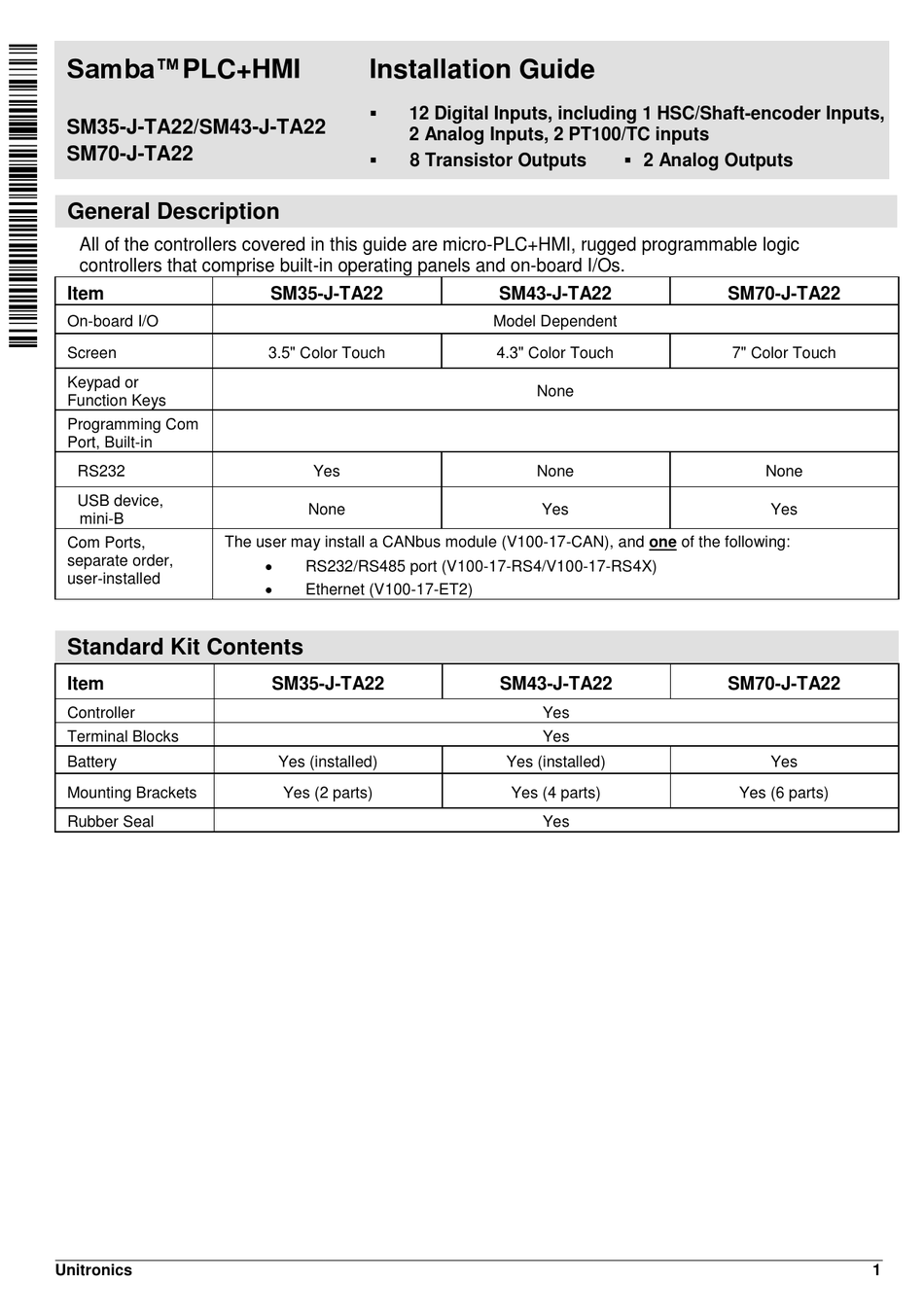

Samba™PLC+HMI
SM35-J-TA22/SM43-J-TA22
SM70-J-TA22
General Description
All of the controllers covered in this guide are micro-PLC+HMI, rugged programmable logic
controllers that comprise built-in operating panels and on-board I/Os.
Item
On-board I/O
Screen
Keypad or
Function Keys
Programming Com
Port, Built-in
RS232
USB device,
mini-B
Com Ports,
The user may install a CANbus module (V100-17-CAN), and one of the following:
separate order,
user-installed
Standard Kit Contents
Item
Controller
Terminal Blocks
Battery
Mounting Brackets
Rubber Seal
Unitronics
Installation Guide
12 Digital Inputs, including 1 HSC/Shaft-encoder Inputs,
2 Analog Inputs, 2 PT100/TC inputs
8 Transistor Outputs
SM35-J-TA22
3.5" Color Touch
Yes
None
RS232/RS485 port (V100-17-RS4/V100-17-RS4X)
Ethernet (V100-17-ET2)
SM35-J-TA22
Yes (installed)
Yes (2 parts)
 2 Analog Outputs
SM43-J-TA22
Model Dependent
4.3" Color Touch
None
None
Yes
SM43-J-TA22
Yes
Yes
Yes (installed)
Yes (4 parts)
Yes
SM70-J-TA22
7" Color Touch
None
Yes
SM70-J-TA22
Yes
Yes (6 parts)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Samba SM70-J-TA22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Unitronics Samba SM70-J-TA22

  • Page 1 The user may install a CANbus module (V100-17-CAN), and one of the following: separate order,  RS232/RS485 port (V100-17-RS4/V100-17-RS4X) user-installed  Ethernet (V100-17-ET2) Standard Kit Contents Item SM35-J-TA22 SM43-J-TA22 SM70-J-TA22 Controller Terminal Blocks Battery Yes (installed) Yes (installed) Mounting Brackets Yes (2 parts) Yes (4 parts) Yes (6 parts) Rubber Seal Unitronics...
  • Page 2: Alert Symbols And General Restrictions

     All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics accepts no responsibility for actual use of this product based on these examples.  Please dispose of this product according to local and national standards and regulations.
  • Page 3 3. Push the mounting brackets into their slots on the sides of the panel as shown in the figure below. 4. Tighten the bracket’s screws against the panel. Hold the bracket securely against the unit while tightening the screw. 5. When properly mounted, the controller is squarely situated in the panel cut-out as shown in the accompanying figures. Unitronics...
  • Page 4 Samba™ PLC+ HMI Installation Guide SM35 SM43 SM70 Unitronics...
  • Page 5 - If input 0 is set as a high-speed counter (without reset), input 1 can function as a normal digital input. Inputs 7-8 and 9-10 can function as digital, thermocouple, or PT100 inputs; Input 11 can also serve as the CM signal for PT100. Unitronics...
  • Page 6 Analog Output 0: Set to Voltage/Current Set to JP13 Digital* Voltage Voltage* Current Current Input 6: Set Type - Digital or Analog #2 Set to Analog Output 1: Set to Voltage/Current Digital* Set to JP14 Voltage Voltage* Current Current *Default settings Unitronics...
  • Page 7 Samba™ PLC+ HMI I/O Wiring npn (sink) Input Input wiring HSC input wiring pnp (source) Input Input wiring HSC input wiring Shaft-encoder Unitronics...
  • Page 8 +White  Thermocouple 1: use Input 7 as (32 to 3214˚F) -Red -Blue negative input and 8 as positive. 0 to 1768˚C +Black +White (32 to 3214˚F) -Red -Blue -200 to 400˚C +Blue +White (-328 to 752˚F) -Red -Blue Unitronics...
  • Page 9: Power Supply

     Do not connect either the ‘Neutral’ or ‘Line’ signal of the 110/220VAC to device’s 0V pin  In the event of voltage fluctuations or non- conformity to voltage power supply specifications, connect the device to a regulated power supply. Unitronics...
  • Page 10: Communication Port

     Avoid touching the PCB board directly. Hold the PCB board by its connectors. 1. Turn off the power supply, disconnects, and dismounts the controller. 2. The back cover of the controller comprises 4 screws, located in the corners. Remove the screws, and pull off the back cover. Unitronics...
  • Page 11 Samba™ PLC+ HMI Changing I/O Settings The I/O board of the controller is now exposed, enabling you to change I/O settings (module dependent) according to the jumpers setting above. Note: Photo is for illustration purposes only. (Using SM70) Closing the Controller Replace the back cover of the controller and fasten the corner screws.
