Installation Guide
Inserting the Battery
i4 Automation Ltd - 01480 395256
In order to preserve data in case of power-off, you must insert the battery.
The battery is supplied taped to the battery cover on the rear of the controller.
1. Remove the battery cover shown on page 4. The polarity (+) is marked on the battery holder and
on the battery.
2. Insert the battery, ensuring that the polarity symbol on the battery is:
- facing up
- aligned with the symbol on the holder
3. Replace the battery cover.
Mounting

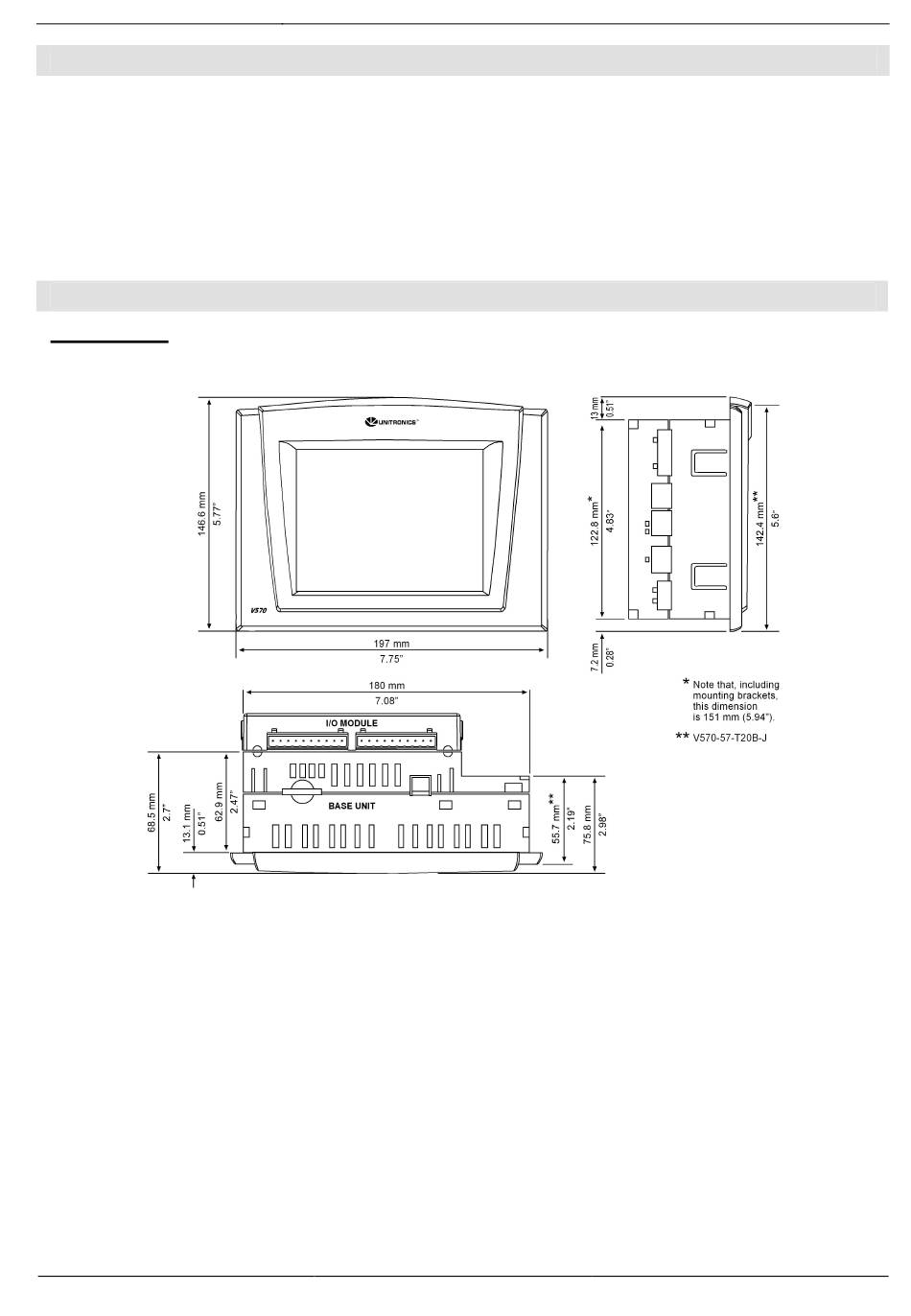

Dimensions
Note that the LCD screen may have a single pixel that is permanently either black or white.
