3) Installation:

3.1 Notes of Motors in Operation

The PL600H/PL1000H gate openers are applicable to per gate leaf of 600/1000 kg in weight for residential use;
where the performance shall be influenced by the factors such as gate dimension, weight and climate that the driven
torque is necessarily to be adjusted properly.

3.1.1 Tools in Installing

Please make sure all tools and cables are ready and conform to the industrial safety standard before installation.

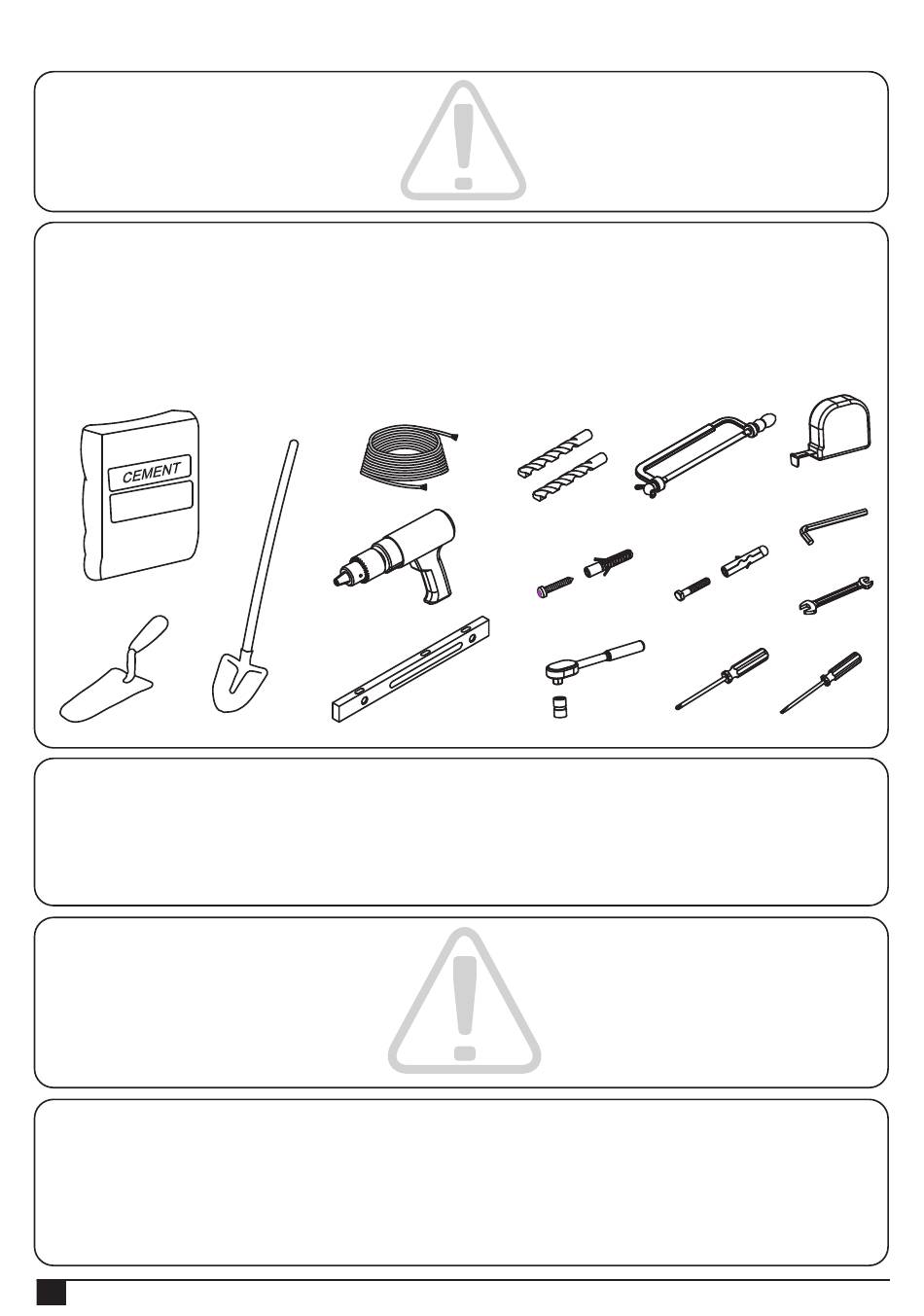

Please refer to Figure 10.
Figure 10

3.1.2 Motors, Components and Its Installation in Illustration

The installation procedure of PL600H/PL1000H may be changed due to various accessories and quantities installed.
No wiring cables for accessories are supplied with KIT PL600H/PL1000H.

3.2 Power Connection

The users are advised to read the installation manual carefully before going for it. After getting to know all accessories
and their positions, suggest starting from cable conduit arrangement to prevent the cables from being broken or
damaged.

3.2.1 Notes for Power Connection

1).The installation of power supply cable to the motor should be implemented by a qualified professional electrician.
2).The power supply cable of the motor should be equipped with short circuit protection and leakage protection.
Please make sure to shut off the power before going installation or maintenance.
6
INSTRUCTIONS PL600H/PL1000H
