2.3 Installation

2.3.1 Preparation for Motor Installation
PW320/PW330 is not applicable to a gate which is inefficient or unsafe, neither to solve the defects due to incorrect
installation nor poor maintenance.
Check the following items before going for installation:
1). Make sure the weight and dimensions of the gate conform to the operation range of PW320/PW330. Don't use
PW320/PW330 if the gate specifications do not meet the requirements.
2). Make sure the gate structure conform to the criteria of automatic operation and force regulations.
3). Make sure there is no serious friction existing in the opening or closing travel of the gate leaves.
4). Make sure the gate is at horizontal level that the gate will not move aside at any position.
5). Make sure the gate can bear the impact of the motor torque when it is installed on any hole of the bracket which
the surface is sufficiently sturdy.
6). Make sure the photo sensors are installed on flat surfaces to ensure the two ends of receiving and transmitting
corresponded to each other.

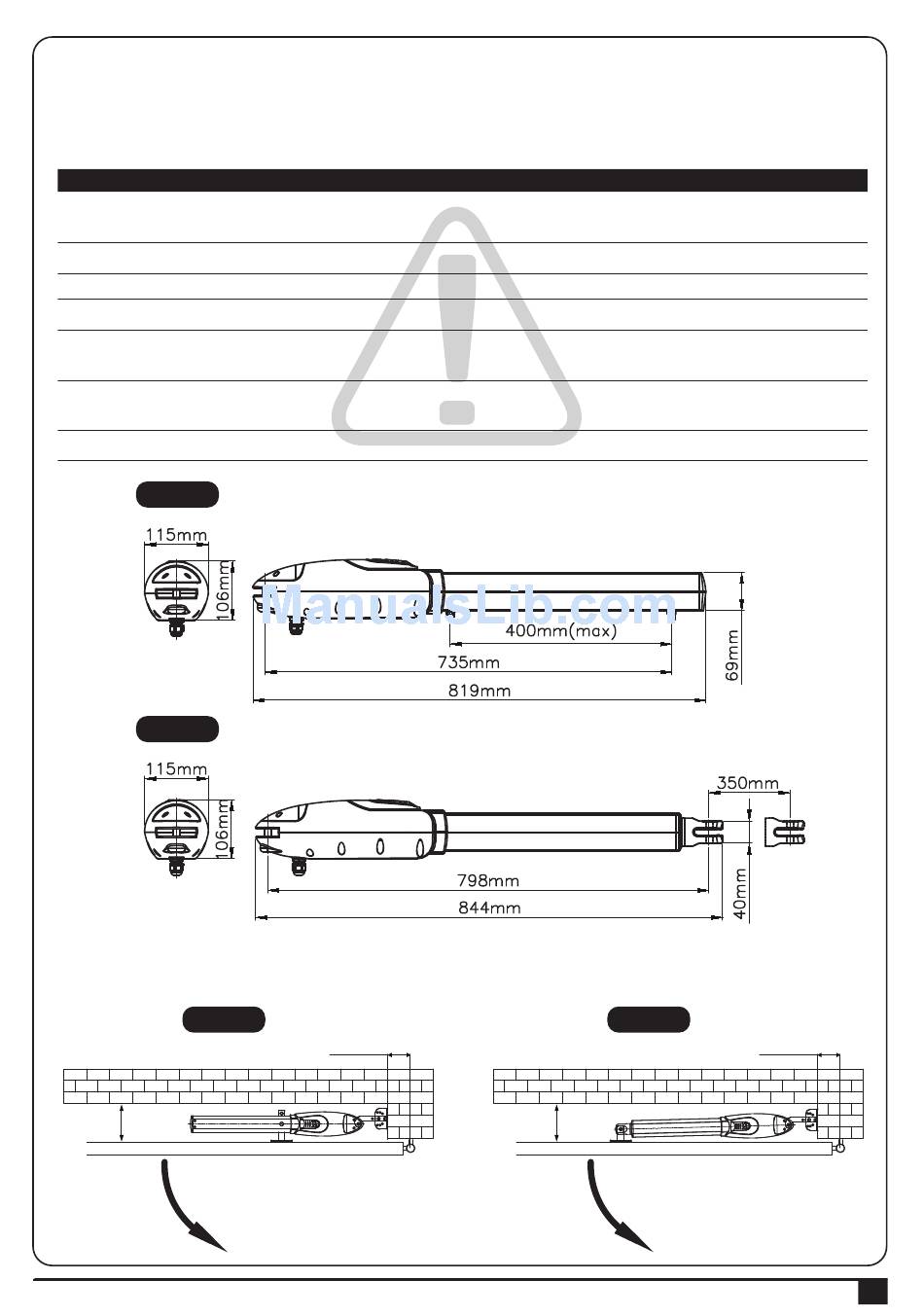

7). Check the dimensions of the motors as below.
PW320
PW330
8). Make sure to leave enough space when the gate is opening.
PW320
Min
150mm
Figure 13
Figure 14 (Aerial View)
150mm(Max)
PW330
Min
150mm
INSTRUCTIONS PW320/PW330
150mm(Max)
7
