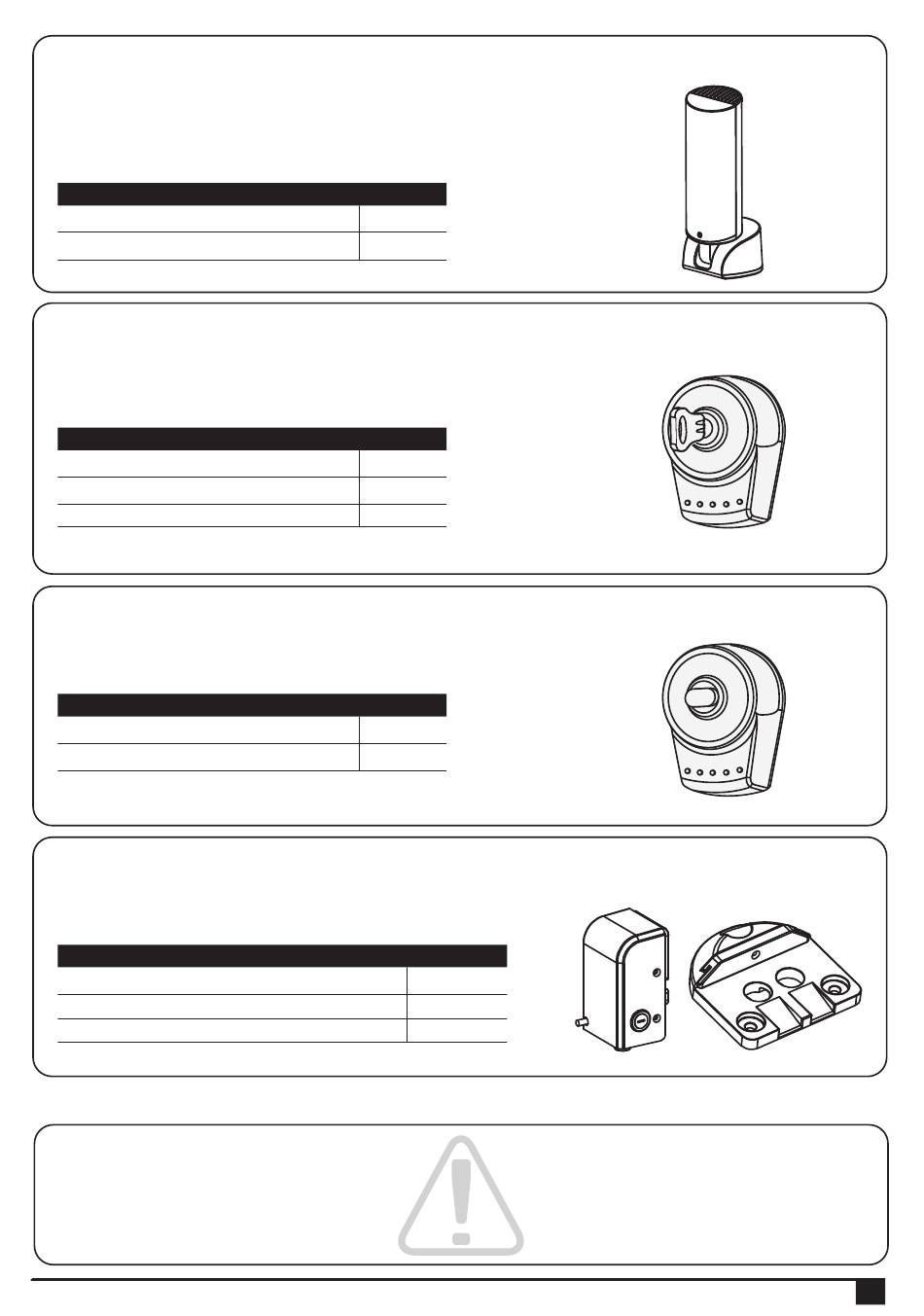

1.3.5 PF-1 Flashing Light

PF-1 flashing light is controlled by control box and blinks
when the gate is moving. The flashing light stops
blinking when the gates finish opening or closing.
Table 2: List of small parts for PF-1
3*20 Screw
Nylon screw anchor

1.3.6 PKS-1 Key selector

The PKS-1 key selector is used for opening the gate
outdoors without the radio transmitter. PKS-1 key
selector is supplied with two keys
Table 3: List of small parts for PKS-1
3*20 Screw
Nylon screw anchor
Keys

1.3.7 PPB-1 Push Button

The PPB-1 push button is used for opening the gate
indoors without the radio transmitter.
Table 4: List of small parts for PPB-1
3*20 Screw
Nylon screw anchor
1.3.8 PEL-1 Electric Latch and PS-1 Stopper
PEL-1 electric latch is used to lock the gate and it has to be used
with PS-1 stopper and installed on the master gate.
Table 6: List of small parts for PEL-1 and PS-1
M8*25L hex bolt
M8 self-locking nut
Key

2) Installation:

2.1 Notes of Motors in Operation
The PW320/PW330/PW330L gate openers are applicable to per leaf of 3.0/4.0/5.0 meters in width and 250/350/500 kg in
weight which can be opened up to 120 degrees primarily for residential use; where the performance shall be influenced by
the factors such as gate dimension, weight and climate that the driven torque is necessarily to be adjusted properly.
Quantity
3 pcs
3 pcs
Quantity
3 pcs
3 pcs
2 pcs
Quantity
3 pcs
3 pcs
Quantity
3 pcs
3 pcs
2 pcs
INSTRUCTIONS PW320/PW330/PW330L
Figure 7
Figure 8
Figure 9
Figure 10
