MicroNet SP624EA Quick Installation Manual

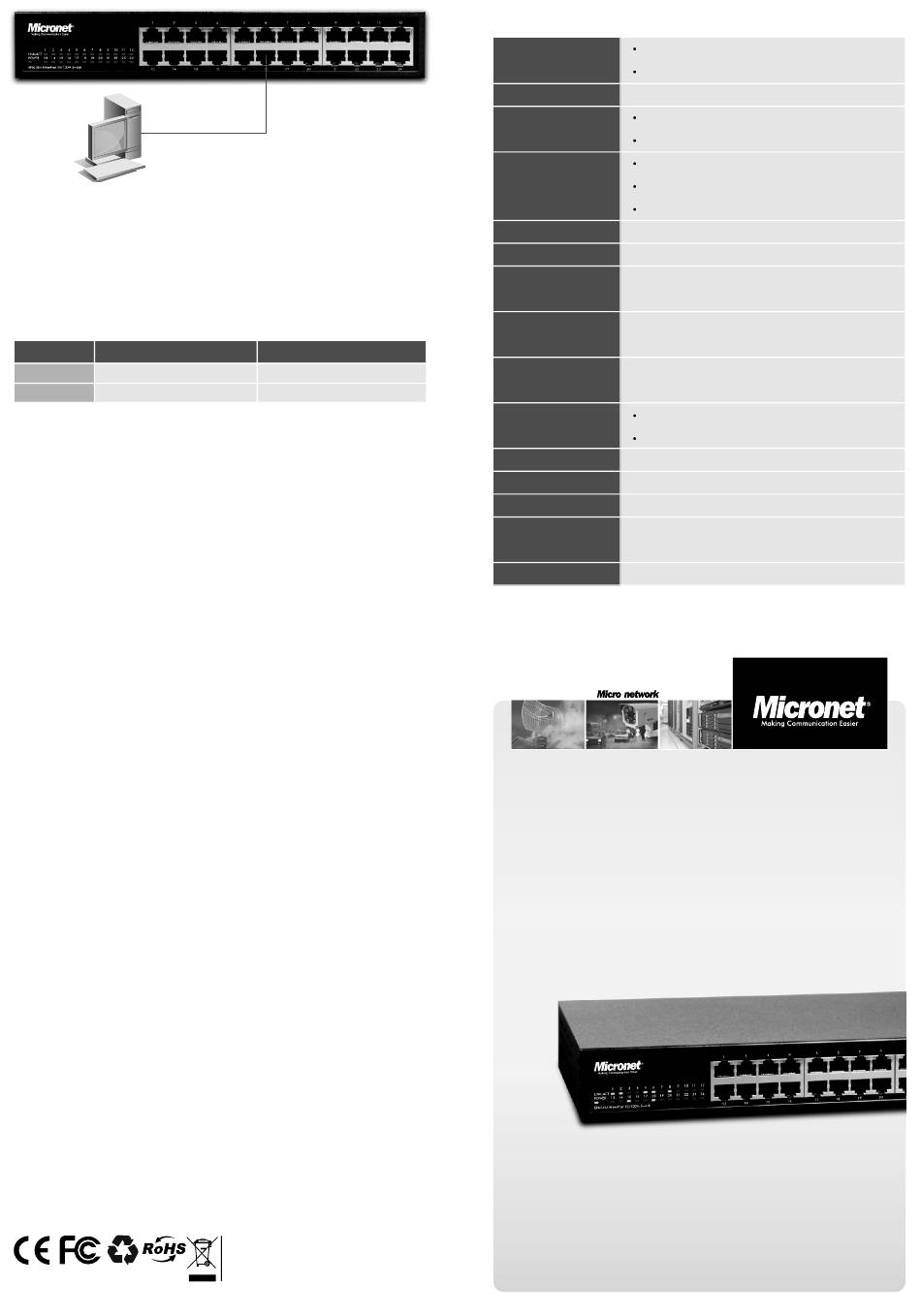

RJ-45 Connector
Please refer to the LED Indicator Specifications. The Link/Act LEDs
for each port lights green when the link is available.
For cable selection, refer to the following table:
Network SpeedCable Type
10M Cat. 3,4,5,5e UTP/STP
100M
Cat. 5,5e UTP/STP
Note: To prevent costly equipment damage and downtime, please
Note: consider installing a surge suppression device or a UPS
Note: (Un-interrupted Power Supply).
FCC Certifications
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and
radiates radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to
correct the interference at own expense. This device complies with
Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received; including
interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to
electromagnetic compatibility of the essential protection
requirement of Council Directive 89/336/EEC on the approximation
of the laws of the Member States. Company has an on-going policy
of upgrading its products and it may be possible that information in
this document is not up-to-date. Please check with your local
distributors for the latest information. No part of this document can
be copied or reproduced in any form without written consent from
the company.
P/N 2300-0665
Max. Length
100 meters
100 meters
5
WEEE Directive & Product Disposal
At the end its serviceable life ,this product should not be
treated as household or general waste. It should be
handed over to the applicable collection point for the
recycling of electrical and electronic equipment, or
returned to the supplier for disposal.
7
Specification
Standards IEEE802.3, IEEE802.3u
IEEE802.3x flow control
Interface
24 RJ-45 ports (10/100Mbps)
Cable Connection 10BASE-T : Category 3, 4, 5, 5e UTP/STP
100BASE-TX : Category 5, 5e UTP/STP
Network Speed
10/100Mbps
Half/Full Duplex
Auto Detection
Uplink
Auto uplink (MDI/MDI-X)
Buffer Memory 1.75Mb
Backplane 4.8 Gbps
Bandwidth
MAC Address 8K entries
Table
Transmission Fast store-and-forward
Method
Filtering/ 10M: 14,880pps/14,880pps
Forwarding Rate 100M: 148,800pps/148,800pps
Emission FCC, CE
Humidity
10 ~ 90% (Non-Condensing)
Temperature
Operation: 0 ~ 40 C, Storage: -20 C ~ 70 C
Power
3.5 Watts
Consumption
Power Supply
100 ~ 240V AC
Communicate via
Quick Installation Guide

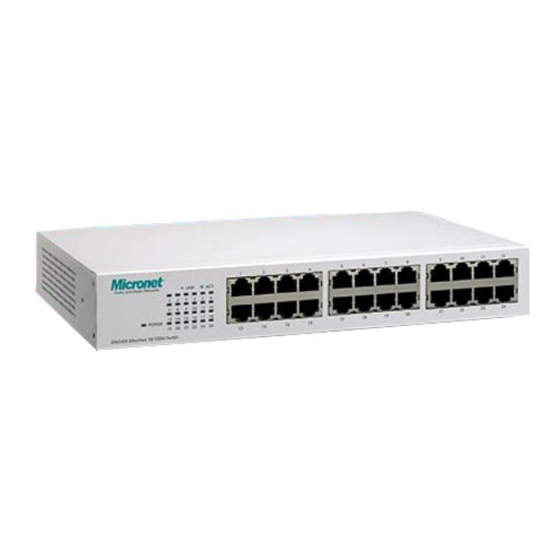

EtherFast 10/100M Switch
Model No.: SP624EA
O O
6
