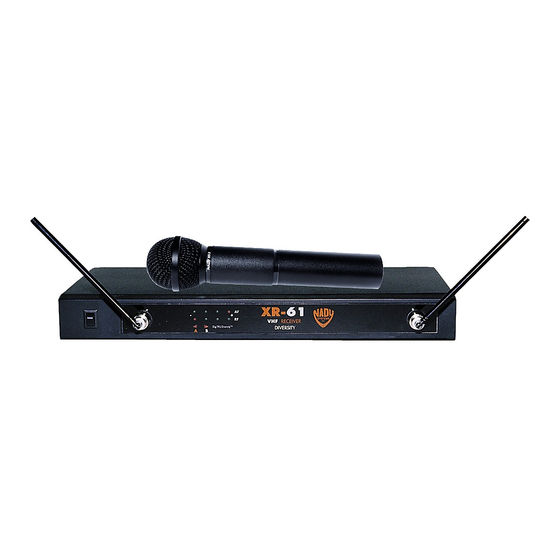

NADY XR-61
VHF DigiTRU Diversity™ System
XR PRO SERIES
WIRELESS MICROPHONE SYSTEM
OWNER'S MANUAL
Advertisement
Table of Contents
Related Manuals for Nady Systems XR-61
Summary of Contents for Nady Systems XR-61
- Page 1 (2) this device must accept any interference received, including interference that may cause undesired operation. NADY SYSTEMS, INC. • 6701 SHELLMOUND STREET, EMERYVILLE, CA 94608 Tel: 510.652.2411 • Fax: 510.652.5075 • www.nadywireless.com NADY XR-61 VHF DigiTRU Diversity™...
-
Page 2: Table Of Contents
CONTENTS CONTENTS ...2 INTRODUCTION ...3 SYSTEM FEATURES...4 OPERATION ...5 XR-61 RECEIVER ...5 WHT-15 HANDHELD MICROPHONE TRANSMITTER ...8 WLT-15 LAVALIER/LAPEL OR HEADWORN MICROPHONE BODYPACK TRANSMITTER ...10 WGT-15 INSTRUMENT BODYPACK TRANSMITTER...12 LINK 2™ PLUG-IN TRANSMITTER...14 SPECIFICATIONS ...17 SERVICE ...18... -
Page 3: Introduction
This manual will first list the features of the XR-61 Pro Series System and then will take you step by step in explaining how to operate your new system. After reading the receiver instructions, turn to the section of the booklet that covers the type of transmitter used with your new system. -
Page 4: System Features
RF and AF 5-LED displays for monitoring incoming signal strength and audio level • Convenient, front mounted recessed antenna jacks for either onboard or remote antennas • Balanced microphone level XLR output and 1/4” adjustable line level output for maximum versatility • Easy access volume control for adjustable audio output •... -
Page 5: Operation
XR-61 RECEIVER 1. Rackmounting the Receiver The XR-61 receiver is supplied with RACK EARS (1) which can be attached with the screws provided on the front of the side panels to enable rackmounting the receiver. (Note: Do not mount the receiver in a rack directly above an amplifier or other source of high heat-this could degrade the performance of the XR-61/62. - Page 6 Microphone Connection section of the above XR-61 receiver instructions. The AF LEVEL LED DISPLAY (13) on the XR-61 receiver will light up to 5 LEDs (4 green and 1 red) for all input signals. Occasional flickering on and off during use of the top red LED indicator in this display is normal, however if the red LED stays on continuously, it means the signal is too loud and there is the possibility of overload distortion.
- Page 7 Link 2. If you have any questions, please con- tact your Nady dealer or Nady Systems’ Customer Service Department. Note: the pin assignments on The Link 2’s XLR connector are as shown:...
-
Page 8: Wht-15 Handheld Microphone Transmitter
Microphone Connection section of the above XR-61 receiver instructions. The AF LEVEL LED DISPLAY (13) on the XR-61 receiver will light up to 5 LEDs (4 green and 1 red) for all input signals. Occasional flickering on and off during use of the top red LED indicator in this display is normal, however if the red LED stays on continuously, it means the signal is too loud and there is the possibility of overload distortion. -
Page 9: Wgt-15 Instrument Bodypack Transmitter
3. The WGT-15 transmitter is now ready to use. The A and/or B DIVERSITY LED INDICA- TORS (8) and most or all of the RF DISPLAY LEDs (9) on the XR-61 receiver should now be lit, indicating a received signal from the transmitter. Adjust the volume of the receiver as per the Audio Output Instrument Connections section of the above XR-61 receiver instructions. -
Page 10: Wlt-15 Lavalier/Lapel Or Headworn Microphone Bodypack Transmitter
Microphone Connection section of the above XR-61 receiver instructions. The AF LEVEL LED DISPLAY (13) on the XR-61 receiver will light up to 5 LEDs (4 green and 1 red) for all input signals. Occasional flickering on and off during use of the top red LED indicator in this display is normal, however if the red LED stays on continuously, it means the signal is too loud and there is the possibility of overload distortion.
