Summary of Contents for Crestron CT-3000
-
Page 3: Table Of Contents
Workshop Versus SIMPL Windows... 15 Problem Solving... 19 Troubleshooting ... 19 Further Inquiries ... 20 Syntax ... 20 Return and Warranty Policies... 21 Merchandise Returns / Repair Service ... 21 CRESTRON Limited Warranty ... 21 Operations Guide - DOC. 8094B CRESTRON Contents... -

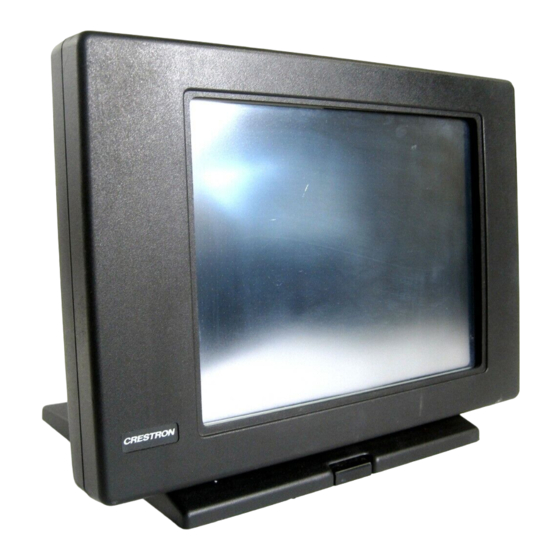

Page 5: Series 3000 Touchpanels
CRESNET II or an RS-232 based control system. The touchpanel is capable of replacing large, complicated panels with a series of simpler screens, each specific to the control problem at hand. Thus, very large numbers of functions can be made available to the user without the confusion associated with hardware panels of that complexity. - Page 6 CRESNET II system. The project is uploaded to the touchpanel and programmed (software@crestron.com). Do into the flash PROM. The touchpanel uses the programmed project until another set not forward any queries to is uploaded from the PC. The PC may be disconnected from the rack or panel this address.
-
Page 7: Physical Description
Feature Buttons ColorTouch and BriteTouch configurations with the letter “B” in their suffix have seven feature buttons located to the left of the touchpanel screen. The buttons are identified with numbers one through seven from top to bottom. These buttons are hard-coded join numbers that serve as “hot keys”... - Page 8 CN-RJ11 (supplied). Pinout information is provided in this section of the Operations Guide. If the assembly must be mutilated in any way, Crestron cannot guarantee the behavior of the touchpanel. The product may not function accordingly, as stated in this Operations Guide.
-
Page 9: Configuration Differences
CT- or LC-, and one of six suffixes, no suffix, B, BL, L, /1M, and L/1M. The CT- or LC- prefix identifies the touchpanel as having either a 256 color display or a 256 grayscale display, respectively. No suffix indicates an adjustable tiltcase configuration;... -
Page 10: Leading Specifications
Version 4.20.03 or later 3.11.18 or later Version VTW 10.7.1 or later Version 1.0 or later 256 Kbytes flash memory for CT-3000, CT-3000B, CT-3000L, CT-3000BL, LC-3000, LC-3000B, LC-3000L, & LC-3000BL 1 Mbyte flash memory for CT-3000/1M, CT-3000L/1M, LC-3000/1M, & LC-3000L/1M Height: 8.6 in (212.8 cm) -
Page 11: Installation/Setup
Preparation for Use The only preparation that may be required is to mount the touchpanel. If a lectern mount Series 3000 touchpanel is being installed, the cutout dimensions are required. Refer to the lectern cutout details below for these configurations. Cutout measurements in the figure have been rounded up to the nearest 1/8 inch. -
Page 12: Hardware Hookup
(Doc. 5411) or, if necessary, the network modular cable requirements (Doc. 5682). 2. Connect the touchpanel to the CRESNET II network via a CRESNET II network cable, shown below, and appropriate interface module. Recommended CRESNET II Network Cable, Part No. CRE-2S18218 NOTE: Wire is available from Liberty Wire &... -
Page 13: Configuring The Touchpanel
To configure the unit, it may be necessary to access a series of setup screens prior to viewing run-time screens that are loaded into the touchpanel for normal operation. The Main Menu for configuring the touchpanel appears when a finger is held to the touchscreen as power is applied. Remove your finger when the message "SETUP MODE"... -
Page 14: Calibration Menu
Diagnostics Menu The DIAGNOSTICS button from the Main Menu should only be used under supervision from a CRESTRON technical support representative during telephone support. The options available from the Diagnostics Menu, shown below, are numeric in nature and their interpretation is beyond the scope of this manual. - Page 15 NOTE: Display backlight requires warm-up time. A display reaches 80% of its final level in five minutes and full brightness in 20 minutes. The touchpanel display hardware life can be lengthened by turning off the backlight when the touchpanel is inactive. The Backlight Timeout button is located in the middle row of the third column of the Setup Menu.
- Page 16 CRESNET II system. Matching NET IDs between touchpanel and VisionTools for Windows program is required if data is to be successfully transferred or new touchpanel screens are to be loaded. NET ID is factory set to 03. Two side-by-side buttons beneath the hexadecimal display, < Cresnet ID and Cresnet ID >, decrease and increase the NET ID by one, respectively.
- Page 17 Series 3000 Touchpanels support panel operation via a host computer through the RS-232 Protocol RS-232 port. Crestron recommends that the following serial data format is set. Suggested Serial Data Format These settings may be altered via the RS-232 Menu when configuring the touchpanel, however, doing so may prevent Crestron supplied software from Operations Guide - DOC.
- Page 18 'R' code always follows a 'P' code. A fixed three-digit format is used to simplify software on the host. Codes may be sent to the touchpanel in the same form as they are received. The 'P' form turns on a function and the 'R' form turns off a function; sending back information received from the touchpanel (i.e., jumping pins 2 and 3) makes the...
-
Page 19: Programming
The print date of this Operations Guide occurs so precariously close to the official release of SIMPL Windows that an exemplary discussion of both programming methods should coexist. The Workshop is Crestron’s DOS-based programming Operations Guide - DOC. 8094B CRESTRON @CNow is the time<cr>... - Page 20 SIMPL Windows, by virtue of its name, is Windows-based. Although Crestron will continue to provide support for Workshop queries, there is no plan to add new features to it. For this reason, Crestron suggests that all new programming be done with SIMPL Windows.
-
Page 21: Simpl Windows
Use the Configuration Manager workspace in SIMPL Windows to select and configure all the devices that need to be included into the system. For this example, a CT-3000 must be added to the system and its NET ID must be set to 11, shown below. - Page 22 Graphical Detail View of an Interlock in SIMPL Windows’ Programming Manager The signals from the Interlock are used as feedback into the touchpanel as well as to drive the relay card that resides in the first slot of the CNMS. Use the Programming Manager to select and assign signals to the Relay card symbol, shown below.
-
Page 23: Problem Solving
Problem Solving Troubleshooting The table below provides corrective action for possible trouble situations. If further assistance is required, please contact a CRESTRON technical support representative. Series 3000 Troubleshooting TROUBLE Touchpanel does not function. Touchpanel is not responding and screen displays "Network... -
Page 24: Further Inquiries
= <relay4> o4 =<relay4_fb> Series 3000 Touchpanels CRESTRON In the US and Canada, call Crestron’s corporate headquarterrs at 1- 888-CRESTRON [1-888-273-7876] or 1-201-767-3400. In Europe, call Crestron International at +32.15.730.974. In Asia, call Crestron Asia at +852.2341.2016. In Latin America, call +525.574.15.90. -
Page 25: Return And Warranty Policies
(3) years from the date of shipment to purchaser. Disk drives and any other moving or rotating mechanical parts are covered for a period of one (1) year. CRESTRON warrants all its other products for a period of one year from the defects mentioned above, excluding touchscreen display components which are covered for 90 days.
