- Page 1 Operating Manual SingleLine SCOUT Integrated Personal Alert Safety System (PASS) Order No.:10186539/05 MSAsafety.com...
- Page 2 The Declaration of Conformity can be found under the following link: https://MSAsafety.com/DoC. MSA is a registered trademark of MSA Technology, LLC in the US, Europe and other Countries. For all other trademarks visit https://us.msasafety.com/Trademarks. MSA Europe GmbH Schlüsselstrasse 12 8645 Rapperswil-Jona...
-
Page 3: Table Of Contents
Contents Safety Regulations Correct Use Liability Information Lung Governed Demand Valve Description Installation Switching on Switching off Pressure Status Message Battery Life Indication Initiating Manual Alarm Calls during Use Canceling Alarms Using a Safety Key Illuminating the Gauge Cleaning and Maintenance Cleaning Maintenance Technical Data... -
Page 4: Safety Regulations
Product liability claims, warranties and guarantees made by MSA with respect to the device are voided, if it is not used, serviced or maintained in accordance with the instructions in this manual. -
Page 5: Description

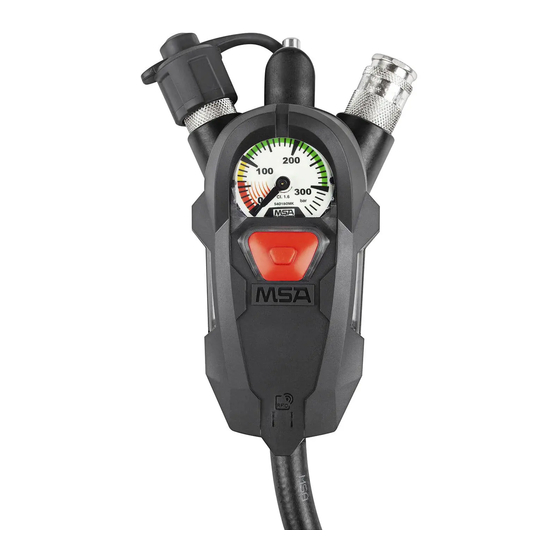

The SingleLine SCOUT (see Figure 1 ) is connected at the end of the SingleLine of an applicable MSA SCBA. It consists of the pressure gauge (2), the coupling for the lung governed demand valve (8) as well as an acoustic warning device (7) (signal whistle). It triggers a continuous warning signal when the cylinder pressure drops below 55 ± 5 bar. - Page 6 2 Description The device monitors the proper functioning of the respiratory protective device. It displays the current operating data of the respiratory protective device and signals the danger conditions (visually and acoustically). In addition, the device automatically triggers an alarm if the apparatus user is not moving and provides the opportunity for manual alarm triggering.
-
Page 7: Installation
3 Installation Installation Disassembling SingleLine Gauge For disassembling the SingleLine gauge, a Torx spanner and a small screw driver are required. Unscrew the back cover of the SingleLine gauge with a Torx T10 spanner. Lift the back cover. Remove the U-clip with a small screw driver. Pull the SingleLine manifold out. - Page 8 The screws are not reusable and MUST be replaced with new ones after each disassembly. Failure to follow this caution can result in minor or moderate injury. Assembling SingleLine SCOUT For assembling the device, a Torx spanner and a small screw driver are required.
-
Page 9: Use
4 Use Switching on Open compressed air cylinder. If pressure > 15 bar, SingleLine SCOUT starts up. a) Electronic component check: All LEDs are flashing once, an acoustic signal sounds and the gauge LEDs light up green. The device is ready for use. If only red LEDs light up and no acoustic signal sounds, do not use the device. There is an electronical damage. -
Page 10: Battery Life Indication
• 60 bar – Signal whistle – double beep repeated until confirmed with double press below 15 bar These thresholds can be changed using the MSA A2 Software in combination with 10181672 as PC interface. See MSA A2 Software for more details. - Page 11 3 LEDs on each side of the gauge when the device is lifted from the user’s chest. Following thresholds represent the standard setting and can be changed using MSA A2 Software in combination with 10181672 as PC interface.
- Page 12 It is possible to read out the data from the SingleLine SCOUT. Settings can be changed to a certain extent and reloaded back to the device. This is done by loading the MSA A2 Software on the PC. See connected software manual in application software “SingleLine SCOUT”.
-
Page 13: Cleaning And Maintenance
Update date and time settings after battery exchange using MSA A2 Software. It is recommended that the batteries be changed at least once a year or if indicated to do so by the LED or on the display. - Page 14 Service mode Pressing manual alarm button for more then 10 seconds in standby activates the service mode. Service mode can be used in combination with MSA A2 Software to change device settings and read out log memory. For more information, see MSA A2 Software.
-
Page 15: Technical Data
6 Technical Data Technical Data High pressure 200 bar resp. 300 bar Medium pressure 5 bar to 9 bar Operating -30 °C to +60 °C Storage 0 °C to +40 °C Dimensions Length: 180 mm Width: 110 mm Height: 65 mm Approvals CE 0158 ATEX BVS 17 ATEX E 094 Ex ia IIC T4 Ga EN 137:2007, Typ 2 Batteries (Approved) -
Page 16: Markings, Certificates And Approvals
7 Markings, Certificates and Approvals Markings, Certificates and Approvals Marking, Certificates and Approvals according to the Directive 2014/34/EU (ATEX) and National Standards Manufacturer: MSA Europe GmbH Schlüsselstr. 12 CH - 8645 Rapperswil-Jona Product: SingleLine SCOUT EU-Type BVS 17 ATEX E 094... - Page 17 7 Markings, Certificates and Approvals Specific Conditions for Safe Use: • Read the safety instructions before use. • Use only one battery type in the same device. • Do not open in hazardous area. Quality Assurance 0158 Notification: Year of Manufacture: see Label Serial No.: see Label...
-
Page 18: Ordering Information
8 Ordering Information Ordering Information Description Part number SingleLine SCOUT with 2 medium pressure connections - without 10183243 SingleLine SingleLine SCOUT with 1 medium pressure connection - without 10184951 SingleLine Battery AA, Energizer L91 Ultimate, 4 pcs. 10185625-SP SingleLine SCOUT RFID Kit 10189001 SingleLine SCOUT safety key, set of 10 pcs. - Page 19 8 Ordering Information...
- Page 20 For local MSA contacts, please visit us at MSAsafety.com...
