MSA SCBA Basic Apparatus AirGo Quick Start Manual

Quick Start Guide
SCBA Basic Apparatus AirGo
The quick start guide does not replace the operating
manual. It is imperative that the operating manual file on
CD be read and observed when using the apparatus. In
particular, the safety instructions, as well as the infor-
mation for the use and operation of the apparatus, must
be carefully read and observed.
The operating manual can also be provided as a hard
copy upon request.

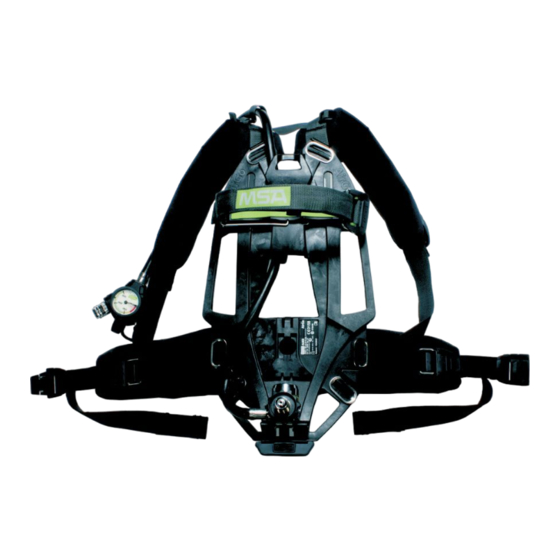

Compressed Air Basic Apparatus – here Model AirGo pro
1 Manifold
2 Shoulder strap
3 Back plate with cylinder support
4 Cylinder retaining strap
AirGo is a self-contained breathing apparatus operating inde-
pendent of the ambient air. It is based on a modular structure
which allows the creation and ordering of a unit matched to the
specific requirements.
Breathable air is supplied to the user from compressed air
cylinder(s) via a pressure reducer, a lung governed demand
valve and a facepiece. The exhalation air is released directly
into the ambient atmosphere.
This compressed air breathing apparatus is a pure gas
protection device.
It is not suitable for underwater diving.
1 2
7
6
3 4
5
5 Pressure reducer
6 Single line
7 Hip belt with swivelling plate (option)
Order No.: 10082063/05
