MSA Safety 10079633 Suretyman Rescue Utility System 800 Ft.
MSA Safety 10033360 Suretyman Rescue Utility System 600 Ft.
MSA Safety SRS15400 Suretyman Rescue Utility System 400 Ft.
MSA Safety SRS15300 Suretyman Rescue Utility System 300 Ft.
WARNING
THESE INSTRUCTIONS MUST BE
PROVIDED TO THE USER.
MANAGEMENT AND USER
MUST READ AND UNDERSTAND
THESE INSTRUCTIONS; FAILURE
TO DO SO COULD RESULT IN
SERIOUS INJURY OR DEATH.
Copyright © 2001 MSA
All rights reserved. No part of this
Catalogue covered by the copyrights
hereon may be reproduced or copied
in any form or by any means - graphics,
electronic or mechanical, including
photocopying, recording, taping or
information storage and retrieval systems
-without the written permission of MSA.
Printed in U.S.A.
netzerotools.com
netzerotools.com
MSA SURETYMAN
SYSTEM P/N SRS15
Application, Operation, Maintenance & Inspection
Instructions Manual
Please read this manual.
This information is vital to your safety.
Application
The MSA Suretyman™ Rescue Utility System
is a manually operated man rated raising and
lowering system. It has been designed as a
rescue system, however it works equally well
as a work positioning device and for use as
a tool for confined space rescue or work
positioning. The MSA Suretyman™ Rescue
Utility System can be used by a rescuer or
worker to position themself, or to raise and
lower another worker/rescuer. The system
has been designed to be capable of lifting or
lowering a two person load, 600 lb. (272 kg).
Function
The MSA Suretyman™ Rescue Utility System
is available with two different rope configura-
tions. It is available in 7/16 inch (11 mm)
rope or can be special ordered with 1/2"
(12 mm) rope. The system is pre-rigged and
is ready for use straight out of the bag. The
MSA Suretyman™ Rescue Utility System is
configured into a 4:1 mechanical advantage
raising system. This gives the operator the
ability to raise the loads easily and efficiently
with a minimum of effort. The packaged
system remains small enough for easy
transport.
continued on page 2...
netzerotools.com
Page 1 of 8
Ref #: SRUS001 DATE: 07/07/03

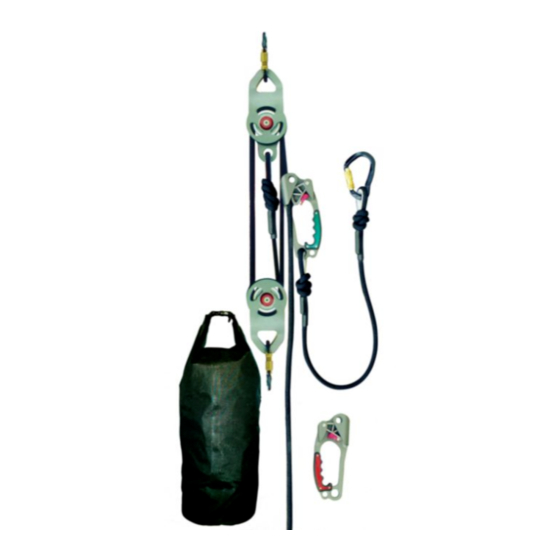

RESCUE UTILITY
®
Storage
Bag
Carabiner
Upper
Anti-Reversing
Double Pulley
Right Handed
Ascender
(Standard)
Securing
Rope
c/w
Carabiner
Lower
Anti-Reversing
Double Pulley
Carabiner
(OPTIONAL)
Left-Handed Ascender
Suretyman™
7/16"
(11 mm) Static
Kernmantle
Rope
Advertisement
Related Manuals for MSA SURETYMAN SRS15
Summary of Contents for MSA SURETYMAN SRS15
- Page 1 Ref #: SRUS001 DATE: 07/07/03 MSA Safety 10079633 Suretyman Rescue Utility System 800 Ft. MSA Safety 10033360 Suretyman Rescue Utility System 600 Ft. MSA Safety SRS15400 Suretyman Rescue Utility System 400 Ft. MSA Safety SRS15300 Suretyman Rescue Utility System 300 Ft.
-
Page 2: Specifications
When a load is lowered the sheaves of the patent pending Anti-Reversing pulleys lock. This friction/braking action allows the operator to hold or lower a load with very little effort. The MSA Suretyman™ Rescue Utility System only requires a force of approximately 10 lb (4.5 kg) to hold a 220 lb (100 kg) load. The friction caused by the braking action of the pulleys sheaves also makes the task of lowering a load in control an easy one. -
Page 3: Fall Protection
During training and all work positioning, the MSA Suretyman™ Rescue Utility System must be used with an independently anchored fall arrest system in accordance with applicable local work regulations. The only exception to this would be when the MSA Suretyman™ Rescue Utility System is being used by a fully trained user during an actual emergency rescue/evacuation. - Page 4 (FIG. 7). When the MSA Suretyman™ Ascender is attached to the operator or immovable object it acts as a brake or safety stop. Should the operating rope be accidentally released the load will only descend the length of the securing rope. The load will not be "dropped"...
- Page 5 Copyright © 2001 MSA Surety Raising (Lifting) The Load To raise the load, grip the MSA FIG. 9 FIG. 10 FIG. 11 Suretyman™ Ascender with both hands and pull down (note: to avoid fatigue, use body weight, don't just rely on upper body strength to pull the rope).
- Page 6 Inspection 1. The MSA Rescue Utility System shall be inspected by 4. MSA or persons or entities authorized in writing by the the user prior to each installation, and additionally by manufacturer, shall make repairs to equipment. No a competent person other than the user at intervals of unauthorized repairs and/or modifications are allowed.
-
Page 7: Maintenance And Storage
MSA instructions. Unique issues, which may arise rodents. due to conditions of use, shall be addressed with MSA. 4. Periodically lubricate carabiner gate with a light 2. Equipment which is in need of or scheduled for oil. -
Page 8: Inspection Checklist
Inspection Checklist Location Date Inspected By Comments Quantity Description length Rope Shrink Seal Thimble Carabiners Lower Pulley Upper Pulley Ascender Ascender Rope Thimble Ascender Rope Ascender Carabiner Ascender Shrink Seal NOTES: Page 8 of 8 Copyright © 2001 MSA netzerotools.com...
