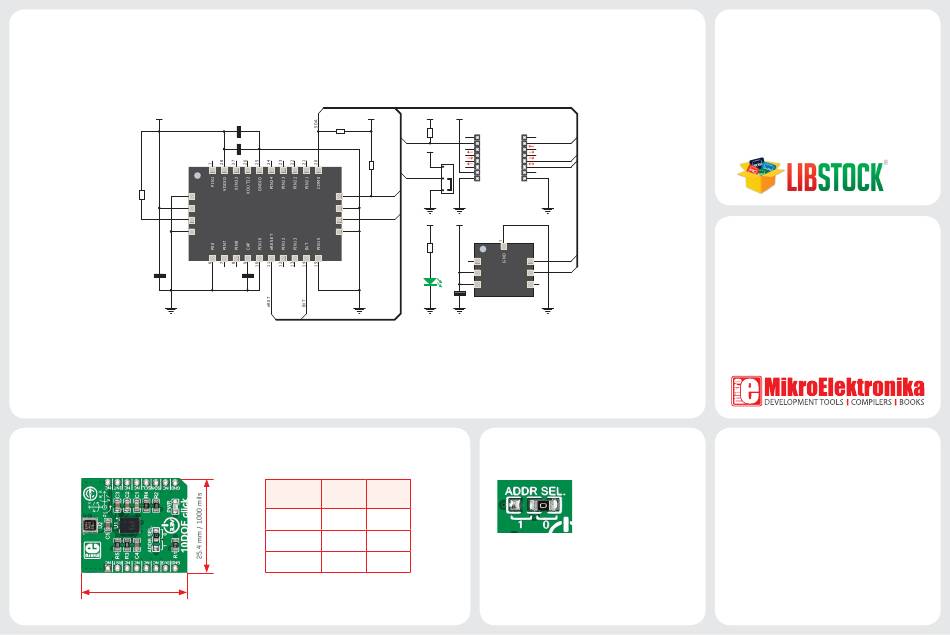

mikroElektronika 10DOF click Manual page 2

5. Schematic
VCC-3.3V
U1
R5 2
GND
10K
3
VDD
4
nBOOT
5
PS1
C3
100nF
6. Dimensions
28.6 mm / 1125 mils
VCC-3.3V
R2
C1 6.8nF
4K7
C2 120nF
R4
4K7
19 SCL
COM1
18
COM2
BNO 055
17 ADDR
COM3
16
PIN16
C4
100nF
mm mils
28.6 1125
LENGTH
25.4 1000
WIDTH
3.3 130
HEIGHT*
* without headers
VCC-3.3V VCC-3.3V
R3
10K AN PWM
nRST INT
RST INT
VCC-3.3V
CS TX
SCK RX
ADDR. SEL. SCL
SCL
MISO
3 SDA
SDA
MOSI
+3.3V +5V
ADDR 2
GND GND
1 MIKROBUS_DEVICE_CONN.
J1A
VCC-3.3V VCC-3.3V
U2
R1
470
1 6 SDA
NC SDA
2 5 SCL
VDD SCL
3 4
VDDIO NC
C5
100nF
BMP 180
7. Alternative select
The ADDR SEL jumper
is for specifying the I2C
address of the BNO055
sensor.
8. Code examples
Once you have done all the necessary
preparations, it's time to get your click board
up and running. We have provided examples
for mikroC , mikroBasic and mikroPascal
™ ™
compilers on our Libstock website. Just
download them and you are ready to start.
.com
9. Support
MikroElektronika offers free tech support
(www.mikroe.com/support) until the end of
the product's lifetime, so if something goes
wrong, we're ready and willing to help!
