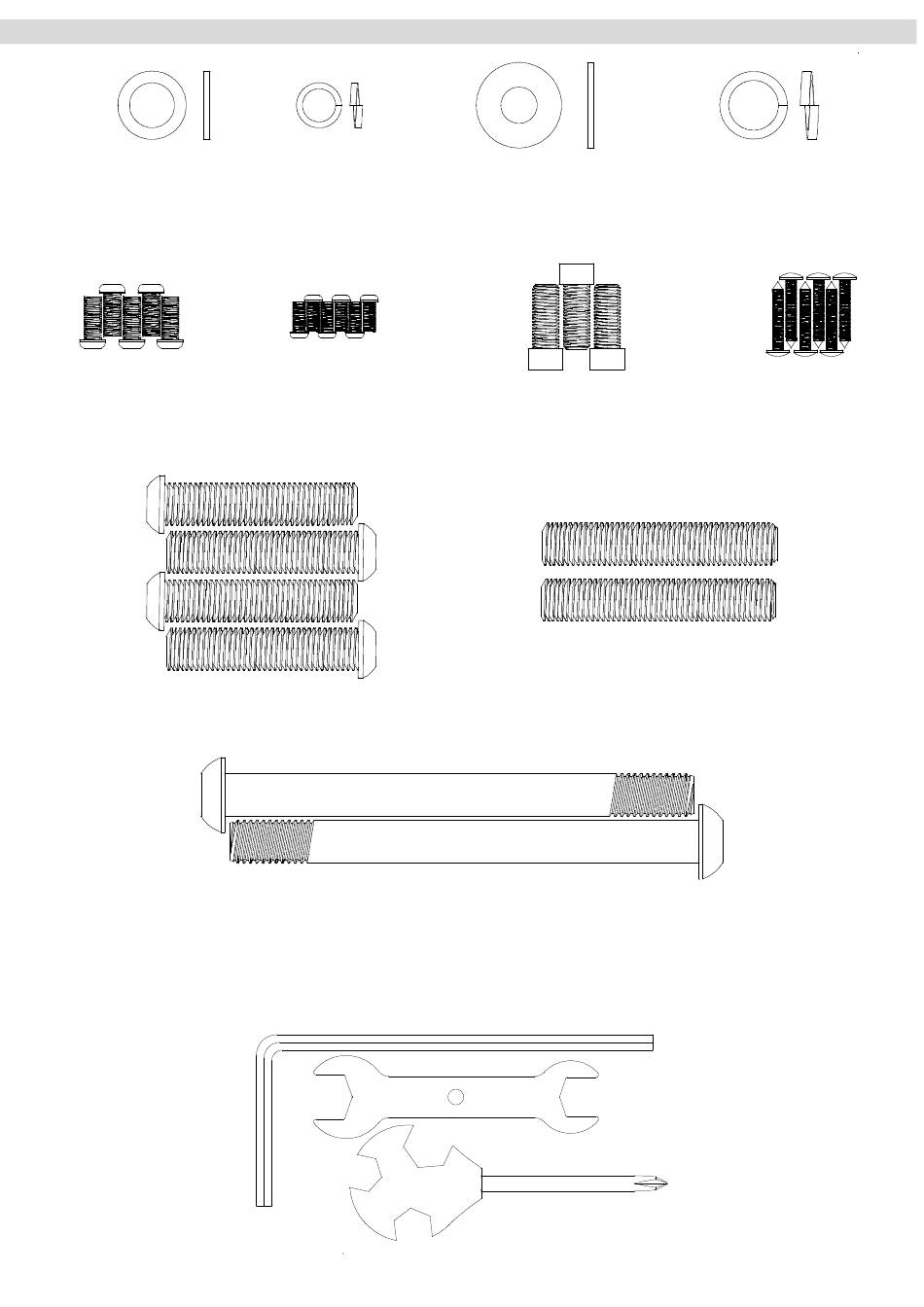

Part 29

Washer Ø8

3 pieces

Part 26

Phillips screw M5x15

5 pieces

Hexagon socket screw M10x45

4 pieces

Part 31

Spring washer Ø8

3 pieces

Part 20

Phillips screw M4x10

6 pieces

Part 19

Hexagon socket screw M10x110

Tools included in the scope of delivery

Part 30

Washer Ø10

6 pieces

Part 11

Hexagon socket screw M8x20

3 pieces

Grub screw M12x70

Part 16

2 pieces

Fixing Materials

Part 32

Spring washer Ø10

6 pieces

Part 24

Sheet metal screw 4x16

6 pieces

Part 15

2 pieces
