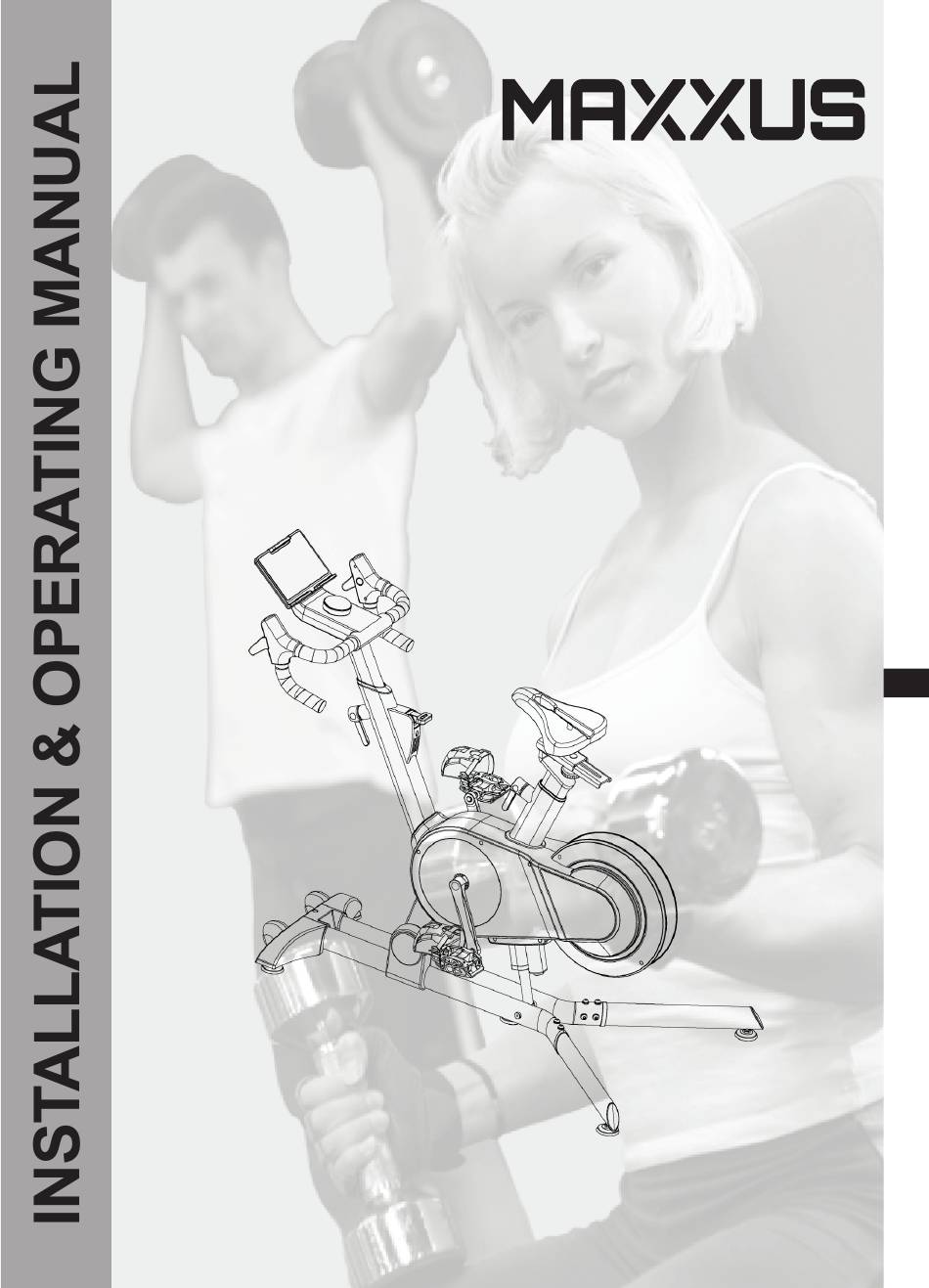

- Page 1 Spinning Bike GSMX-600421-00019-0001...
-
Page 2: Table Of Contents
INDEX IMPORTANT INFORMATION AND SAFETY INSTRUCTIONS TECHNICAL DATA OVERVIEW PARTS LIST 6-10 ASSEMBLY STEPS ADDITIONAL INFORMATION 11-13 COMPUTER OPERATION CLEANING/ MAINTENANCE/DISPOSAL WARRANTY TRAINING INFORMATION WARM-UP/STRETCHING... -
Page 3: Important Information And Safety Instructions
DEAR CUSTOMER, Thank you for choosing our product. Please read this manual carefully to avoid any damage from improper use. If you share the product, be sure to pass on this manual. IMPORTANT INFORMATION AND SAFETY INSTRUCTIONS General information Please ensure that everyone using the device has read and understood the assembly and operating instructions. These instructions must be considered part of the product and kept in a safe place for future reference. -
Page 4: Technical Data Overview
TECHNICAL DATA OVERVIEW Max user weight: 130 kg Length: 150 cm Width: 80 cm Height: 116.5 cm... -
Page 5: Iii. Parts List
PARTS LIST III. PARTS LIST HARDWARE PACKAGE:... -
Page 6: Assembly Steps
IV. ASSEMBLY INSTRUCTIONS STEP 1 ASSEMBLY STEPS ： ： 1. Use an Allen wrench (B17) with 3-in-1 screws (D07*2) and 3-in-1 screws (D28*1) to fix the front foot pad fixing plate group (B) to the main frame assembly (A) and lock it tightly. 2. - Page 7 STEP 2： ： ASSEMBLY STEPS STEP 3 ： ： 1. First, fasten the buckle (H) on the IPAD holder group (E) into the square hole (K) on the electronic watch group (F), and fix the IPAD holder group (E) on the electronic watch group (F) with the cross wrench (B18) and the cross pan head self-tapping screw (D16).
- Page 8 ASSEMBLY STEPS Place seat pack (G) on seat pack tube (A03) and tighten seat pack (G) with twist (C21) and square neck bolt (D02). STEP 5 ： ： Move the stationary bike to the position with power supply, ensure that there is a space distance of 0.6 meters around, and then plug the power adapter (E14) into the power port (E11) as shown in the figure.
- Page 9 ASSEMBLY STEPS or clockwise according to the actual situation, as shown in the figure. 1. To adjust the height of instrument tube group (A02)/seat cushion tube group (A03), first loosen the L-shaped elastic pin assembly (B12) by rotating it counterclockwise, and then rotate it clockwise to lock it.
-
Page 10: Brake Use
BRAKE USE ASSEMBLY STEPS Press down the brake button to stop the bike pedals SAFETY STOP! Press the brake button firmly to stop the bike pedals. VI. HOW TO MOVE THE MACHINE ADDITIONAL INFORMATION two hands hold the left and right rear foot tube, lift the machine about 45 degrees Angle, so that the front two moving wheels land, both can push the machine forward or pull back. -
Page 11: Computer Operation
COMPUTER OPERATION Window and Button Description: 1. LED Display Functions Window and button description: The LED display on your indoor cycling bike provides real-time information for several key metrics. The display LED window displays the following functions： cycles through these metrics every 5 seconds during use. When you adjust the resistance or incline, those values will LED window multiplexed display, in the running state 5 seconds in turn take priority on the display. - Page 12 can be adjusted. gears COMPUTER OPERATION incline Programs:The system changes segments every 10 seconds. gears PROGRAMS: THE SYSTEM SWITCHES BETWEEN SEGMENTS EVERY 10 SECONDS. incline Running time:10 seconds Running time:10 seconds Time Incline gears incline gears incline gears incline Display range of each value： ： DISPLAY RANGE OF EACH VALUE: Set initial Set initial...
-
Page 13: Cleaning/ Maintenance/Disposal
COMPUTER OPERATION Slope Motor Calibration • Automatic Incline Learning: In standby mode, press and hold both the incline increase and decrease buttons simultaneously for 3 seconds. The system will then enter automatic incline calibration mode. Once calibration is complete, the system will automatically exit this mode. •... -
Page 14: Training Information
TRAINING INFORMATION Training Preparations Before starting training, ensure that both the equipment and your body are in good condition. If you haven’t engaged in strength or endurance training for a long time, consult your family doctor and undergo a fitness check-up. Discuss your training goals with your doctor, especially if you are over 35, overweight, or have cardiovascular issues. -
Page 15: Warm-Up/Stretching
WARM-UP/STRETCHING Thighs Support yourself with your right hand against a wall or your exercise equipment. Lift your left foot backward and hold it with your left hand, with your knee pointing straight down. Pull your thigh back until you feel a slight stretch in the muscle. Hold for 15-20 seconds, then slowly release your foot and lower your leg. - Page 16 Gorilla Sports GmbH Nordring 80 D-64521Gross-Gerau Germany E-Mail: info@maxxus.de www.maxxus.com...
