To continue a circuit past a switched light fixture to one or more duplex receptacles, connect the dimmer as shown in the
following diagram.

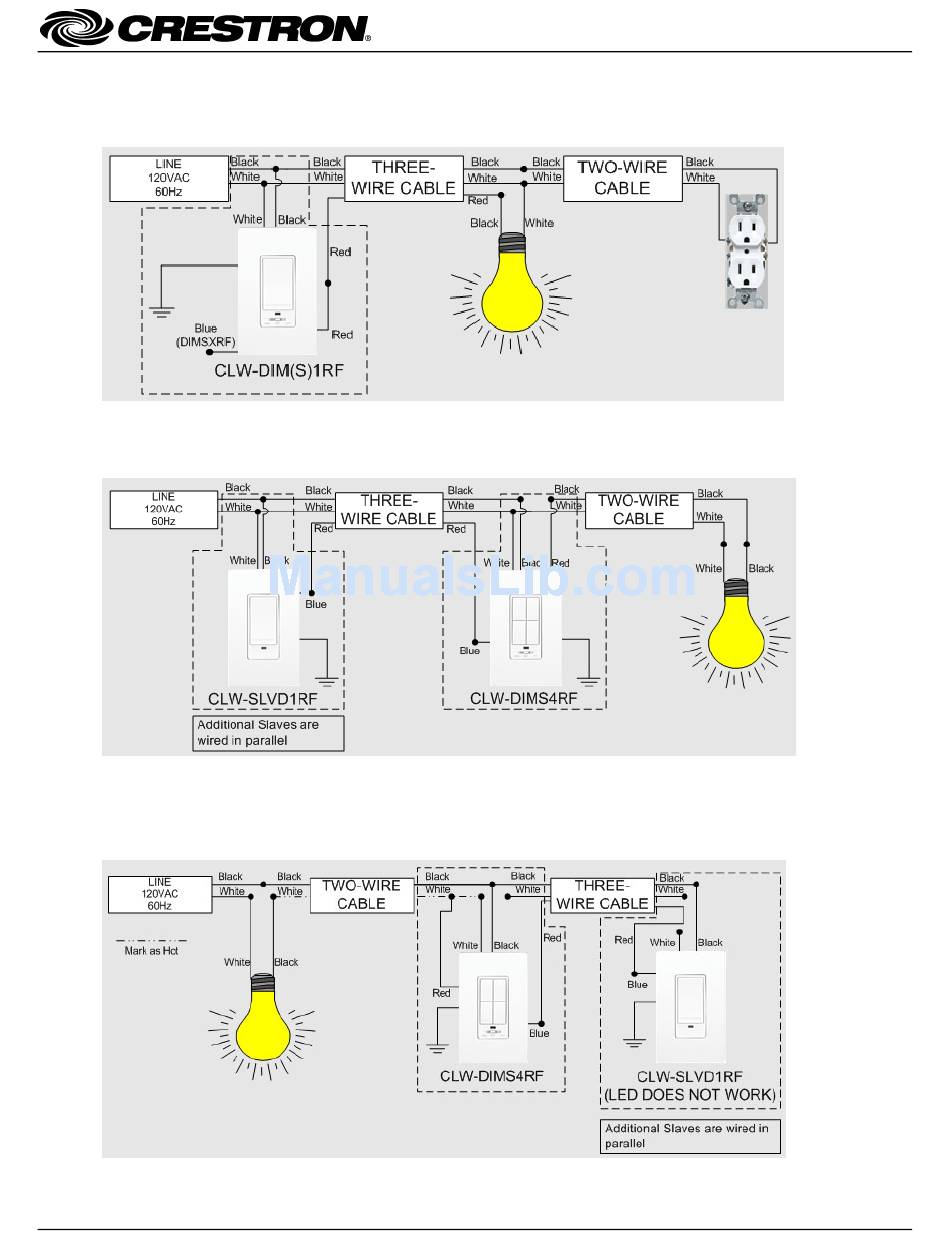

Figure 3: Adding a Duplex Receptacle Past a Switched Light Fixture
Master-Slave Installations
Figure 4: Wiring a CLW-DIMSXRF (CLW-DIMS4RF shown) with a CLW-SLVD1RF
If a neutral is not present in the wallbox, the wiring methods shown in the following diagrams can be used when wiring a
-DIMSXRF with -SLVD1RF devices.
Figure 5: Alternative Wiring of -DIMSXRF (CLW-DIMS4RF shown) with -SLVD1RFs Where Neutral is Not Present
(End-Fed three-way system)
