Appendix: Wiring Diagrams

Following are wiring diagrams for circuits that may be found when installing infiNET dimmers:

Stand-Alone Installations

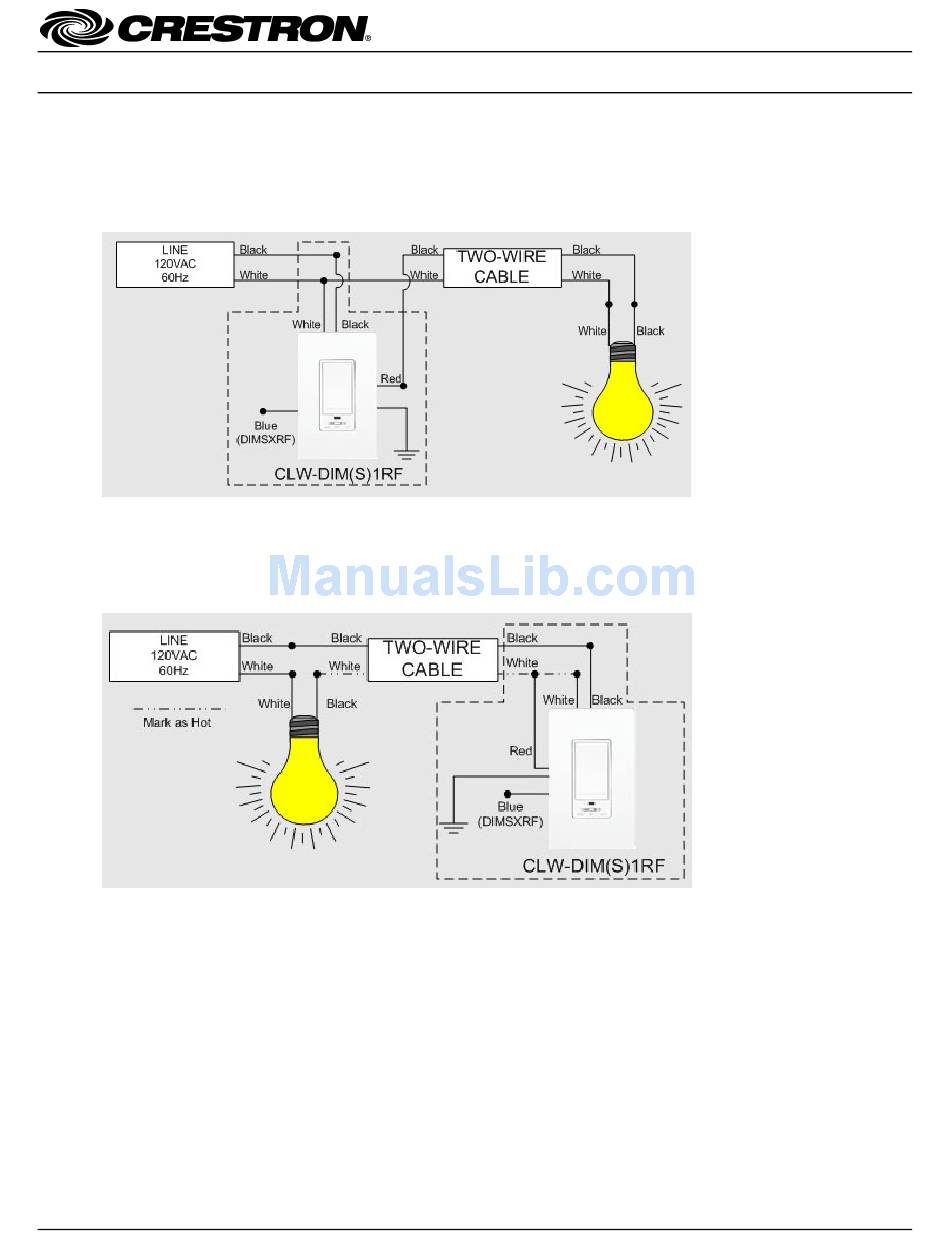

Figure 1: Wiring a CLW-DIM(S)XRF (CLW-DIMS1RF shown)
•
Since a -DIMSXRF is installed without a slave, the blue lead of the -DIMS1/4RF must be capped.
If a neutral is not present in the wallbox, the wiring shown in the following diagram can be used.
Figure 2: Alternative Wiring of -DIM1RF, -DIMS1RF, -DIM4RF, and -DIMS4RF Where Neutral is Not Present
(Load-Fed Switch Loop)
In the above configuration:
•
The white wire from the DIMSXRF to the load is coded HOT.
•
Since a -DIMSXRF is installed without a slave, the blue lead of the -DIMS1/4RF must be capped.
•
The minimum load requirement is 100W.
•
Bulb noise may be present even when the load is off.
•
Circuits with small magnetic low-voltage loads may not work.
