Volume/Equalizer Control Expansion Card
6 • Volume/Equalizer Control Expansion Card: C2VEQ-4
Hookup
Four balanced/unbalanced inputs are provided for audio input, utilizing five-position
mini-connectors. Audio inputs may be balanced using (+) and (-) inputs, or
unbalanced using (+) input for signal and connecting (-) input to (G) and signal
source ground.
Four balanced/unbalanced outputs are provided, also utilizing five-position mini-
connectors.
NOTE: An unbalanced input may use a balanced or unbalanced output. Likewise, a
balanced input may use a balanced or unbalanced output.
For connection details, refer to the following diagrams.

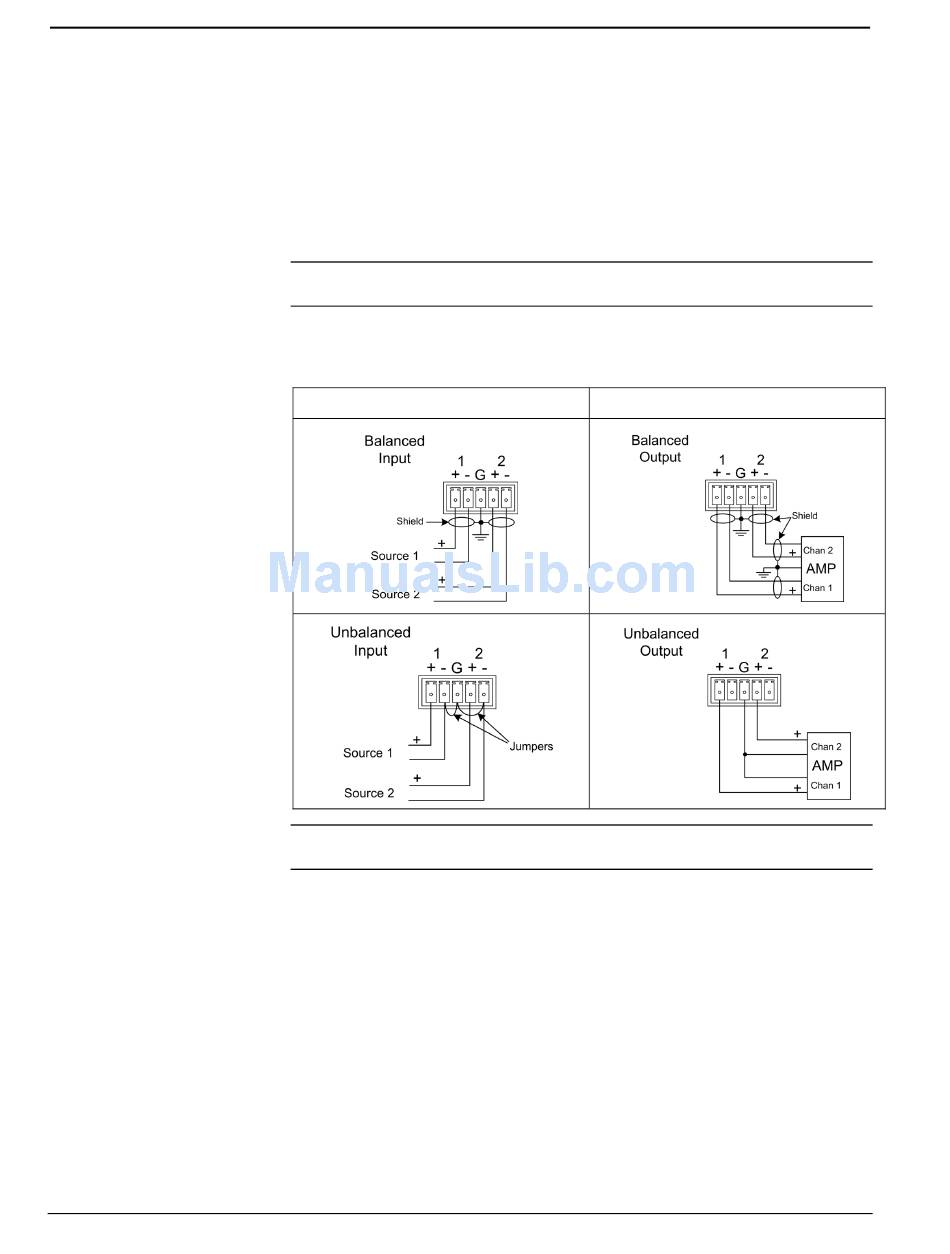

Typical Balanced/Unbalanced Inputs and Outputs
INPUTS
NOTE: Using the unbalanced configuration for the audio output reduces the total
audio gain by 6dB.
Crestron C2VEQ-4
OUTPUTS
Operations & Installation Guide - DOC. 6136
