Volume/Equalizer Control Expansion Card
8 • Volume/Equalizer Control Expansion Card: C2VEQ-4

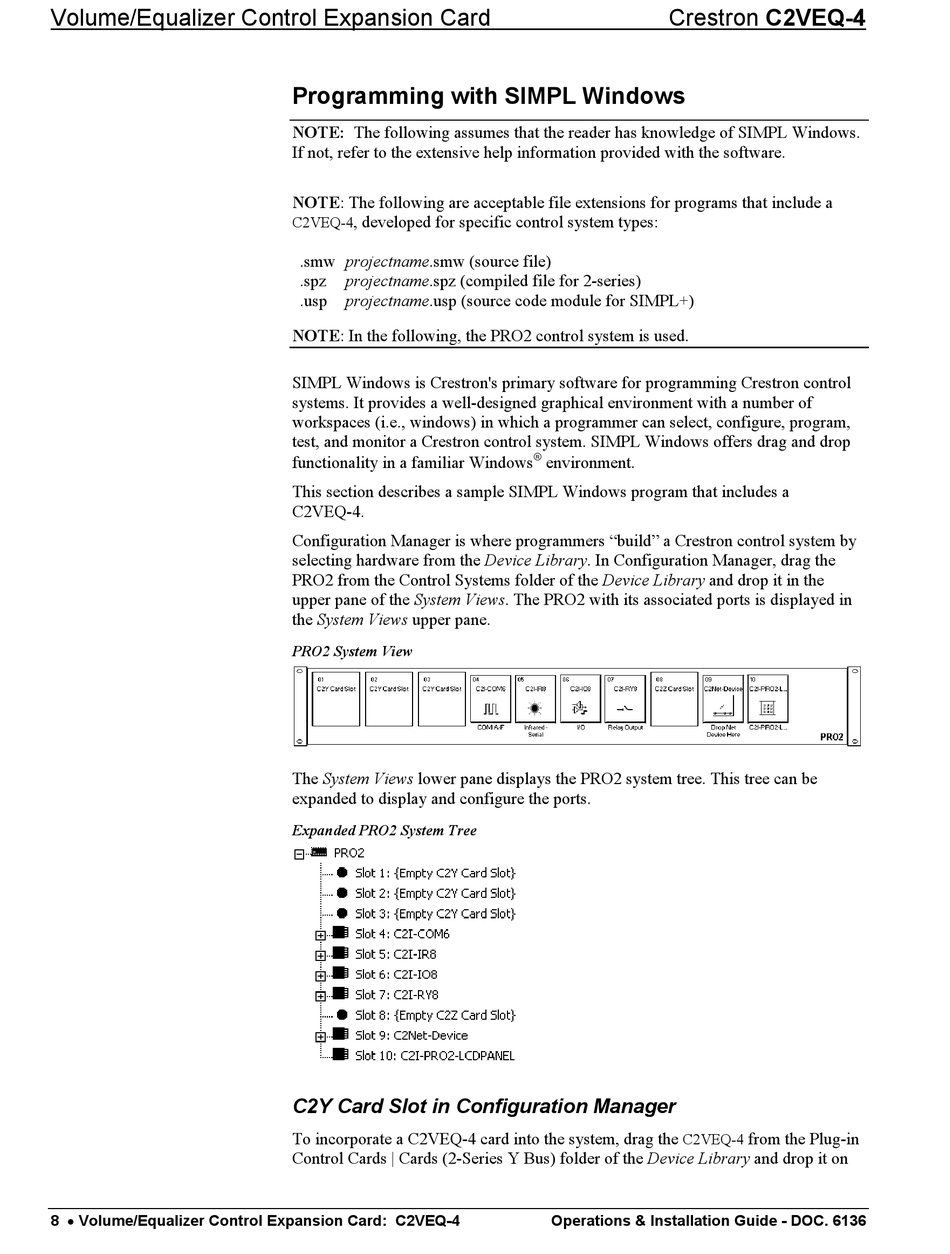

Programming with SIMPL Windows

NOTE: The following assumes that the reader has knowledge of SIMPL Windows.
If not, refer to the extensive help information provided with the software.
NOTE: The following are acceptable file extensions for programs that include a
, developed for specific control system types:
C2VEQ-4
.smw projectname.smw (source file)
.spz projectname.spz (compiled file for 2-series)
.usp projectname.usp (source code module for SIMPL+)
NOTE: In the following, the PRO2 control system is used.
SIMPL Windows is Crestron's primary software for programming Crestron control
systems. It provides a well-designed graphical environment with a number of
workspaces (i.e., windows) in which a programmer can select, configure, program,
test, and monitor a Crestron control system. SIMPL Windows offers drag and drop
functionality in a familiar Windows
This section describes a sample SIMPL Windows program that includes a
C2VEQ-4.
Configuration Manager is where programmers "build" a Crestron control system by
selecting hardware from the Device Library. In Configuration Manager, drag the
PRO2 from the Control Systems folder of the Device Library and drop it in the
upper pane of the System Views. The PRO2 with its associated ports is displayed in
the System Views upper pane.
PRO2 System View
The System Views lower pane displays the PRO2 system tree. This tree can be
expanded to display and configure the ports.
Expanded PRO2 System Tree
C2Y Card Slot in Configuration Manager
To incorporate a C2VEQ-4 card into the system, drag the
Control Cards | Cards (2-Series Y Bus) folder of the Device Library and drop it on
Crestron C2VEQ-4

environment.
C2VEQ-4
Operations & Installation Guide - DOC. 6136
from the Plug-in
