4 • Volume/Equalizer Control Expansion Card: C2VEQ-4
Four mini connectors provide the interface to four channels of balanced/unbalanced
audio input (IN 1-4) and four channels of balanced/unbalanced audio output (OUT
1-4). Connect the balanced/unbalanced input (IN) ports to the audio output of any
A/V equipment that needs volume, treble, bass, mixer, and/or equalization control;
connect the balanced/unbalanced output (OUT) ports to an amplifier. Each channel
includes a muting relay.

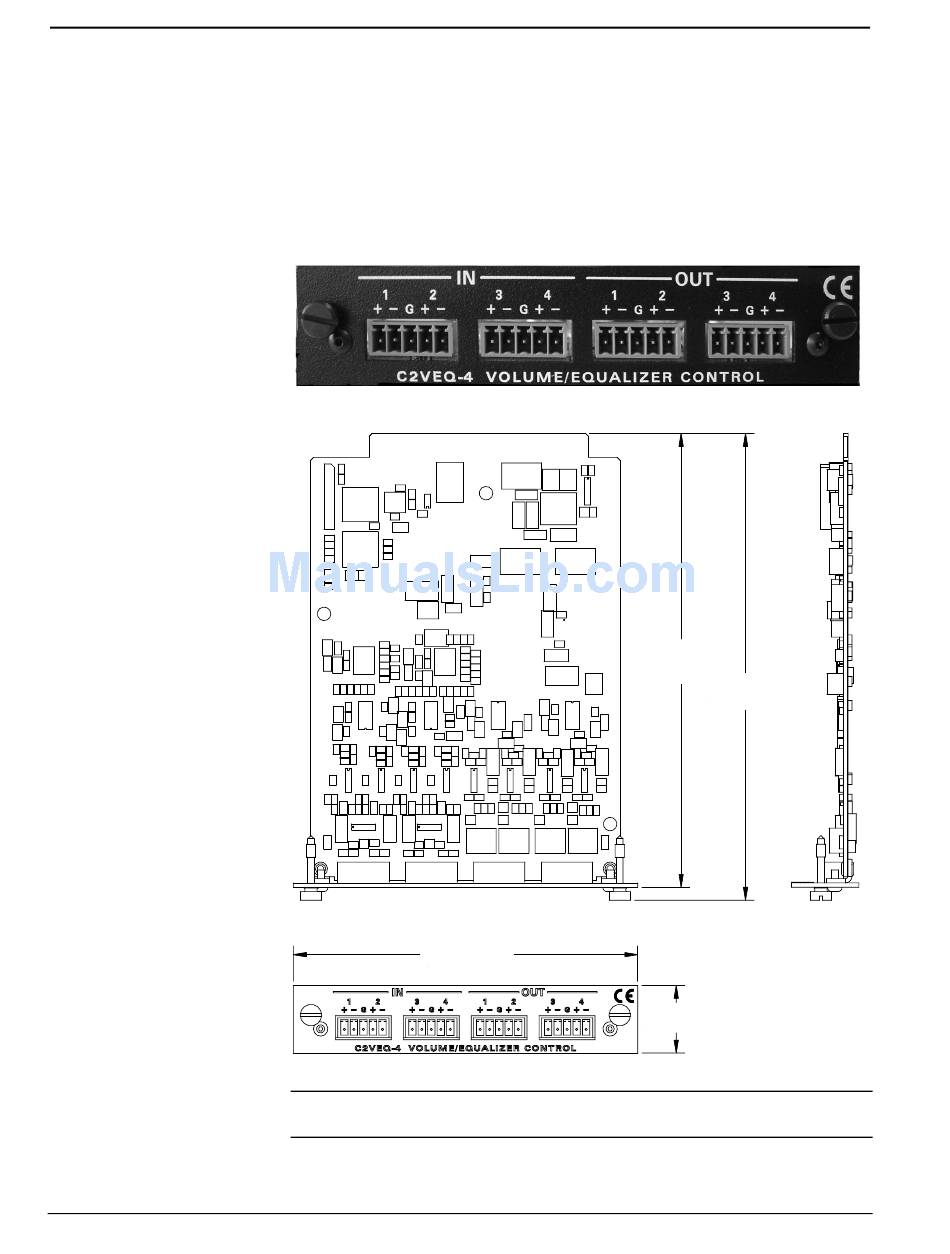

Refer to the following illustrations for a detailed view.
C2VEQ-4 Faceplate
C2VEQ-4: Top, Side & Front Views
5.00 in.
(12.70 cm)
NOTE: These diagrams are for illustration purposes only and do not show the exact
location of components on the circuit board.

Crestron C2VEQ-4

6.59 in.
(16.73 cm)
6.77 in.
(17.20 cm)
0.98 in
(2.49 cm)
Operations & Installation Guide - DOC. 6136
