Smaller Q values represent a narrow band of boost or attenuation, while larger
values represent a wide band of boost or attenuation.
On the rising edge of <SaveFilterPreset>, the current filter values for all 48 filters
will be stored in the preset specified by <FilterPreset#> Valid values for
<FilterPreset#> range from 1 to 5.
A rising edge of <RecallFilterPreset> will recall the type, gain, frequency and Q of
the specified <FilterPreset#> for all 48 filters.
The outputs <FilterType_F> through <FilterGain_F> report the current filter
settings.

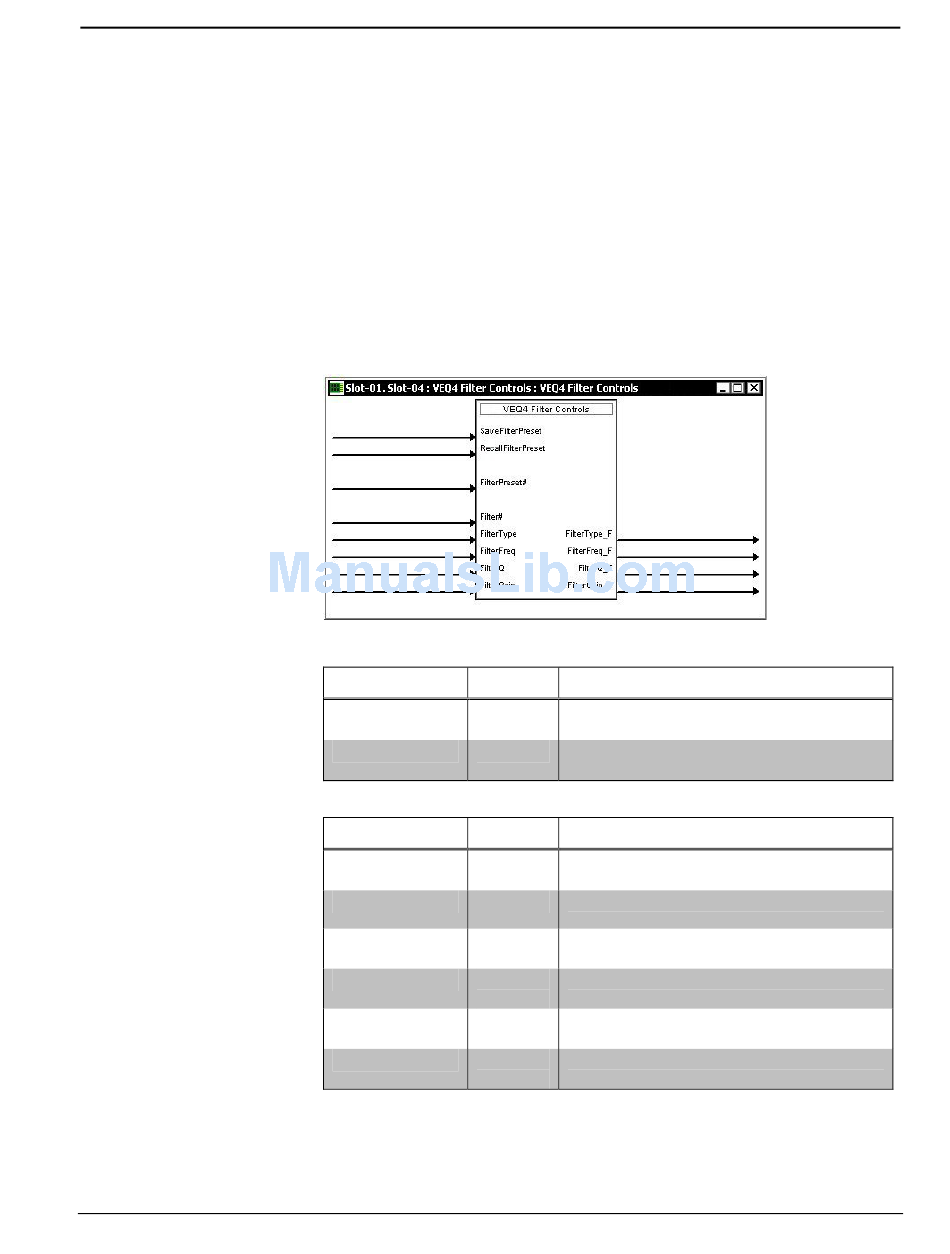

The Filter Controls symbol is illustrated below. Refer to the tables that follow the
symbol for join details.
Filter Controls Symbol
Filter Controls Input Signals – Digital
NAME VALUE
SaveFilterPreset 1/0
RecallFilterPreset 1/0
Filter Controls Input Signals – Analog
NAME VALUE
FilterPreset# 1 to 5
Filter# 1 to 48
FilterType 0 to 5
FilterFreq 5 to
24000
FilterQ 20 to
3500
FilterGain -360 to
240
Volume/Equalizer Control Expansion Card: C2VEQ-4 • 17
DEFINITION
Saves the current filter values into the given
FilterPreset# on the rising edge of the signal.
Recalls the filter values from the given
FilterPreset# on the rising edge of this signal.
DEFINITION
5 user-definable filter presets, each of which
includes 48 filters
Select filter
(1-12 CH1; 13-24 CH2; 25-36 CH3;
37-48 CH4)
0=off, 1=EQ, 2=High Pass, 3=Low Pass,
4=Treble Shelf, 5=Bass Shelf
5 Hz to 24 kHz
Each analog increment of 1 = 1 Hz
0.02 to 3.5 octaves
Each analog increment of 1 = 0.001 octaves
-36dB to +24dB
Each analog increment of 1 = 0.1dB
