Jumper Settings

Before applying power to the CAPA848, please make sure all of the
jumpers are in factory default positions.
Jumper Description
LVDS +3.3V/+5V Voltage Selection
JP1
Default: +3.3V
LVDS Brightness Control Mode Setting
JP3
Default: PWM Mode
Restore BIOS Optimal Defaults
JP4
Default: Normal Operation
LVDS +12V Voltage Selection
JP6
Default: N/A
Auto Power On
JP10
Default: Disable
Note: Please refer to the CAPA848 series product information CD for the
complete user's manual, drivers and utilities. User's manual and related
documents are in Acrobat PDF format.

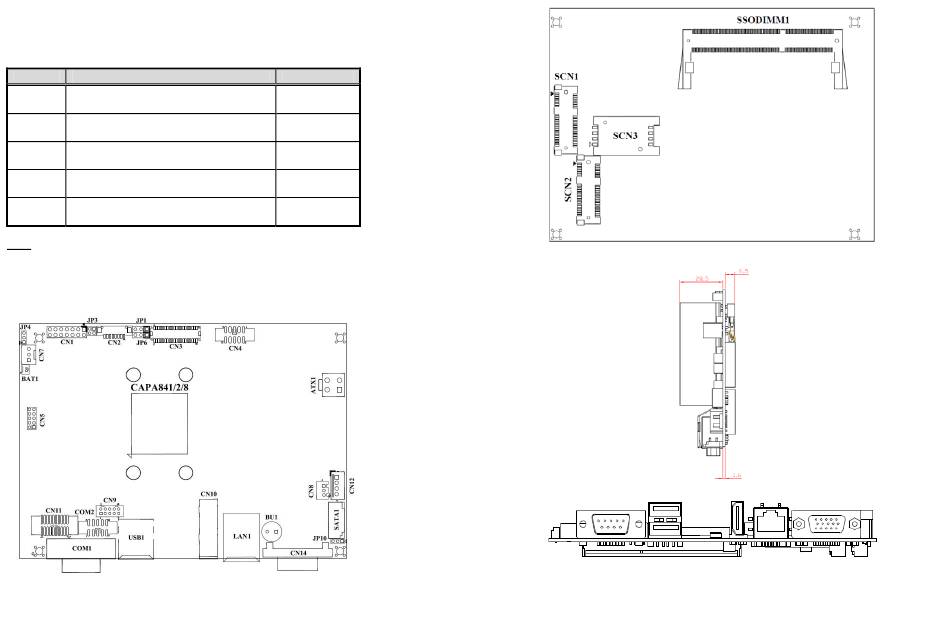

Board Layout

Top View
2
Setting
1-2 Close
1-2 Close
1-2 Close
N/A
1-2 Close
9418E848000E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A1 September 2015
Printed in Taiwan
Bottom View
Side View
9418E848000E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A1 September 2015
Printed in Taiwan
