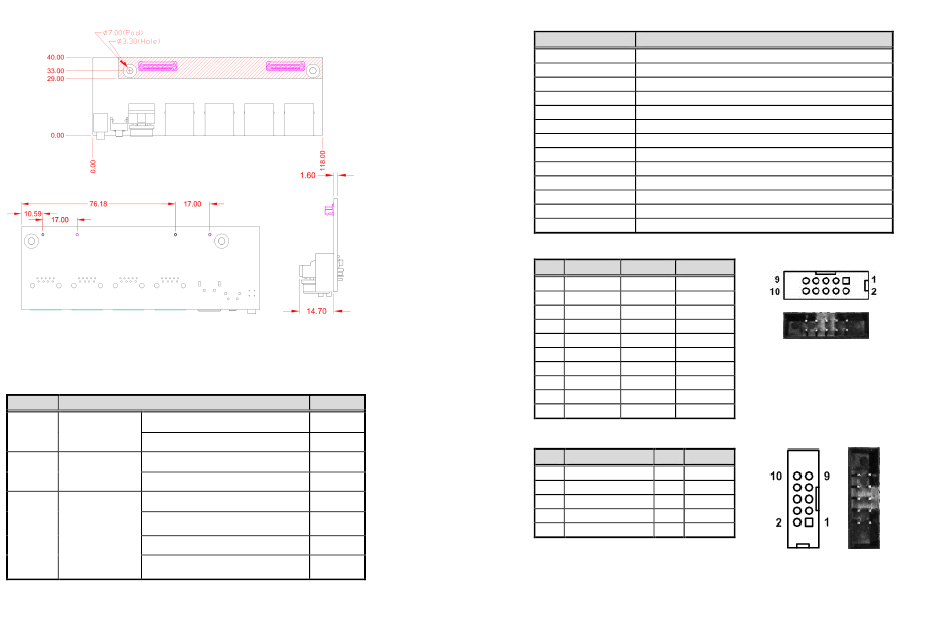

Board Dimensions and Fixing Holes

Top View
Bottom View

Jumper Settings

Before applying power to the AX93A02, please make sure all of the jumpers
are in factory default positions.
Jumper Description
+5V_SBY (Default)
USB port 0 and 1
JP1
Power Selection
+5V
+5V_SBY (Default)
USB port 2 and 3
JP2
Power Selection
+5V
Power: Set COM1 pin 8 to +12V level
RS-232 Data: Set COM1 pin 8 to RI
COM1
(Default)
JP3 Data/Power
Power: Set COM1 pin 1 to +5V level
Selection
RS-232 Data: Set COM1 pin 1 to
DCD (Default)
2
Side View
Setting
1-2 Close
2-3 Close
1-2 Close
2-3 Close
1-3 Close
3-5 Close
2-4 Close
4-6 Close
94193A02010E
©
Copyright 2018 Axiomtek Co., Ltd.
Version A2 February 2018
Printed in Taiwan

Connectors

Connector Description
CN1 Board to Board Connector 1 (Low Speed Signal)
CN2 Board to Board Connector 2 (High Speed Signal)
CN3 +5V Fan Power Connector
CN4 COM1 Wafer Connector
CN5 COM2 Wafer Connector
CN6 System Power Switch
CN7 System Reset Switch
AUDIO1 Audio Connector
USB1 USB 3.0 Port 0
USB2 USB 3.0 Port 1
USB3 USB 3.0 Port 2
USB4 USB 3.0 Port 3
D25 Power and HDD LED Indicator
COM1 and COM2 Wafer Connector (CN4 and CN5)
Pin RS-232 RS-422 RS-485
1 DCD TX- Data-
2 DSR No use No use
3 RXD TX+ Data+
4 RTS No use No use
5 TXD RX+ No use
6 CTS No use No use
7 DTR RX- No use
8 RI No use No use
9 GND No use No use
10 No use No use No use
Audio Connector (AUDIO1)
Pin Signal Pin Signal
1 MIC_IN 2 GND
3 LINE_IN_L 4 GND
5 LINE_IN_R 6 GND
7 AUDIO_OUT_L 8 GND
9 AUDIO_OUT_R 10 GND
94193A02010E
©
Copyright 2018 Axiomtek Co., Ltd.
Version A2 February 2018
Printed in Taiwan
3
