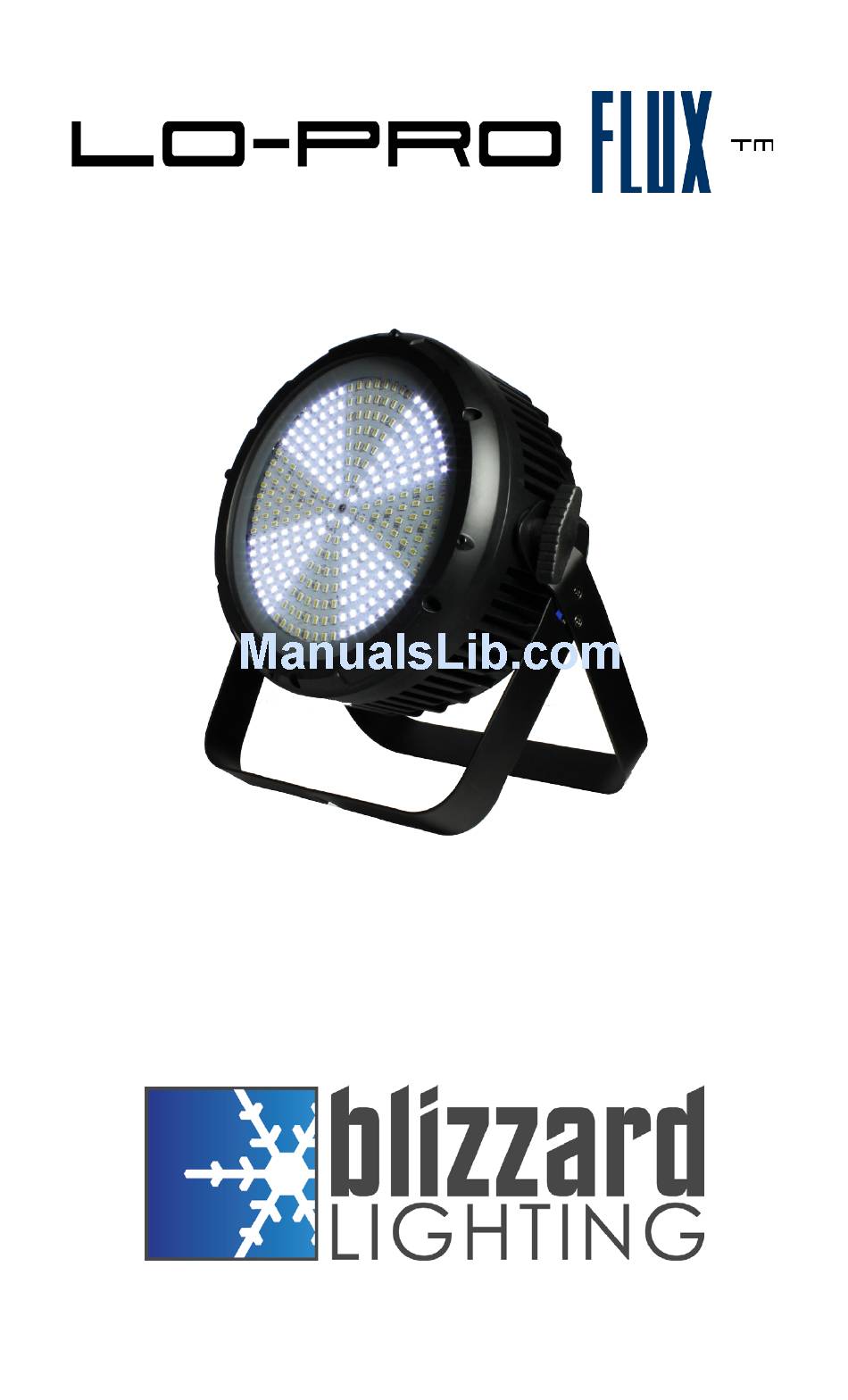

- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2015...
-
Page 2: Table Of Contents
Manual Settings DMX Channel Settings 12-13 Dimensional Drawing Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your Lo-Pro Flux™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC... -
Page 3: Lo-Pro Flux
Congratulations on your purchase of the amazing Lo-Pro Flux™. You may have to wear sunglasses as we travel back to the future! Now that you’ve got your Lo-Pro Flux™ (or hopefully, Flux’s!) , you should carefully unpack the box and check the contents to en- sure that all parts are present and in good condition. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www. blizzardlighting.com/tickets. Page 4 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC... -
Page 5: Meet The Lo-Pro Flux
Built-in Programs Section 4 Section 1 Section 5 Section 2 Section 6 Section 3 Section 7 Section 4 Section 8 Section 5 Section 6 Section 7 Section 8 Page 5 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC... -
Page 6: The Lo-Pro Flux™ Pin-Up Picture

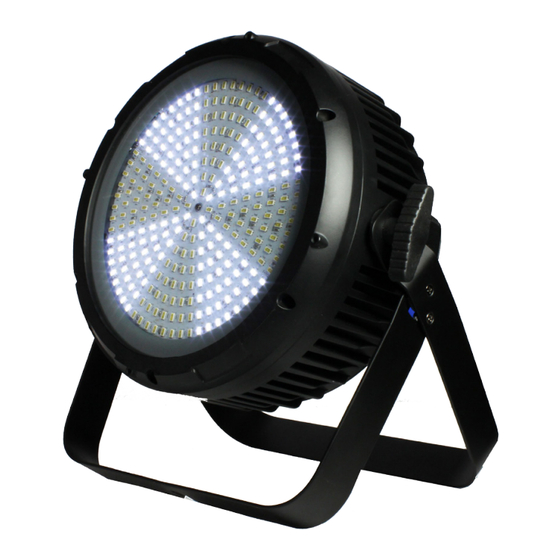

Figure 1: The Lo-Pro Flux™ Pin-Up Picture 288 x .5W SMD5050 LEDs Touring- grade compact shell Two-piece mounting Tightening yoke Knob Figure 2: The Rear Connections LED Display DMX 3-pin In DMX 3-pin Out DMX 5-pin Out DMX 5-pin In... -
Page 7: Setup
3. SETUP Fuse Replacement CAUTION! The Lo-Pro Flux™ utilizes a high-output switch-mode power supply with an internal fuse. Under normal operating conditions, the fuse should not require replacement. The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should your Lo- Pro Flux™... -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
4. OPERATING ADJUSTMENTS The Control Panel All the goodies and different modes possible with the Lo-Pro Flux™ are accessed by using the control panel on the front of the fixture. There are 4 control buttons below the LED display which allow you to navi- gate through the various control panel menus. -
Page 11: Control Panel Menu Structure
Section 3 Intensity NAno 4.000 000-255 Section 4 Intensity 5.000 000-255 Section 5 Intensity 6.000 000-255 Section 6 Intensity 7.000 000-255 Section 7 Intensity 8.000 000-255 Section 8 Intensity Page 11 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC... -
Page 12: Dmx Channel Settings
000 <--> 255 Pixel Section 4 000 <--> 255 Pixel Section 5 000 <--> 255 Pixel Section 6 000 <--> 255 Pixel Section 7 000 <--> 255 Pixel Section 8 Page 12 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC... -
Page 13: Dimensional Drawing
Pixel Section 4 000 <--> 255 Pixel Section 5 000 <--> 255 Pixel Section 6 000 <--> 255 Pixel Section 7 000 <--> 255 Pixel Section 8 Dimensional Drawing Page 13 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC... -
Page 14: Troubleshooting
Verify proper mode of operation. Is the fixture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please open a support ticket at www.blizzardlighting.com/tickets. Page 14 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC... -
Page 15: Appendix
It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 15 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC... -
Page 16: Keeping Your Lo-Pro Flux™ As Good As New
Keeping Your Lo-Pro Flux™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equip- ment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 17: Tech Specs
Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG. Page 17 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC... - Page 18 This page left intentionally blank Page 18 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC...
- Page 19 This page left intentionally blank Page 19 Lo-Pro Flux™ - Rev. A (c) 2015 Blizzard Lighting, LLC...
- Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
