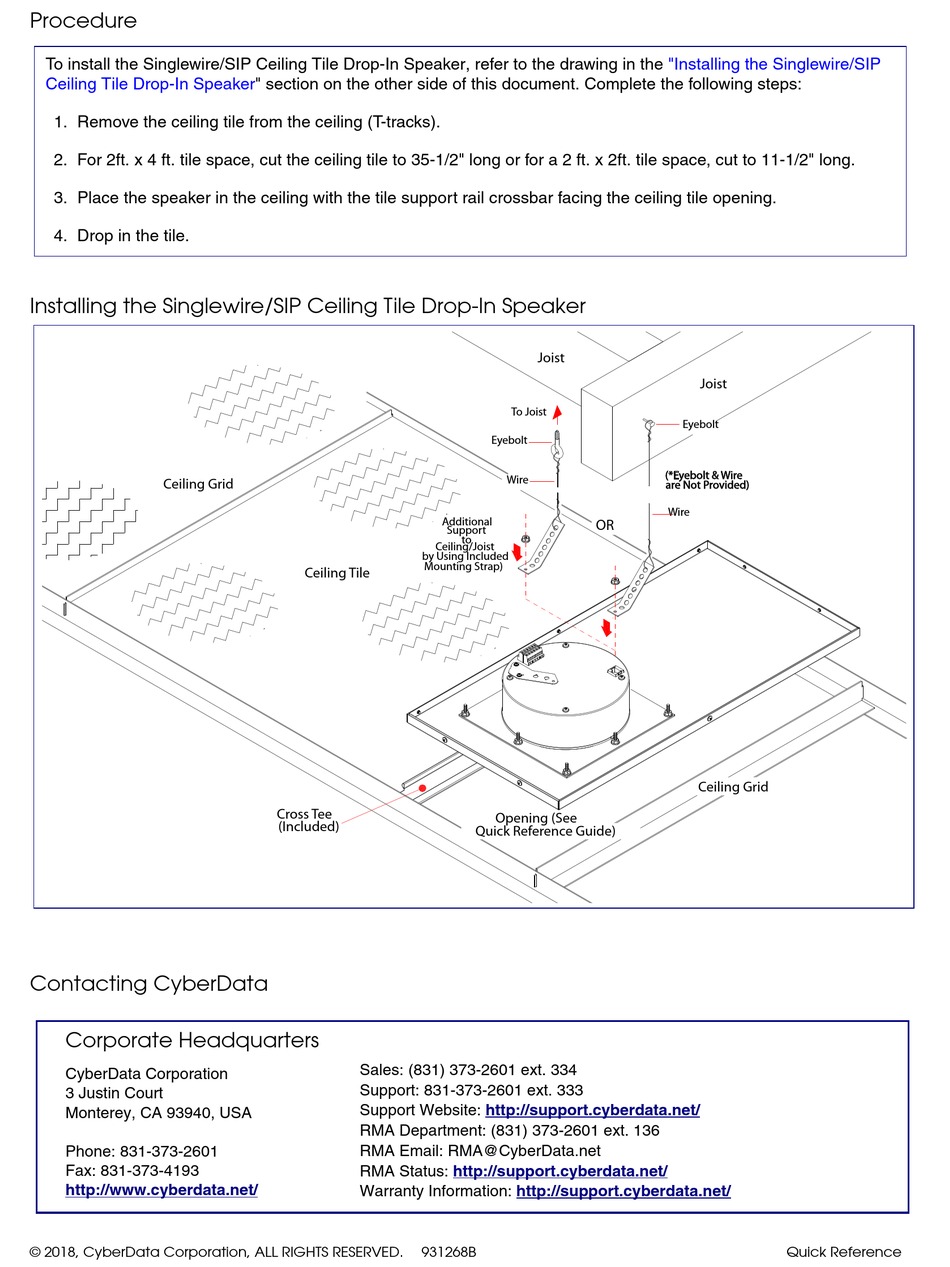

CyberData 011402 Installation Quick Reference page 2

Procedure
To install the Singlewire/SIP Ceiling Tile Drop-In Speaker, refer to the drawing in the
Ceiling Tile Drop-In Speaker" section on the other side of this document. Complete the following steps:
1. Remove the ceiling tile from the ceiling (T-tracks).
2. For 2ft. x 4 ft. tile space, cut the ceiling tile to 35-1/2" long or for a 2 ft. x 2ft. tile space, cut to 11-1/2" long.
3. Place the speaker in the ceiling with the tile support rail crossbar facing the ceiling tile opening.
4. Drop in the tile.
Installing the Singlewire/SIP Ceiling Tile Drop-In Speaker
Ceiling Grid
Contacting CyberData
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA

Phone: 831-373-2601
Fax: 831-373-4193
http://www.cyberdata.net/
© 2018, CyberData Corporation, ALL RIGHTS RESERVED.
Additional
Support
Ceiling/Joist
by Using Included
Mounting Strap)
Ceiling Tile
Cross Tee
(Included)
Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
Support Website:
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
RMA Status: http://support.cyberdata.net/
Warranty Information:
931268B
Joist
To Joist
Eyebolt
Wire
OR
to
Opening (See
Quick Reference Guide)
http://support.cyberdata.net/
http://support.cyberdata.net/
"Installing the Singlewire/SIP
Joist
Eyebolt
(*Eyebolt & Wire
are Not Provided)
Wire
Ceiling Grid
Quick Reference
