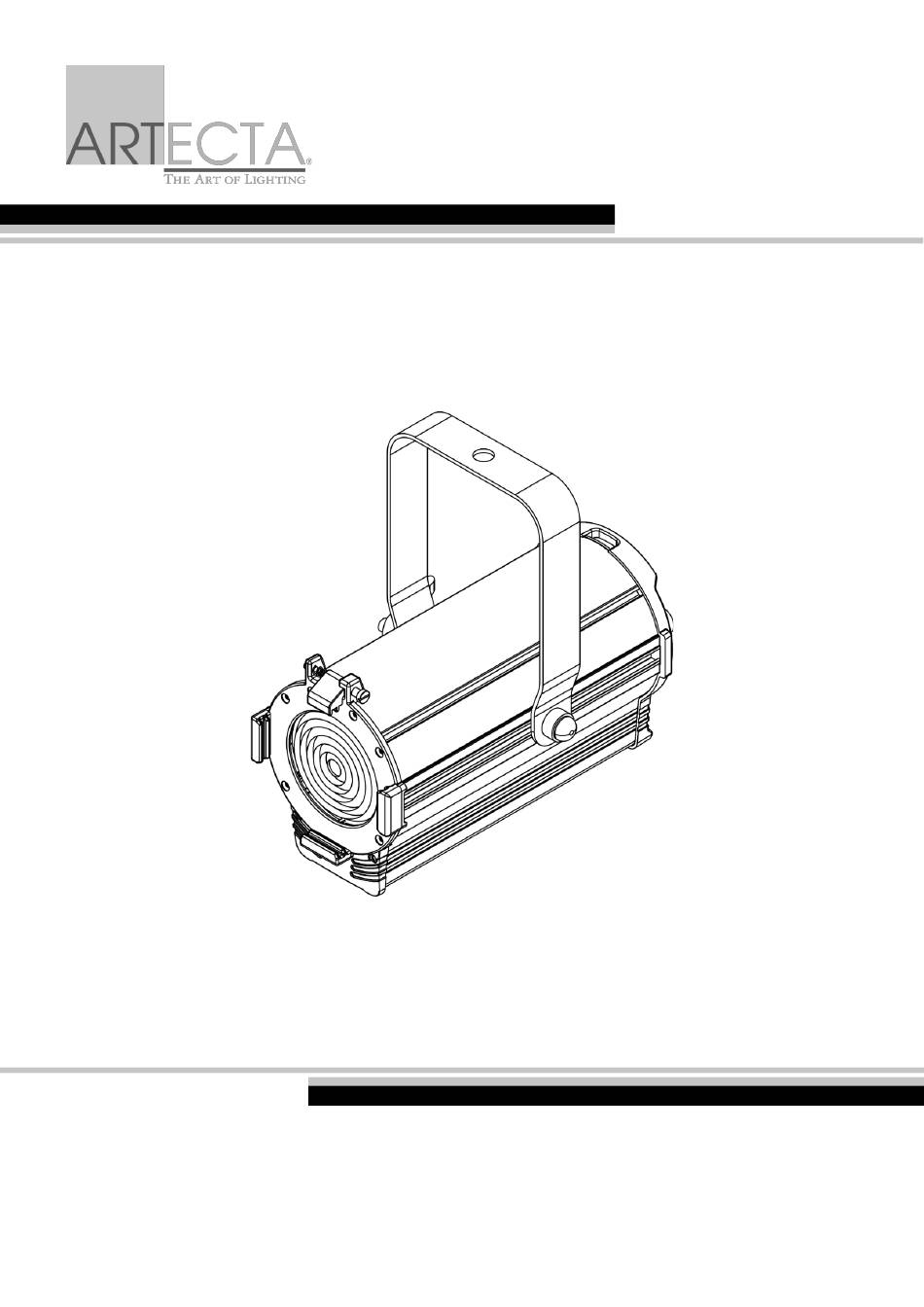

- Page 1 USER MANUAL ENGLISH Display Fresnel 50 SW Product code: A0320110 – Black housing A0320111 – White housing Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Display Fresnel 50 SW Preface Thank you for purchasing this Artecta product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Display Fresnel 50 SW Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 LEDs Lifespan ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety .................................. -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Artecta Display Fresnel 50 SW ● Schuko to pro-power cable (1,5 m) ● Barndoor ●... -
Page 5: Symbols And Signal Words
Display Fresnel 50 SW Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. - Page 6 Display Fresnel 50 SW For adult use only. The device must be installed beyond the reach of children. ● Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within children’s reach. Packaging material is a potential source of danger for children.
-
Page 7: Requirements For The User
Display Fresnel 50 SW ● If the device is dropped or struck, disconnect the device from the electrical power supply immediately. ● If the device fails to work properly, discontinue the use immediately. Attention For professional use only This device shall be used only for the purposes it is designed for. -
Page 8: Description Of The Device

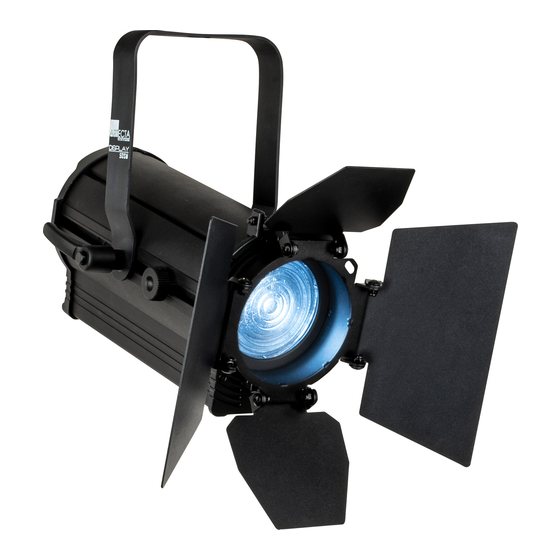

Display Fresnel 50 SW Description of the Device The Artecta Display Fresnel 50 SW is a compact spot suitable for indoor venues, featuring two selectable color temperatures: warm white and cold white. It has manual zooming and a built-in, manually controllable dimmer (5 –... -
Page 9: Barndoor
Display Fresnel 50 SW Barndoor 14) Safety eye (barndoor) Fig. 04 Color frame 15) Safety eye (color frame) Fig. 05 Product code: A0320110 / A0320111... -
Page 10: Product Specifications
Display Fresnel 50 SW Product Specifications Model: Display Fresnel 50 SW Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 55 W PFC: 0,93 Fuse: T1 AL, 250 V Physical: Dimensions: 245 x 165 x 239 mm (L x W x H) (without accessories) -
Page 11: Dimensions
Display Fresnel 50 SW Dimensions Fig. 06 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If the device is installed overhead, the installation must be carried out only by instructed or skilled persons. -
Page 12: Mounting
Display Fresnel 50 SW Mounting The device can be mounted to a supporting structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during mounting. -
Page 13: Angle Adjustment
Fig. 08 Barndoor Installation The Display Fresnel 50 SW is delivered with a barndoor. To install the barndoor, follow the steps below: 01) Push the spring-loaded screw (01) and at the same time lift and flip backwards the color frame clip (02) (see Fig. -
Page 14: Color Frame Installation
Display Fresnel 50 SW Color Frame Installation The Display Fresnel 50 SW is delivered with a color frame. You can insert a color gel or a diffusion filter into the color frame. To install the color frame, follow the steps below: 01) Push the spring-loaded screw (01) and at the same time lift and flip backwards the color frame clip (02) (see Fig. -
Page 15: Connecting To Power Supply
Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: ● at 100–120 V: 10 devices Display Fresnel 50 SW ● at 200–240 V: 20 devices Display Fresnel 50 SW Product code: A0320110 / A0320111... -
Page 16: Operation
Set the color temperature switch (13) to OFF position to turn the device off. Beam Angle Adjustment The beam angle of the Display Fresnel 50 SW can be adjusted manually in the range 18°–58°. To adjust the beam angle, follow the steps below: 01) Turn the zoom control (05) counterclockwise to loosen it. -
Page 17: Troubleshooting
Display Fresnel 50 SW Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 18: Basic Cleaning Instructions
Display Fresnel 50 SW Basic Cleaning Instructions The external lens of the device must be cleaned periodically in order to optimize the light output. The cleaning schedule depends on the conditions at the site where the device is installed. When smoke or fog machines are used at the site, the device will need more frequent cleaning. -
Page 19: Deinstallation, Transportation And Storage
Display Fresnel 50 SW Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and dismounting of the device. - Page 20 ©2020 Artecta...
