Step 6

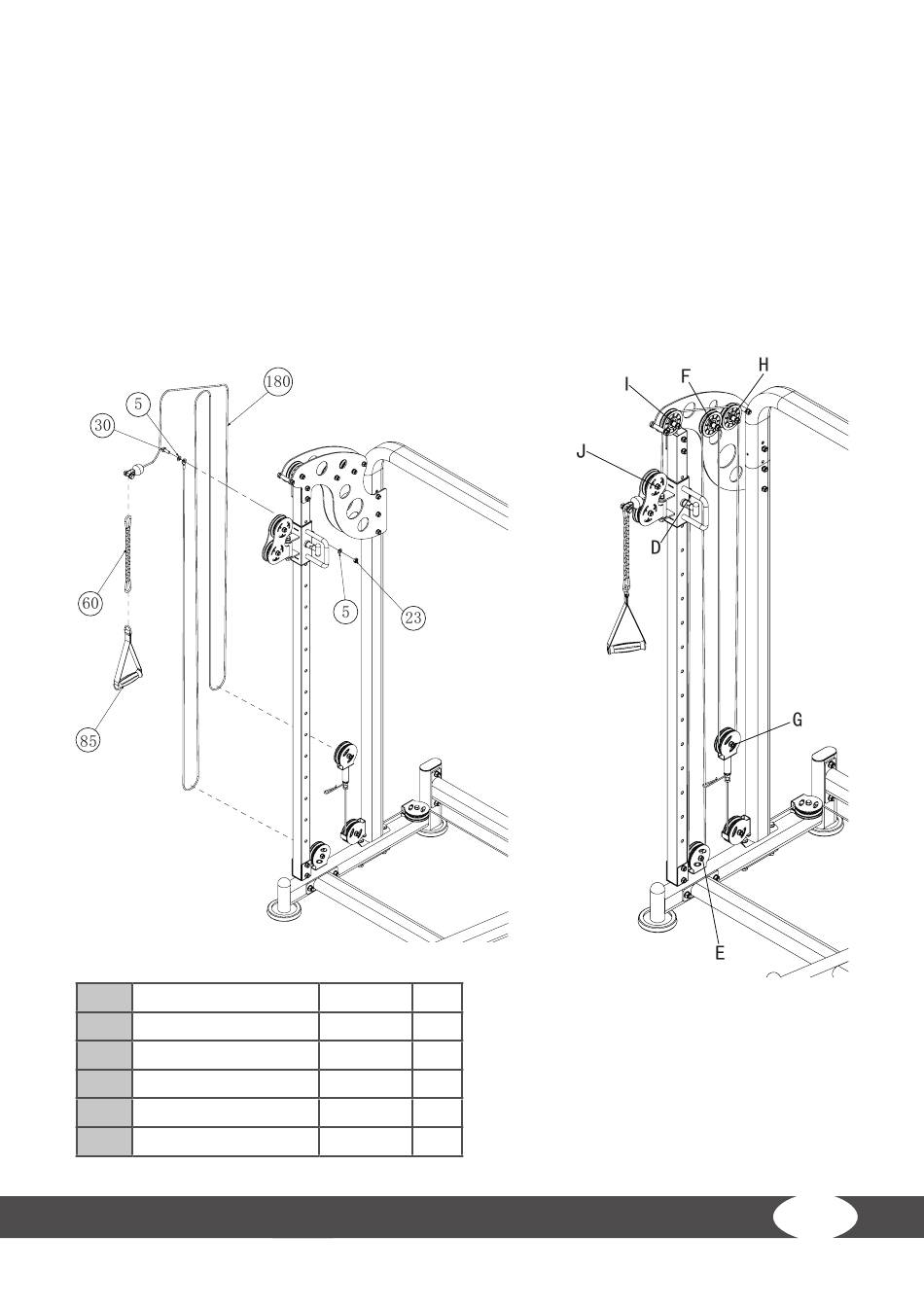

1. Mount the flat, long cable end of the cable tower (180) with M10*25 screw (52), Ф10 washer (5)
and M10 lock nut (23) at point D.
2. Remove the ball end on the long cable of the cable tower (180).
3. Now pull the long cable of the cable tower (180) through the points, starting from D, in the order
E, F, G, H, I, J, see cable drawing.
4. Reattach the ball end to the cable.
5. Hang 9 link chains and carabiners (60) with one end on the handle loop (85) and with the other
end on the long cable of the cable tower (180).
5 washer
23 lock nut
30 hexagon bolt
60 9 link chain & snap hook
85 handle belt
180 pull cable tower long
Φ10 2
M10 1
M10*25 1
1
1
L:7290mm 1
