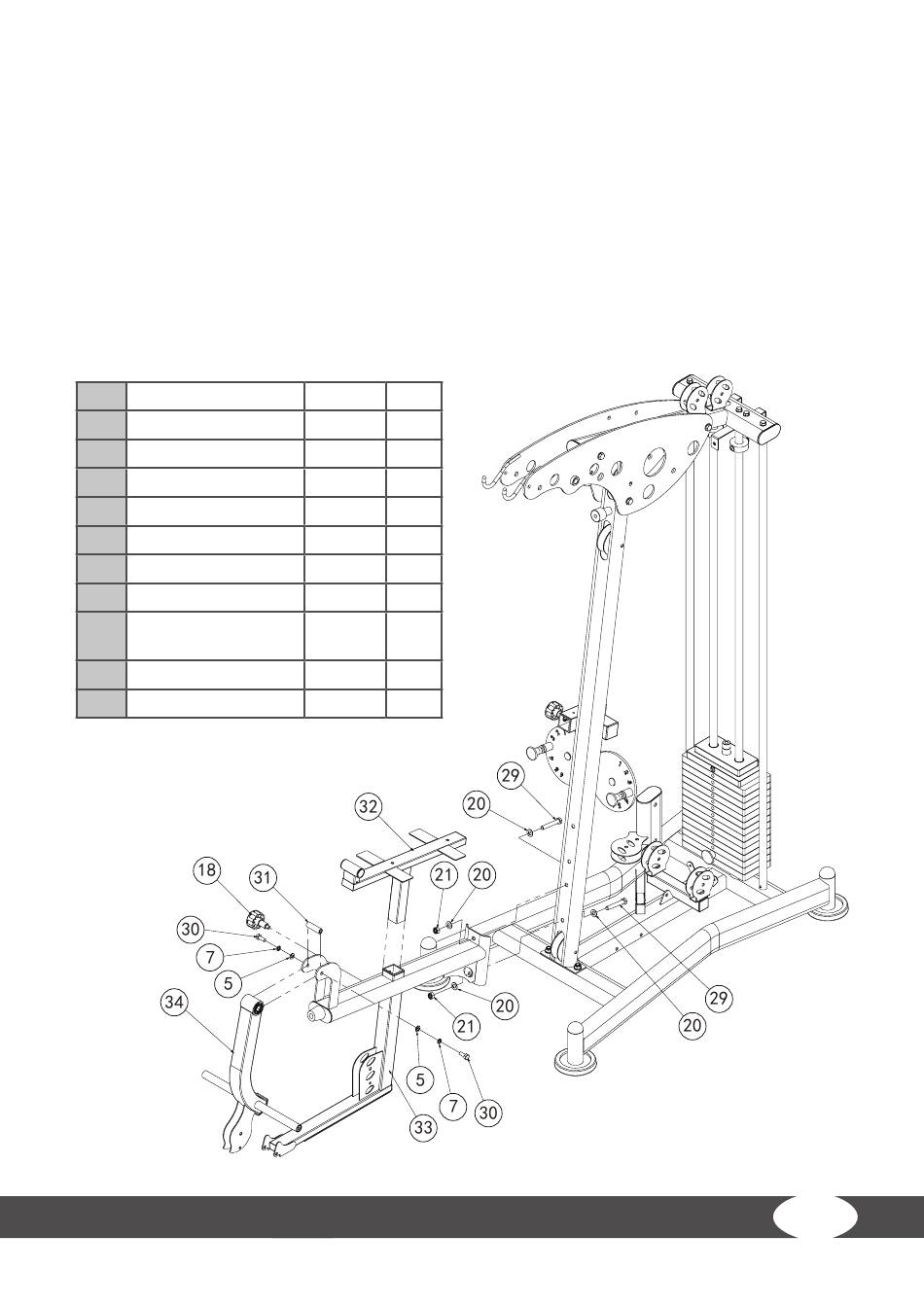

Step 6
1. Mount the seat upholstery tube (33) to the front frame with M12*75 bolts (29), Ф12 washers (20)
and the M12 nuts (21).
2. Mount the leg curl angle tube (34) with rotation axle (31), M10*25 screws (30), Ф10 spring
washers (7) and the Ф10 washers (5) to the seat cushion tube (33).
3. Mount the seat cushion adjustment frame (32) to the seat cushion tube (33) with the pull bolt
(18).
4. Tighten all screws firmly.
5 washer
7 spring washer
18 pull pin
20 washer
21 lock nut
29 hexagon bolt
30 hexagon bolt
31 axis of rotation
32 seat cushion adjust
frame
33 seat cushion tube
34 leg curl elbow tube
Φ10 2
Φ10 2
Φ10 1
Φ12 4
M12 2
M12*75 2
M10*25 2
Φ17*57 1
1
1
1
