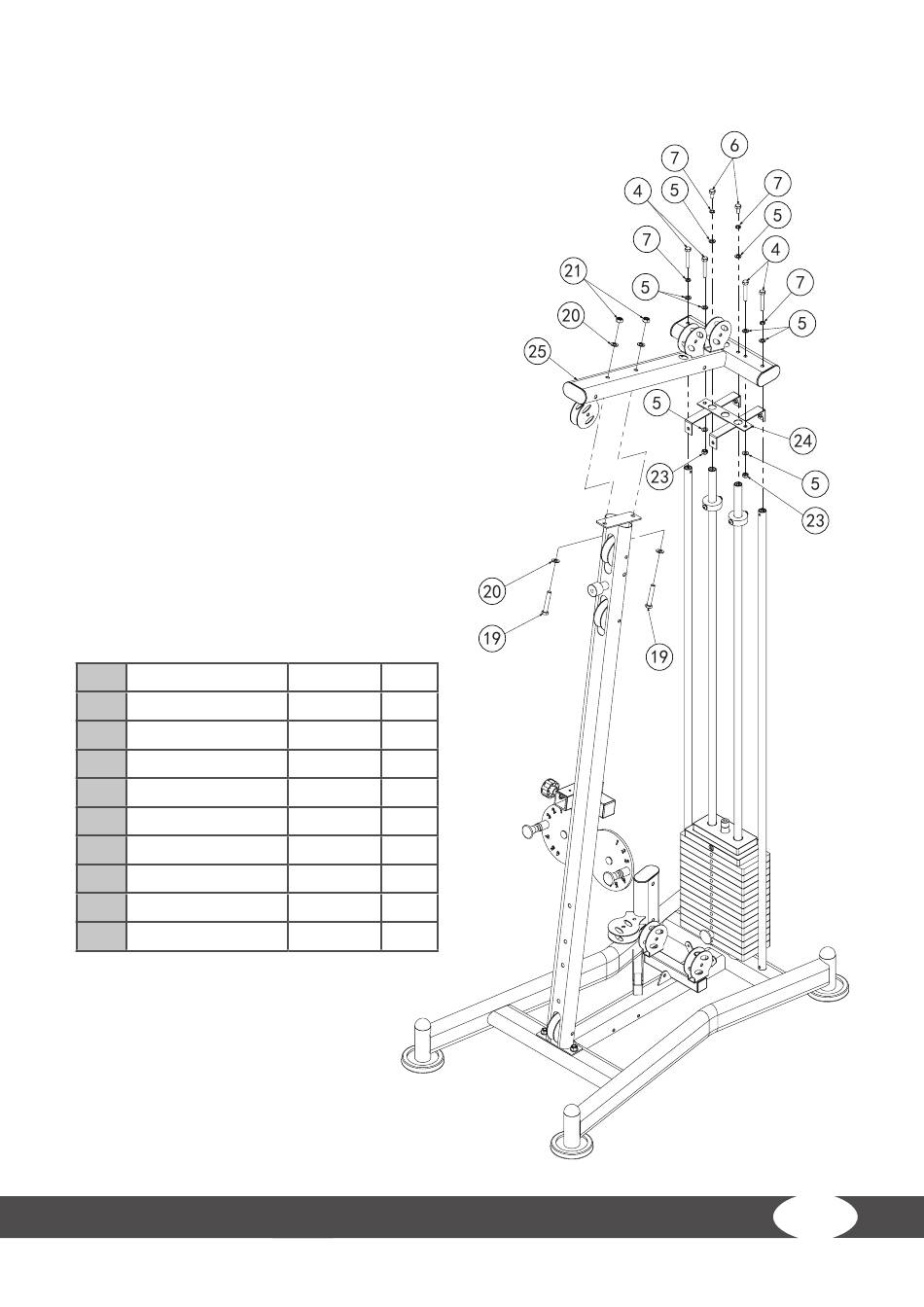

Step 4
1. Put the support frame on (24) on the guide rods.
2. Mount the upper frame (25) with M10*20 screws (6), Ф10
spring washers (7) and Ф10 washers (5) on the guide rods.
3. Secure the upper frame (25) to the front frame with
M12*70 bolts (19), Ф12 washers (20) and M12 nuts
(21).
4. Mount the upper frame (25) with M10*65 bolts (4),
Ф10 spring washers (7) and Ф10 washers (5) to
the rear support bars.
5. Mount the support frame (24) with M10*65
bolts (4), Ф10 washers (5) M10 nuts (23) to the
upper frame (25).
6. Tighten all screws firmly.
4 hexagon bolt
5 washer
6 hexagon bolt
7 spring washer
19 hexagon bolt
20 washer
21 lock nut
23 lock nut
24 shield support frame
25 upper frame
M10*65 4
Φ10 8
M10*20 2
Φ10 4
M12*70 2
Φ12 4
M12 2
M10 2
1
1
