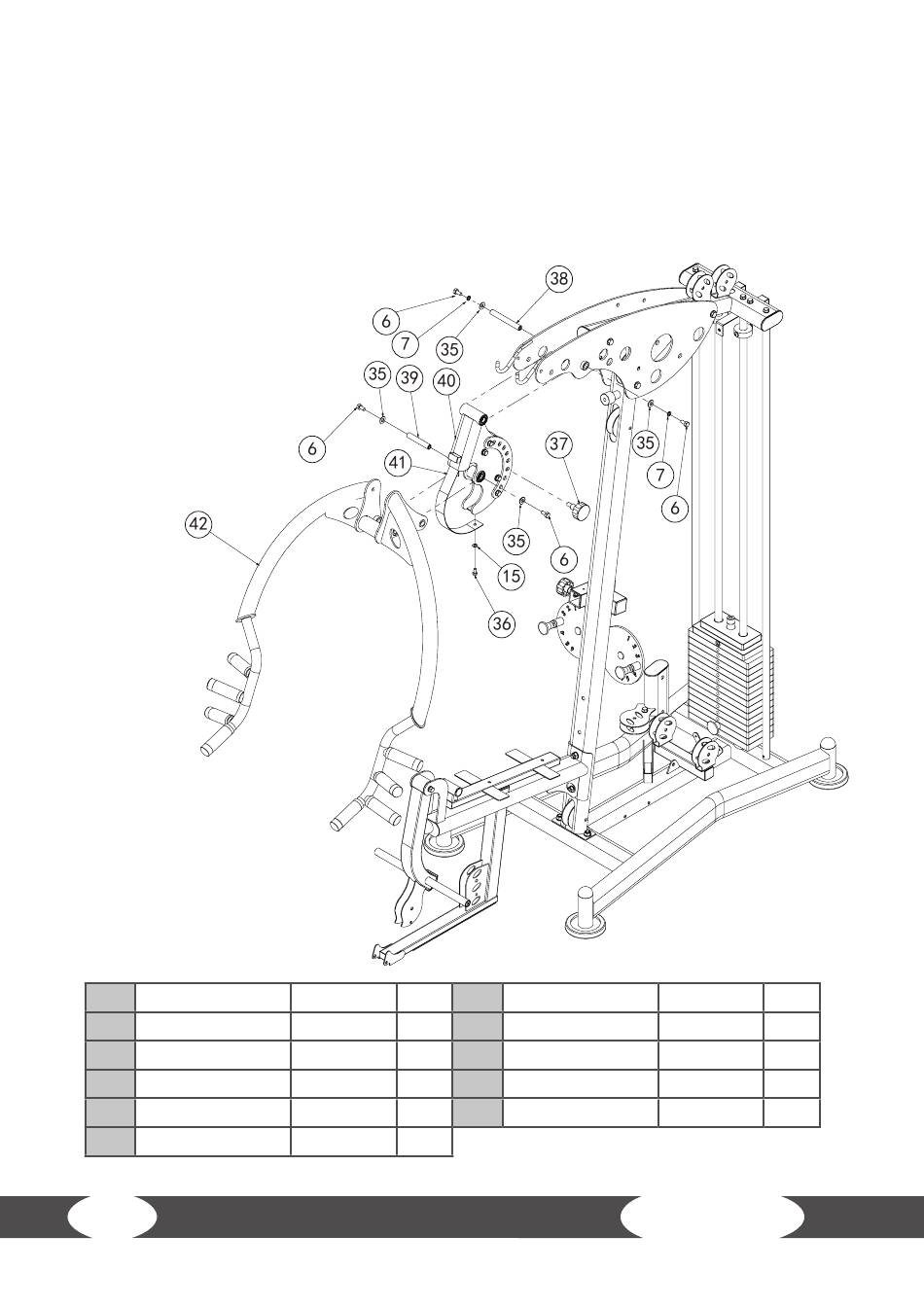

Step 7
1. Mount the bracket (40) with the axle (38), M10*20 screws (6), Ф10 spring washers (7), Ф10
washer (35) between the two covers.
2. Mount the chest press module (42) to the bracket (40) with the axle (39), M10*20 bolts (6), Ф10
washers (35) and the draw bolt (37).
3. Fit the mudguard (41) to the bracket (40) with M8*16
(36) and Ф8 washer (15).
4. Tighten all screws firmly.
6 hexagon bolt
7 spring washer
15 washer
35 big washer
36 hexagon bolt
37 pull pin
