2.3

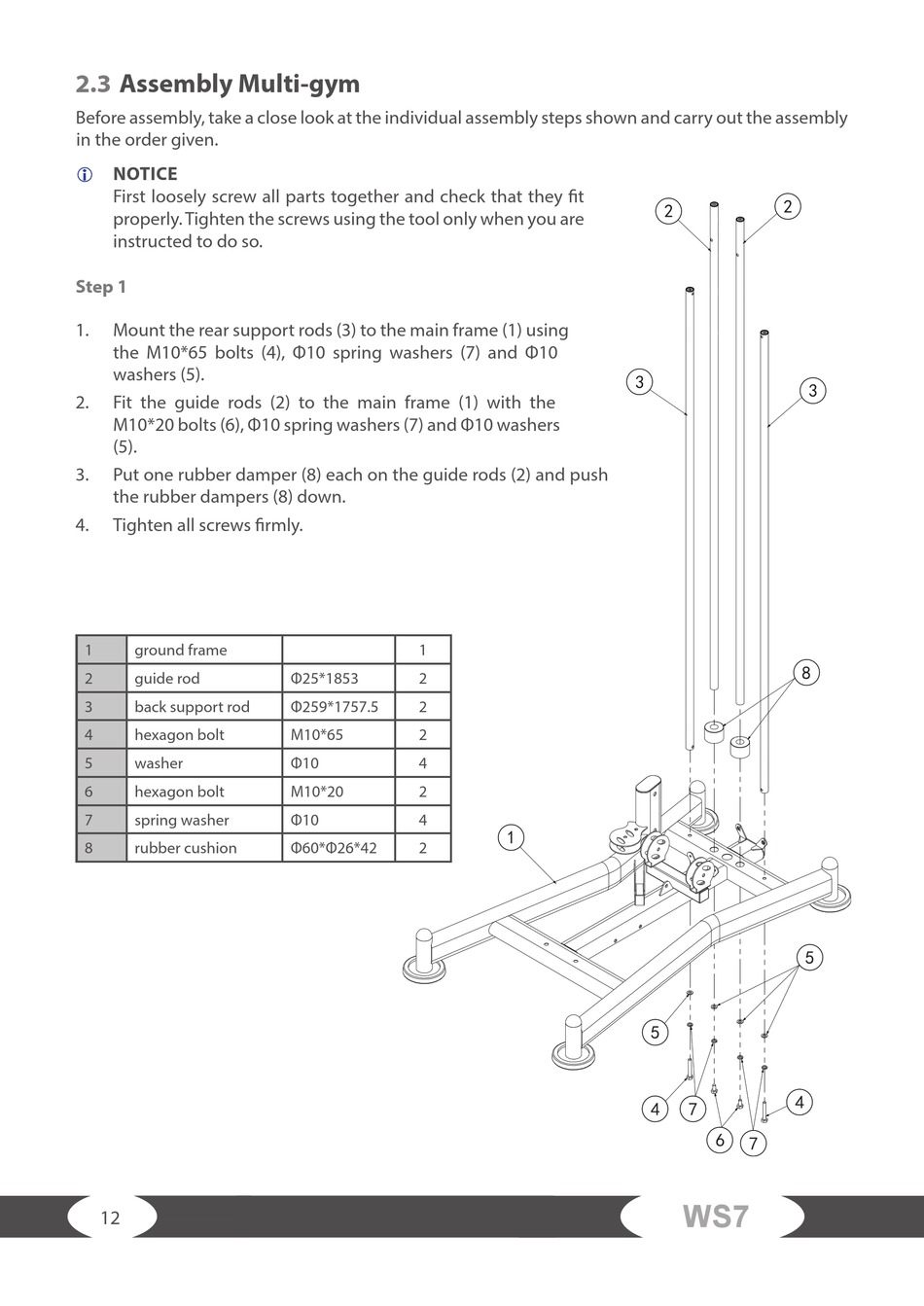

Assembly Multi-gym

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
First loosely screw all parts together and check that they fit
properly. Tighten the screws using the tool only when you are
instructed to do so.
Step 1
1. Mount the rear support rods (3) to the main frame (1) using
the M10*65 bolts (4), Ф10 spring washers (7) and Ф10
washers (5).
2. Fit the guide rods (2) to the main frame (1) with the
M10*20 bolts (6), Ф10 spring washers (7) and Ф10 washers
(5).
3. Put one rubber damper (8) each on the guide rods (2) and push
the rubber dampers (8) down.
4. Tighten all screws firmly.
1 ground frame
2 guide rod
3 back support rod
4 hexagon bolt
5 washer
6 hexagon bolt
7 spring washer
8 rubber cushion
12
1
Φ25*1853 2
Φ259*1757.5 2
M10*65 2
Φ10 4
M10*20 2
Φ10 4
Φ60*Φ26*42 2
WS7
