CAME F40230E Installation Manual

CAME F40230E Installation Manual

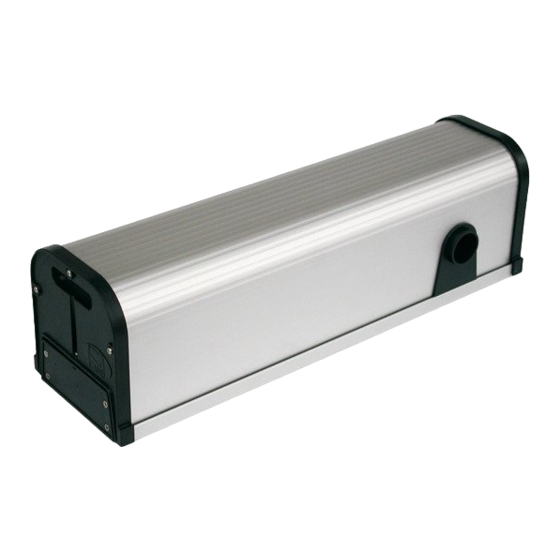

Gearmotor for swing or folding doors
Hide thumbs Also See for F40230E:

Advertisement

Quick Links

GEARMOTOR
FOR SWING OR FOLDING DOORS
FA00034 -E N
INSTALLATION MANUAL
F40230E - F4024E - F4024EP
EN
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F40230E and is the answer not in the manual?

Questions and answers

Summary of Contents for CAME F40230E

  • Page 1 GEARMOTOR FOR SWING OR FOLDING DOORS FA00034 -E N INSTALLATION MANUAL F40230E - F4024E - F4024EP English...
  • Page 2 • Employ this product only for the use for which it was expressly made. Any is the only maintenance operation to do with the power on. Constantly clean other use is dangerous. CAME S.p.A is not liable for any damage caused by the photocells' glass covers using a slightly water-moistened cloth; do not use improper, wrongful and unreasonable use •...
  • Page 3 ☞ This symbol tells you what to say to the end users. REGULATORY REFERENCES Came S.p.A. is a company certified for enterprise management systems: quality ISO 9001 and environment ISO 14001. The product in question complies with the regulations referred to in the declaration of conformity.
  • Page 4: Dimensions (Mm)

    Dimensions (mm) Description of the components Gearmotor Cap with hole UNI 5931 M8x120 screw UNI 5588 M8 nut Spring Release handle Endstop device...
  • Page 5: Example Of A System

    Example of a system Gearmotor Photocells Transmission arm with slide guide Gearmotor release Control panel with radio receiver Photocell post Flashing light with antenna...
  • Page 6: Examples Of Use

    Examples of use One Door with two leaves One Door with two leaves Foldingleaf consisting of two hinged panels. The Foldingleaf consisting of two hinged panels. The gearmotor is fitted onto panel (A) gearmotor is fitted onto panel (B) Singleswing leaf Singleswing leaf ❶...
  • Page 7: General Installation Instructions

    GENERAL INSTALLATION INSTRUCTIONS ⚠ The installation must be done by qualified expert technicians and in full compliance with applicable laws and regulations. Preliminary checks ⚠ Before beginning, do the following: • Provide a suitable single-pole disconnection device, with a maximum of 3 mm between the contacts, to disconnect the power supply;...
  • Page 8: Installation

    INSTALLATION ⚠ The following illustrations are mere examples. Consider that the space available where to fit the operator and accessories will vary depending on the overall measurements. The installation technician is responsible for choosing the most suitable solution. Setting up corrugated tubing Set up the corrugated (Ø...
  • Page 9 Anchoring the base and the slide guide Caution! Respect the quotas shown in the drawing. APPLICATION ON DOUBLE LEAF DOOR APPLICATION ON SINGLE LEAF DOOR    ...
  • Page 10 Fixing the transmission arm APPLICATION ON FOLDING APPLICATION ON SWING-LEAF DOOR DOOR Releasing the gearmotor...
  • Page 11 Securing the gearmotor Fit the arm into the guideand the gearmotor onto the base plate. Fasten the gearmotor using the two M8 x 110 bolts and their M8 nuts (supplied). Fit the hole caps and guide caps. N.B. Use suitable cable glands for threading the cables and the release cable. APPLICATION ON DOUBLE LEAF DOOR APPLICATION ON SINGLE LEAF DOOR ...
  • Page 12 Warning! If no mechanical door stops are in place, you must adjust the endstops. Determining the end run points Cams Fit the cams onto the guide. Cam guide During closing: - fully close the door leaf; - turn the cam clockwise until the closing microswitch activates. - fasten the cam using the screw.
  • Page 13 During opening: - fully open the door leaf; - turn the cam counter clockwise until the opening microswitch is activated. - fasten the cam using the screw. Opening microswitch Opening microswitch...
  • Page 14: Electrical Connections

    ELECTRICAL CONNECTIONS F40230E ZM3E Delayed closing action gearmotor Delayed opening action gearmotor...
  • Page 15 F4024E - F4024EP ZLJ14 control panel for doors with one leaf M N E + E - ZLJ24 control panel for doors with two leaves M1 N1 E1 + E - M2 N2 E2 + E - Delayed opening action gearmotor Delayed closing action gearmotor...
  • Page 16: Final Operations

    FINAL OPERATIONS Fasten the cover and the release handle Fit the frame cover. Ø 13.5 mm. UNI 6954 Ø 3.9x13 washer and screw.
  • Page 17: Troubleshooting

    RELEASING THE GEARMOTOR ⚠ Perform this job only after cutting off the power supply. Emergency release with release handle applied to the automation. TROUBLESHOOTING PROBLEMS POSSIBLE CAUSES CHECKS AND REMEDIES • The door does not • No power • Check for mains power open or close •...
  • Page 18: Periodic Maintenance

    MAINTENANCE Periodic maintenance ☞ Before doing any maintenance, cut off the power supply, to prevent any hazardous situations caused by accidentally activating operator. Periodic maintenance log kept by users (every six months) Date Notes Signature Extraordinary maintenance ⚠   The table below is used to note any extraordinary maintenance, repairs or improvements carried out by specialist companies.
  • Page 19: Dismantling And Disposal

    System at its plants, to ensure environmental protection. Please continue our efforts to protect the environment, something that CAME considers to be one of the foundations in developing its business and market strategies, simply by observing these brief recommendations regarding disposal: DISPOSAL OF PACKAGING Packaging components (cardboard, plastic etc.) can be disposed of together with normal household waste without any difficulty,...
  • Page 20 Came S.p.A. Came S.p.A. Via Martiri Della Libertà, 15 Via Cornia, 1/b - 1/c 31030 Dosson di Casier Dosson di Casier 33079 Sesto al Reghena Sesto al Reghena Treviso Treviso - Italy Pordenone Pordenone - Italy (+39) 0422 4940 (+39) 0434 698111...

This manual is also suitable for:

F4024eF4024ep
