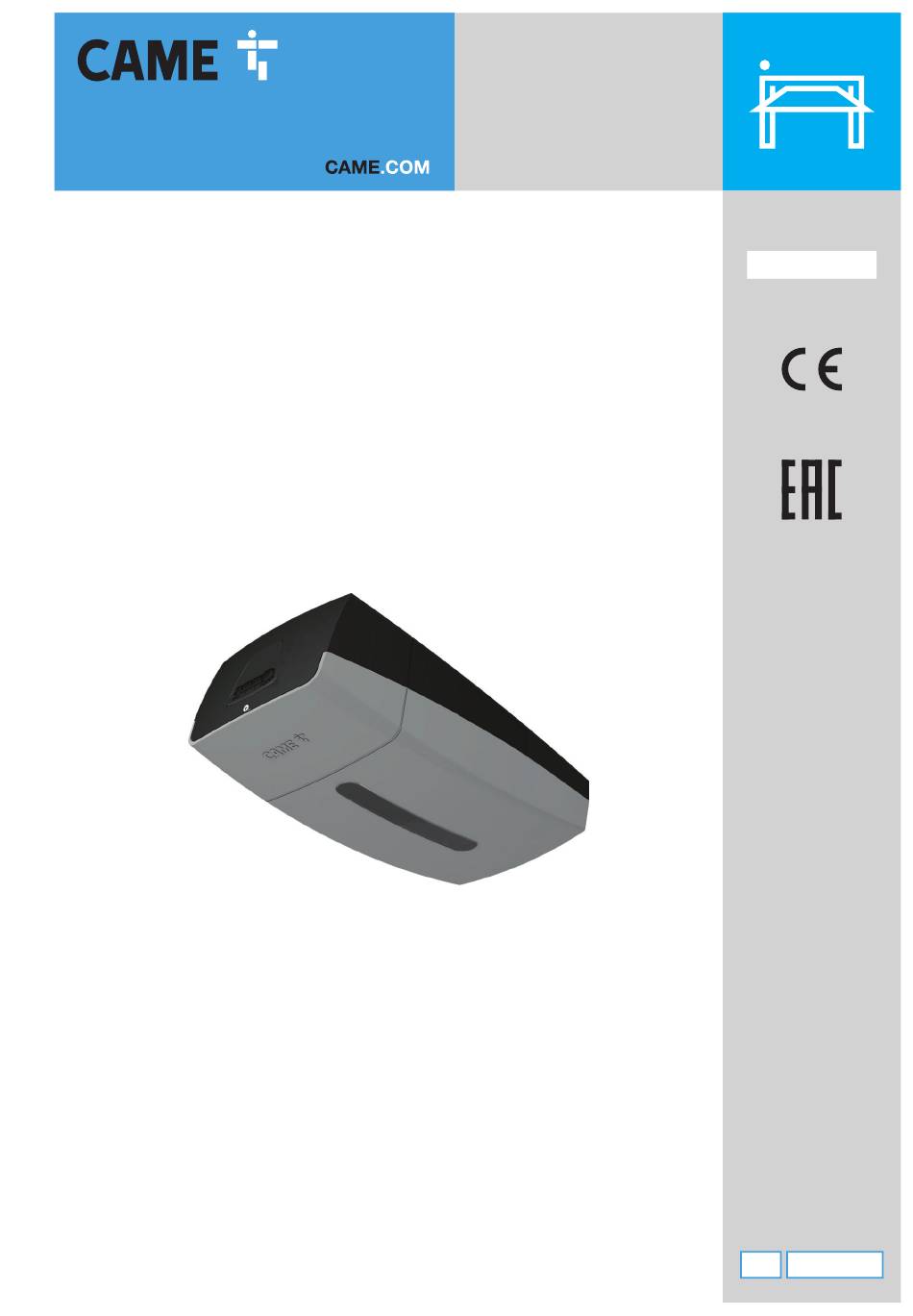

Page 1 Garage door operators FA02063-EN VER10DMS VER13DMS English INSTALLATION MANUAL...
Page 3 GENERAL PRECAUTIONS FOR INSTALLERS Important safety instructions. Please follow all of these instructions. Improper installation may cause serious bodily harm. Before continuing, please also read the general precautions for users. Only use this product for its intended purpose. Any other use is hazardous. • The manufacturer cannot be held liable for any damage caused by improper, unreasonable or erroneous use.
Page 4: Maintenance
DISMANTLING AND DISPOSAL CAME S.p.A. employs an Environmental Management System at its premises. This system is certified and compliant with the UNI EN ISO 14001 standard to ensure that the environment is respected and safeguarded. Please continue safeguarding the environment. At CAME we consider it one of the fundamentals of our operating and market strategies.
Page 5 The measurements, unless otherwise stated, are in millimetres. Description 801MV-0010 VER10DMS – Operator with encoder, complete with control panel for sectional and overhead garage doors. 801MV-0020 VER13DMS – Operator with encoder, complete with control panel for sectional and overhead garage doors.
Page 6: Description Of Parts
Housing for two emergency batteries Guide bracket Control board Additional accessories (not included) Battery compartment Guide Transformer Mechanical stop Gearmotor Slide with release lever Ceiling brackets Support rods Door bracket Chain or belt Transmission arm (VER10DMS)* (*) Only for sectional doors.
Page 7: Control Board
Terminal board for CRP connection Accessories fuse Terminal board for connecting the safety devices Connector for CAME KEY device / Wi-Fi – BLE Gateway / Slave module Terminal board for connecting control devices RSE card connector Terminal board for connecting the signalling devices...
Page 8 (**) The average product life specified should be understood purely as an indicative estimate. It applies to normal usage conditions and where the product has been installed and maintained in compliance with the instructions provided in the CAME technical manual. The average product life is also affected, including significantly,...
Page 9 Cable types and minimum thicknesses Cable length (m) up to 20 from 20 to 30 Power supply 230 V AC 3G x 1.5 mm² 3G x 2.5 mm² 24 V AC/DC flashing beacon 2 x 0.5 mm² 2 x 0.5 mm² Mini KLT flashing beacon 3 x 0.5 mm²...
Page 10: Installation
INSTALLATION The following illustrations are examples only. The space available for fitting the operator and accessories varies depending on the area where it is installed. It is up to the installer to find the most suitable solution. Preparing the guide M6 x 20 Positioning the guide Sectional doors...
Page 11 Fastening the guide Fasten the guide in the middle of the door opening using screws. Position the guide horizontally and make sure you carefully measure the distance from the ceiling, leaving sufficient space, before fastening the guide. Use the brackets to fasten the guide directly to the ceiling. If the brackets are not sufficient, use additional support rods and adapt them to the desired height.
Page 12 Fitting the transmission arm to the door Fit the transmission arm bracket to the upper beam on the door, perpendicular to the traction guide. Fix the bracket using the screws provided or other suitable screws. Fasten the transmission arm to the slide using the bolt supplied. Fastening the operator to the guide Fasten the operator to the guide using the screws supplied.
Page 13 Setting up the operator Make a hole in the cable gland. Thread the cables through the cable gland.
Page 14: Electrical Connections
ELECTRICAL CONNECTIONS Passing the electrical cables Connect all wires and cables in compliance with the law. The electrical cables must not touch any parts that may overheat during use (such as the motor and transformer). Use membrane cable glands to connect the devices to the control panel. One of these must be intended exclusively for the power supply cable. Power supply Before working on the control panel, disconnect the mains power supply and remove the batteries, if any.
Page 15 Maximum capacity of contacts The total power of the outputs listed below must not exceed the maximum output power [Accessories] Device Output Power supply (V) Maximum power (W) Accessories 10 - 11 24 AC Flashing beacon 10 - E 24 AC Additional light 10 - E 24 AC...
Page 16: Signalling Devices
Signalling devices Additional light It increases the light in the manoeuvring area. Flashing beacon It flashes when the operator opens and closes. Operator status warning light It notifies the user of the operator status. Safety devices During programming, configure the type of action that must be performed by the device connected to the input. Connect the safety devices to the CX and/or CY inputs.
Page 17 DIR / DELTA-S photocells Standard connection Connection with safety test See function [F5] Safety devices test. 2 TX C NC 2 TX C NC DXR/DLX photocells Standard connection DXR/DLX photocells Connection with safety test See function [F5] Safety devices test. 10 11 OUT 10 11 OUT 10 11 SY...
Page 18: Final Operations
FINAL OPERATIONS...
Page 19: Getting Started
PROGRAMMING Programming button functions ESC button The ESC button is used to perform the operations described below. Exit the menu Delete the changes Go back to the previous screen Stop the operator (outside the programming menu) < > buttons The < > buttons are used to perform the operations described below. Navigate the menu Increase or decrease values <...
Page 20 Total stop This stops the operator and excludes automatic closing. Use a control device to resume movement. With the input open, this function excludes all commands, including any automatic closing. OFF (Default) CX input Associate a function with the CX input. OFF (Default) C1 = Reopen while closing (photocells) C2 = Reclose while opening (photocells)
Page 21 Obstacle with motor stopped With the function active and the operator stopped, an open or close command is not performed if the safety devices detect an obstacle. OFF (Default) Passage-open warning light Signal the door status. The device is connected to output/terminal 5. F10 is disabled if the [F18 –...
Page 22 Pre-flashing time Adjust the time for which the beacon connected to 10-E is activated before each manoeuvre. OFF (Default) 1 to 10 seconds Courtesy time Define how many seconds the additional light (set up as courtesy light) stays on after an opening or closing manoeuvre. 60 to 180 seconds (Default 60) Opening speed Set the opening speed as a percentage.
Page 23 1% to 50% (Default 5%) RSE communication Enable CRP. 3 = CRP/CAME KEY (Default) Save data Save user data, timings and configurations to the memory device (memory roll). The function is displayed only when a memory roll card is inserted into the control board.
Page 24 New user Register up to a maximum of 250 users and assign a function to each one. The operation can be carried out by using a transmitter or another control device. The boards that manage the control devices (AF - R700 - R800) must be inserted into the connectors.
Page 25: Import/Export Data
Parameter reset Restores the factory settings, including the travel calibration settings. OFF (Cancel operation) ON (Run operation) Manoeuvre counter View the number of operator manoeuvres. 001 = 100 manoeuvres / 010 = 1000 manoeuvres /100 = 10000 manoeuvres / 999 = 99900 manoeuvres / CSI = maintenance job Tot = total manoeuvres - Manoeuvres performed since the operator was installed.
Page 26: Error Messages
DISPLAY WARNINGS KEY C<n> Wired safety device active The <n> value is associated with the selected parameter for the functions [F2 - CX input] [F3 - CY input]. R7 safety device (sensitive edge) active R8 safety device (sensitive edge) active Total stop active P<n>...
Page 28 AFFIX THE PRODUCT LABEL FROM THE BOX HERE CAME S.p.A. Via Martiri della Libertà, 15 31030 Dosson di Casier Treviso – Italy Tel. (+39) 0422 4940 Fax (+39) 0422 4941 info@came.com - www.came.com...
