- Page 1 Ruijie Reyee RG-ES126FGS-P Switch Hardware Installation and Reference Guide Document Version: V1.0 Date: 2024.03.24 Copyright © 2024 Ruijie Networks...
- Page 2 All rights are reserved in this document and this statement. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited.
-
Page 3: Preface
Intended Audience This document is intended for: Network engineers Technical support and servicing engineers Network administrators Technical Support The official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee Technical Support Website: https://www.ruijienetworks.com/support Case Portal: https://www.ruijienetworks.com/support/caseportal Community: https://community.ruijienetworks.com... - Page 4 Note This manual provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors. It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts.
-
Page 5: Table Of Contents
Contents Preface ..............................I 1 Product Overview ..........................1 1.1 Package Contents........................1 1.2 Product Appearance ........................2 1.2.1 Front Panel ........................2 1.2.2 Rear Panel ........................3 1.3 Technical Specifications ......................4 1.4 Cooling ............................5 2 Preparing for Installation ........................6 2.1 Safety Precautions ........................ - Page 6 2.2.8 Lightning Protection Requirements ................10 2.2.9 Installation Site Requirement ..................10 2.3 Rack Installation Requirements ....................10 2.4 Tools ............................11 3 Installing the Switch ........................12 3.1 Before You Begin ........................12 3.2 Precautions ..........................12 3.3 Mounting the Switch ........................ 12 3.3.1 Rack Installation Requirements ...................
-
Page 7: Product Overview
Hardware Installation and Reference Guide Product Overview Product Overview RG-ES126FGS-P is a PoE switch with high performance and multiple working modes. The switch provides 24 10/100 Mbps self-adaptive Ethernet RJ45 ports, one 10/100/1000 Mbps self-adaptive Ethernet RJ45 port, and one GE combo port. All ports have line-rate forwarding performance, contributing to greater network flexibility. Featuring highly-integrated design and easy operation, the device is applicable for security monitoring and Wi- Fi hotspots arrangement. -
Page 8: Product Appearance

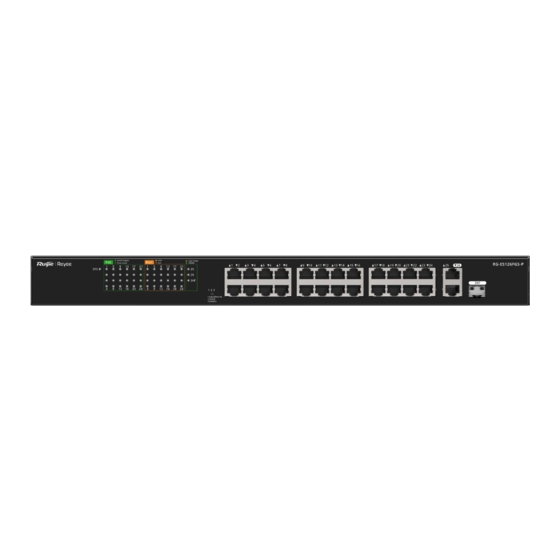

Hardware Installation and Reference Guide Product Overview Product Appearance The RG-ES126FGS-P switch provides 24 10/100 Base-TX self-adaptive Ethernet ports, one 10/100/1000 Base- TX GE port, one 10/100/1000 Base-TX combo port, one DIP switch, one system status LED, and other LEDs on the front panel. -
Page 9: Rear Panel
Hardware Installation and Reference Guide Product Overview Item Description Flashing green: The port is transmitting and receiving data at 1000 Mbps. Off: The port is not connected. 10/100/1000 Base-TX Combo Solid orange: The port has made a successful 10/100 Mbps link. Port LED Flashing orange: The port is transmitting and receiving data at 10/100 Mbps. -
Page 10: Technical Specifications
Hardware Installation and Reference Guide Product Overview Table 1-3 Rear Panel Specifications Item Description Grounding Stud Connect the grounding stud to the protection ground with the grounding cable to provide grounding protection. AC Input Plug Connect the power cord to the AC input plug to power on the switch. -
Page 11: Cooling
Hardware Installation and Reference Guide Product Overview Operating 0° C to 45° C (32° F to 113° F) Temperature Storage –40º C to 70º C (–40º F to 158º F) Temperature Operating 10% to 90% RH (non-condensing) Humidity Storage Humidity 5% to 95% RH (non-condensing) Lightning Protection (Port... -
Page 12: Preparing For Installation
Hardware Installation and Reference Guide Preparing for Installation Preparing for Installation Safety Precautions Note To avoid device damage and physical injury, please read the safety precautions carefully before installing the device. The following safety precautions may not cover all possible dangers. 2.1.1 General Safety Precautions ... -
Page 13: Electrostatic Discharge Safety
Hardware Installation and Reference Guide Preparing for Installation Select a correct leakage protector (also referred to as “leakage current switch” or “leakage current breaker”) for the power supply system. When there is a risk of leakage and electric shock, the power supply is automatically disconnected. -
Page 14: Ventilation Requirements
Hardware Installation and Reference Guide Preparing for Installation 2.2.2 Ventilation Requirements Maintain a proper clearance around the device for air circulation and normal heat dissipation. After various cables are connected, bundle the cables or place them in the cable management bracket to avoid blocking air inlets. -
Page 15: Grounding Requirements
Hardware Installation and Reference Guide Preparing for Installation Apart from dust, the salt, acid, and sulfide in the air in the server room must meet strict requirements. These harmful substances will accelerate metal corrosion and component aging. Therefore, the equipment room should be properly protected against the intrusion of harmful gases, such as sulfur dioxide, hydrogen sulfide, nitrogen dioxide, and chlorine gas. -
Page 16: Anti-Interference Requirements
Hardware Installation and Reference Guide Preparing for Installation Grounding required for electromagnetic compatibility (EMC) includes shielded grounding, filter grounding, noise and interference suppression, and level reference, which contribute to the overall grounding requirements. The grounding resistance should be less than 1 ohm, and the grounding lugs of the cabinet should be grounded before the running of the device. -
Page 17: Tools
Hardware Installation and Reference Guide Preparing for Installation Figure 2-1 A Standard 19-inch Rack (3) The distance between the square hole strip on the rack column and the outer side of the front cabinet door is greater than 180 mm (7.09 in.) and the thickness of the front cabinet door is less than 25 mm (0.98 in.). Therefore, the available space is greater than 155 mm (6.10 in.). -
Page 18: Installing The Switch
Hardware Installation and Reference Guide Installing the Switch Installing the Switch Caution Ensure that requirements in Chapter 2 are all met. Before You Begin The installation site provides sufficient space for heat dissipation. The installation site meets the temperature and humidity requirements of the device. ... -
Page 19: Rack Installation Requirements
Hardware Installation and Reference Guide Installing the Switch 3.3.1 Rack Installation Requirements (1) Before installing the rack, plan the available space for the rack. Reserve sufficient space for the front and rear doors of the rack for device maintenance. (2) Mount and fasten the rack at the designed location as planned. (3) Install the appropriate cable management bracket and cables. -
Page 20: Grounding The Switch
Hardware Installation and Reference Guide Installing the Switch Figure 3-2 Securing the Switch to the Rack Grounding the Switch Connect the grounding cable to the grounding stud on the back panel of the device. Note The grounding cable is not delivered with the switch and should be purchased separately. Connecting the Cables Warning Please use the power cord delivered with the device to prevent accidents. -
Page 21: Verifying Operating Status
Hardware Installation and Reference Guide Verifying Operating Status Verifying Operating Status Powering on the Switch 4.1.1 Checklist before Power-on Check whether the switch is properly grounded. Check whether the switch is properly installed in the rack. Check whether the power cord is properly connected. ... -
Page 22: Appendix
Hardware Installation and Reference Guide Appendix Appendix Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps self-adaptive Ethernet port that supports auto MDI/MDIX Crossover. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5 or Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 m (328.08 ft). - Page 23 Hardware Installation and Reference Guide Appendix Figure 5-3 100BASE-TX/10BASE-T Twisted Pair Connection Fiber-Optic Cable Connection Please choose SMF or MMF optic cables according to the module types. Figure 5-4 Fiber-Optic Cable Connection...
-
Page 24: Mini-Gbic And Sfp Modules
Hardware Installation and Reference Guide Appendix Mini-GBIC and SFP Modules We provide GE SFP modules (Mini-GBIC modules) according to the SFP port types. You can select the module to fit your specific needs. The following models and technical specifications of some GE SFP modules are listed for your reference. -
Page 25: Lightning Protection
Hardware Installation and Reference Guide Appendix Wave- Core Modular Receive Mini-GBIC Fiber Cabling Transmit length Size Bandwidth Standard (SFP) Type Distance Power Power (μm) (nm) (MHz/km) (dbm) (dbm) Mini-GBIC- CAT 5 100 m Lightning Protection 5.3.1 Installing AC Power Arrester (lightning protection cable row) The AC power port must be connected to an external lightning protection power strip to prevent the switch from being struck by lightning when the AC power cord is introduced from the outdoor and directly connected to the power port of the switch. -
Page 26: Installing The Ethernet Port Arrester
Hardware Installation and Reference Guide Appendix by the reversed connection of the Null and Live lines: Use a multimeter to measure the polarity of the power socket for the arrester when the LED is Red, if the N line is on the left and the L line is on the right (facing the socket), the arrester PE terminal is not grounded;... - Page 27 Hardware Installation and Reference Guide Appendix Reversed installation direction of the arrester. Connect the external Ethernet cable to the IN end and connect the Ethernet port of the switch to the OUT end. Poor grounding of the arrester. The grounding cable of the arrester should be as short as possible to ensure that it is in good contact with the grounding stud of the switch.
