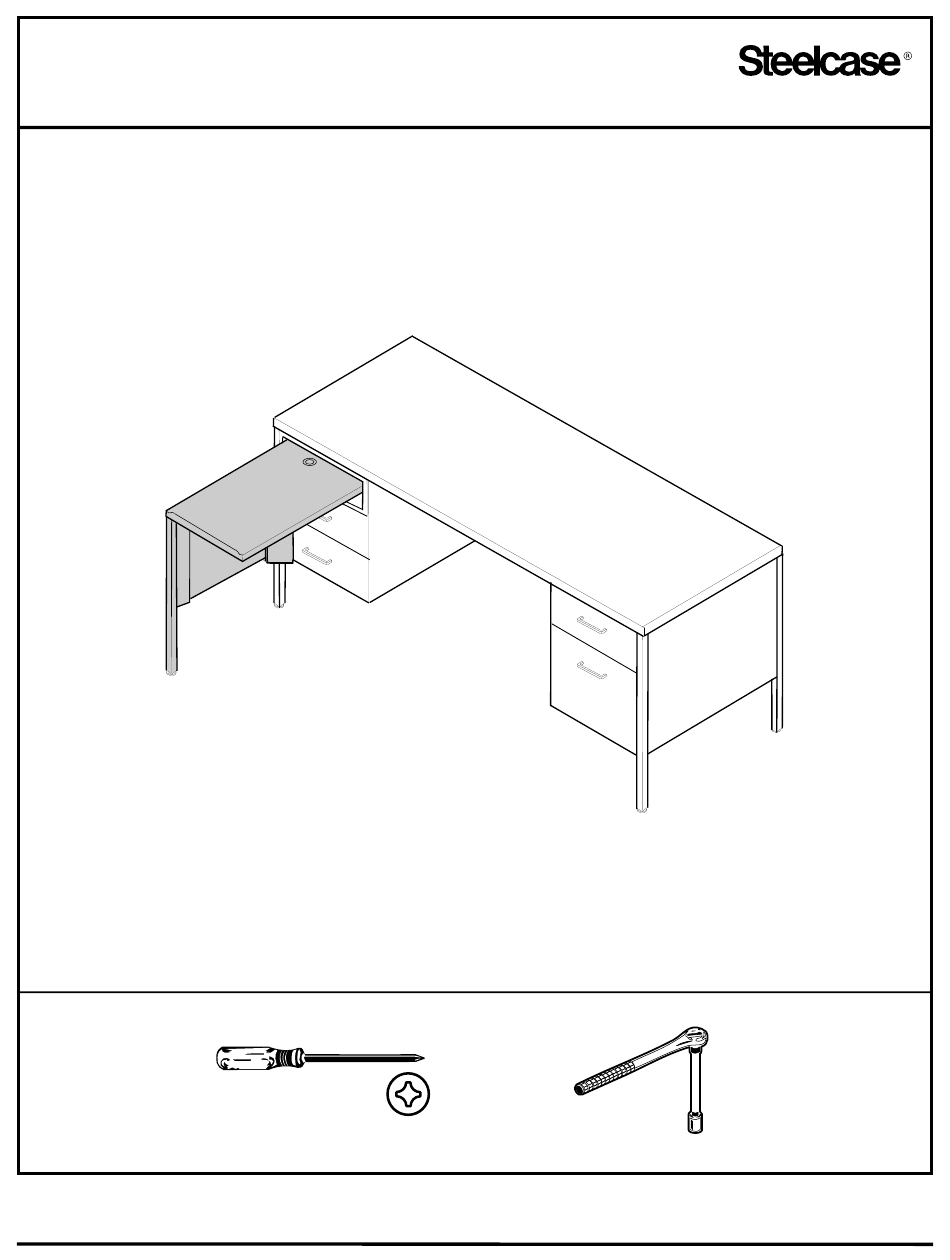

- Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 Attaching and Assembling a 41-TSLP Typewriter Stand to a 3200 Desk Tools Assembly Directions Printed In U.S.A. 93-9500977 C Page 1 of 5...
- Page 2 Invert typing stand and case insert assembly on protected surface. With glide facing up, loosely attach leg to back panel. Use (2) 1/4 x 9/16” hex head screws. Once both screws have been started, tighten securely. 1/4 X 9/16” HEX SCREW BACK PANEL Place leg and back panel assembly on typing shelf and case insert assembly and...
- Page 3 Remove top drawer and adjacent parts both sides of case, the wearing of gloves is recommended. a. Drawer assembly b. Drawer track c. Rubber bumpers d. Lock cam assembly #10 X 1/2” SCREWS Turn unit upright and attach front filler to case insert with (2) #10 x 1/2”...
- Page 4 Slide case insert into drawer opening, keep typewriter stand straight to prevent binding and allow proper alignment. Align complete unit with desk, then secure by adding (6) #10 x 3/8” Screws through inside of case insert, (3) per side. Assembly Directions Page 93-9500977 REV C 4 of 5...
- Page 5 Assemble channel clip to bottom plate with (2) #10x 1/2” sheet metal screws loosely (Do Not Tighten). Insert channel clip into bottom of back panel. Attach bottom plate to underside of pedestal with (2) #10 x 1/2” hex screws threaded into speed nut. PEDESTAL BACK PANEL PEDESTAL...
