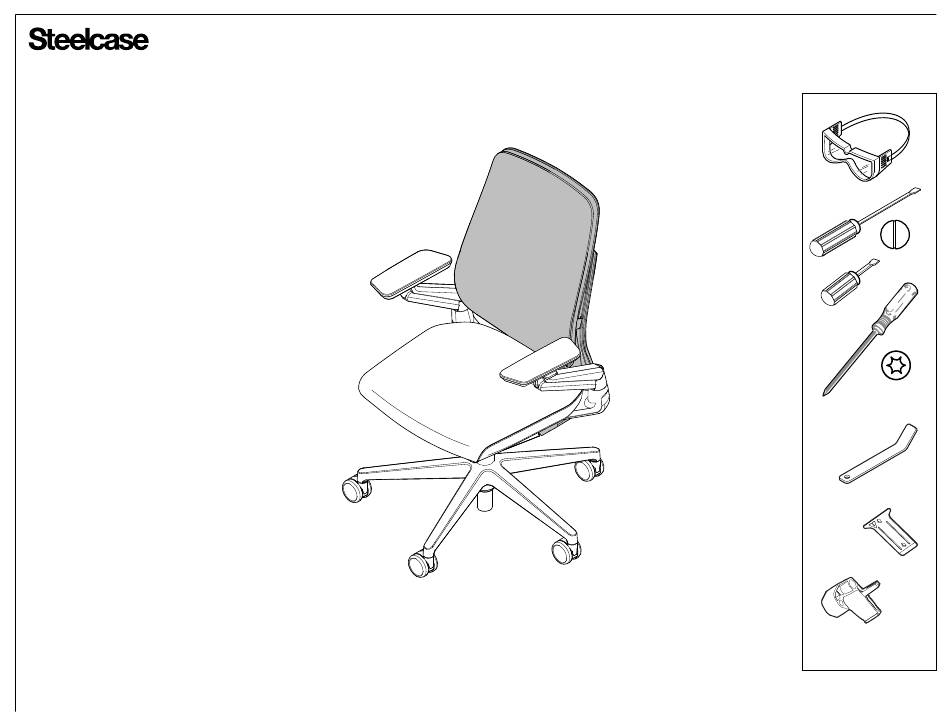

442 Gesture
™
Chair -
®
Back and Can Cover Replacement
T-30
TORX
Back Release
Tool
Safety Pin
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Holding Block
Or visit our website: www.steelcase.com
©
2013 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Page 1 of 7
939544212 Rev B
Printed in U.S.A.
Advertisement
Table of Contents
Related Manuals for Steelcase Gesture 442
Summary of Contents for Steelcase Gesture 442
- Page 1 Back Release Tool Safety Pin If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
- Page 2 ® Rotate back tension knob counter clock-wise until it stops. Rotate variable back stop lever counter clock-wise until it stops. (This allows the back to fully recline). BACK TENSION KNOB VARIABLE BACK STOP LEVER Page 2 of 7 939544212 Rev B...
- Page 3 ® OPTIONAL: FOR STANDARD BACK CUSHIONS Rotate seat depth knob clock-wise to extend seat forward. Slip fingers between cushion and outer back DETACH shell in the center of the back on both sides. Lift RUBBER BUNGEE cushion up and forward to unhook from top of back. Lay cushion down.
- Page 4 ® OPTIONAL: FOR WRAP BACK CUSHIONS Rotate seat depth knob clock-wise to extend seat forward. Slip fingers between cushion flap and outer back shell on one side of the back cushion. Pull outward to disengage ‘T’ clips. Work from one side to the other. Fold flap over cushion face when completed.
- Page 5 ® BACK BUCKLE LATCH SNAP BACK RELEASE TOOL Place bent end of back release tool (p/n 442B2100) into slot of back buckle latch. Push down on end of back release tool to pivot bent end up, disengaging back buckle latch (2a). Pull bottom of back out of core equalizer (2b).
- Page 6 ® SAFETY PIN HOLDING BLOCK CORE EQUALIZER SPRING Rock the top of the back forward to compress the core equalizer spring fully (5a). Insert holding block (P/N 442B8101) and safety pin (P/N 442B9501) as shown (5b). Remove back assembly by pulling straight out. If you are replacing the can covers, gently pry up back end of...
- Page 7 ® HOLDING BLOCK CORE EQUALIZER SPRING SAFETY PIN Insert new back frame. Feed in from back. Rotate it down into place. Holes should align. Rock back frame forward to compress core equalizer spring. Remove safety pin and holding block. Carefully rock top of back rearward to release tension on spring.
