Steelcase 41-ATT Assembly Directions
Steelcase 41-ATT Assembly Directions

Steelcase 41-ATT Assembly Directions

Machine & typewriter unit attachment to 3200 desk

Advertisement

Quick Links

Steelcase, Inc.
Grand Rapids, MI 49501
U.S.A.
1-800-227-2960
Machine & typewriter Unit Attachment (41-ATT) Attached To 3200 Desk
Tools
Assembly Directions
Consignes de montage
Instrucciones para el ensamblaje
Printed In U.S.A.
Imprime aux Etats-Unis d'Amerique
Impreso en EE.UU.
3/16"
Wood Assembly Only
93-9504398 -
Page 1 of 4
REV

Advertisement

loading
Need help?

Need help?

Do you have a question about the 41-ATT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steelcase 41-ATT

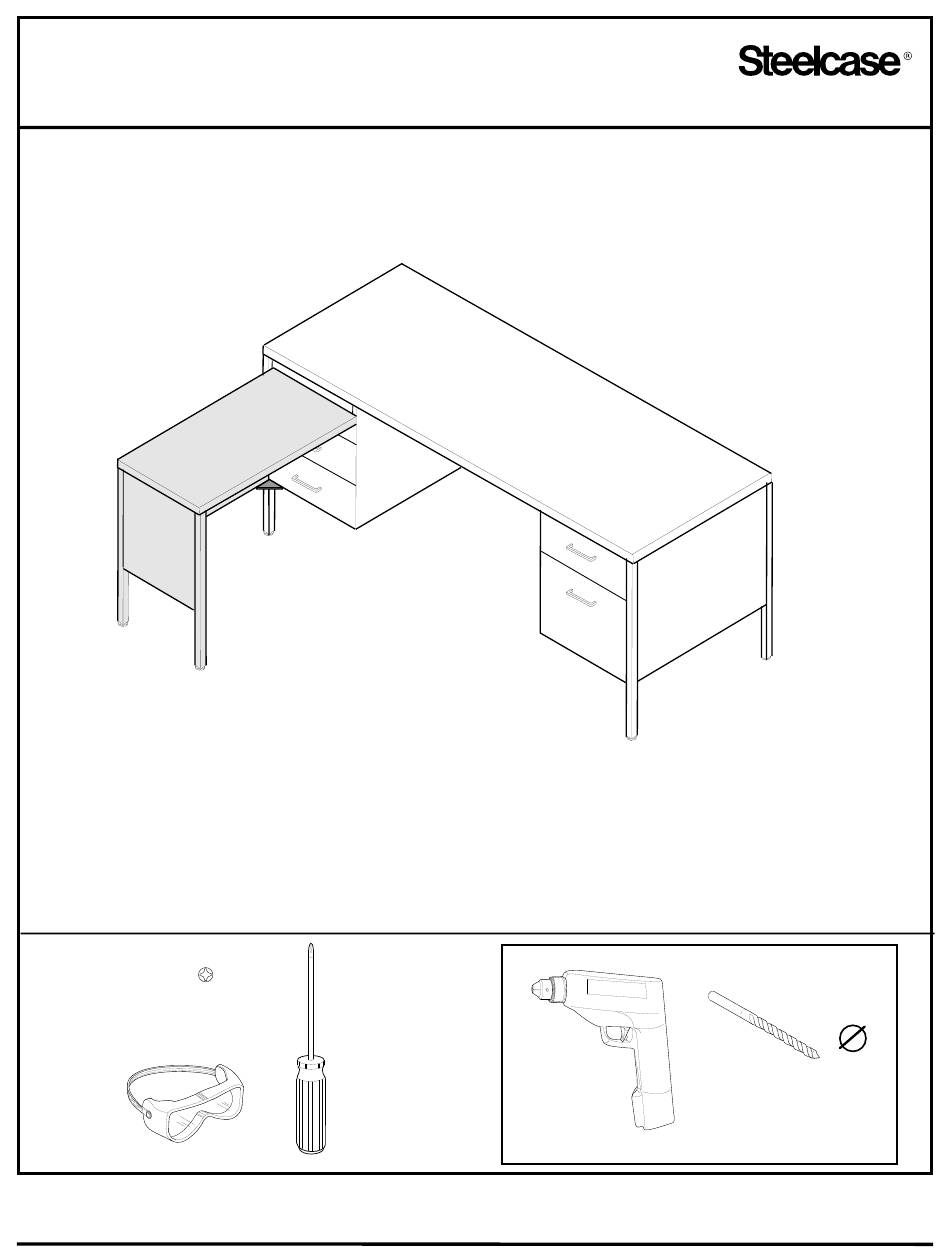

  • Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-800-227-2960 Machine & typewriter Unit Attachment (41-ATT) Attached To 3200 Desk Tools 3/16” Wood Assembly Only Assembly Directions Printed In U.S.A. 93-9504398 - Consignes de montage Imprime aux Etats-Unis d’Amerique Instrucciones para el ensamblaje Page 1 of 4 Impreso en EE.UU.
  • Page 2 Install End Panel Install Back Panel 3/32" Install Bottom Panel Plate #10-24 x 3/8" Machine Screw Desk Leg (Ref. Only) Bottom Panel Attach To Back Panel Only Plate At this Point. Back Panel Hex Nut Assembly Directions Page 93-9504398 REV - 2 of 4...
  • Page 3 Remove Outerhead Remove Pull and Install Mounting • (1) Remove Screw each side of outerhead Bracket, 2300, 3200 only. • (2) Push downward to unlock outerhead on drawer front 2300/3200 • (3) Pull out on outerhead • (4) Remove Screws & washer from handle assembly Save washers to reuse Replacing Outerhead •...
  • Page 4 Install Return Unto Desk NOTE: Drill 3/16” Hole at location A & B (For Wood Only) DESK BACK PANEL Hanger Bracket Clip Angle 1/4” x 1” Screw Installation of Bottom Panel Bracket Desk Return Unit Back Panel Plate #10 x 1/2 Screw Assembly Directions Page 93-9504398 REV -...
