Steelcase 415 NORTHSIDE Disassembly Instruction
Steelcase 415 NORTHSIDE Disassembly Instruction

Steelcase 415 NORTHSIDE Disassembly Instruction

Advertisement

Quick Links

Using tools
415 NORTHSIDE Disassembly Instruction
T20 & T30 TORX

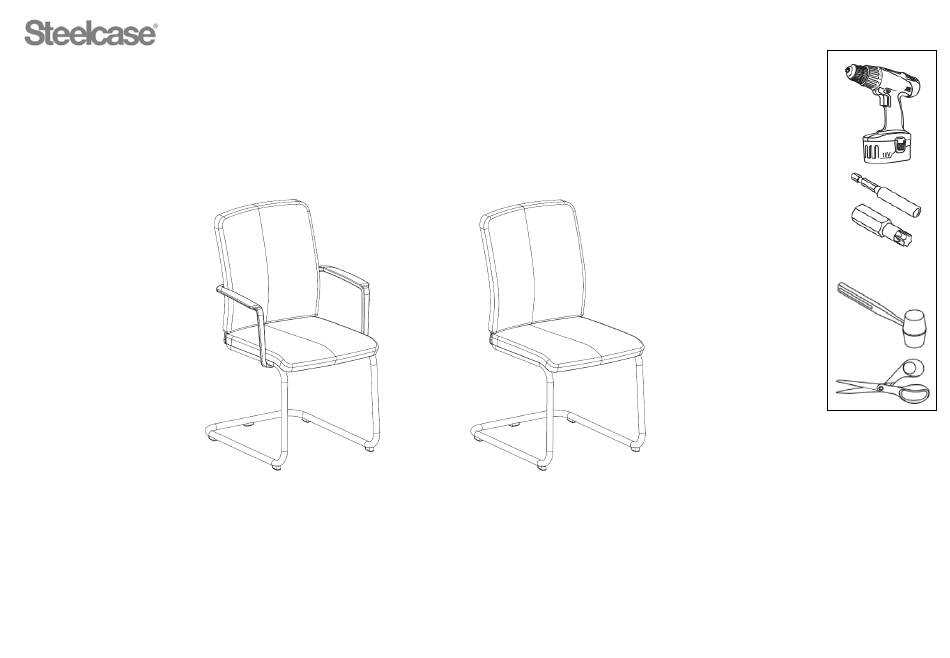

NORTHSIDE WITH ARMRESTS
NORTHSIDE WITHOUT ARMRESTS
154223 Rev A
Page 1 of 6
