Components in the DGT-U are:
• A1 – The DGT-U Radio Transceiver
• A2 – The 125 V DC / V AC Power Supply
• A3 – 125 V DC Relay for Trip Status Output
• A4 – 125 V DC Relay for Trip Status Confirmation Input
• Terminal blocks for external wiring connections
• 10 W self-regulating internal heater
• A13 – Bulkhead Lightning Arrestor with Connection for DGT-U Antenna Feedline
• Jumper Cable (not shown) for Connection from Lightning Arrestor to DGT-U
Transceiver
• Yagi Directional Antenna (not shown)
• Antenna Feedline (not shown)

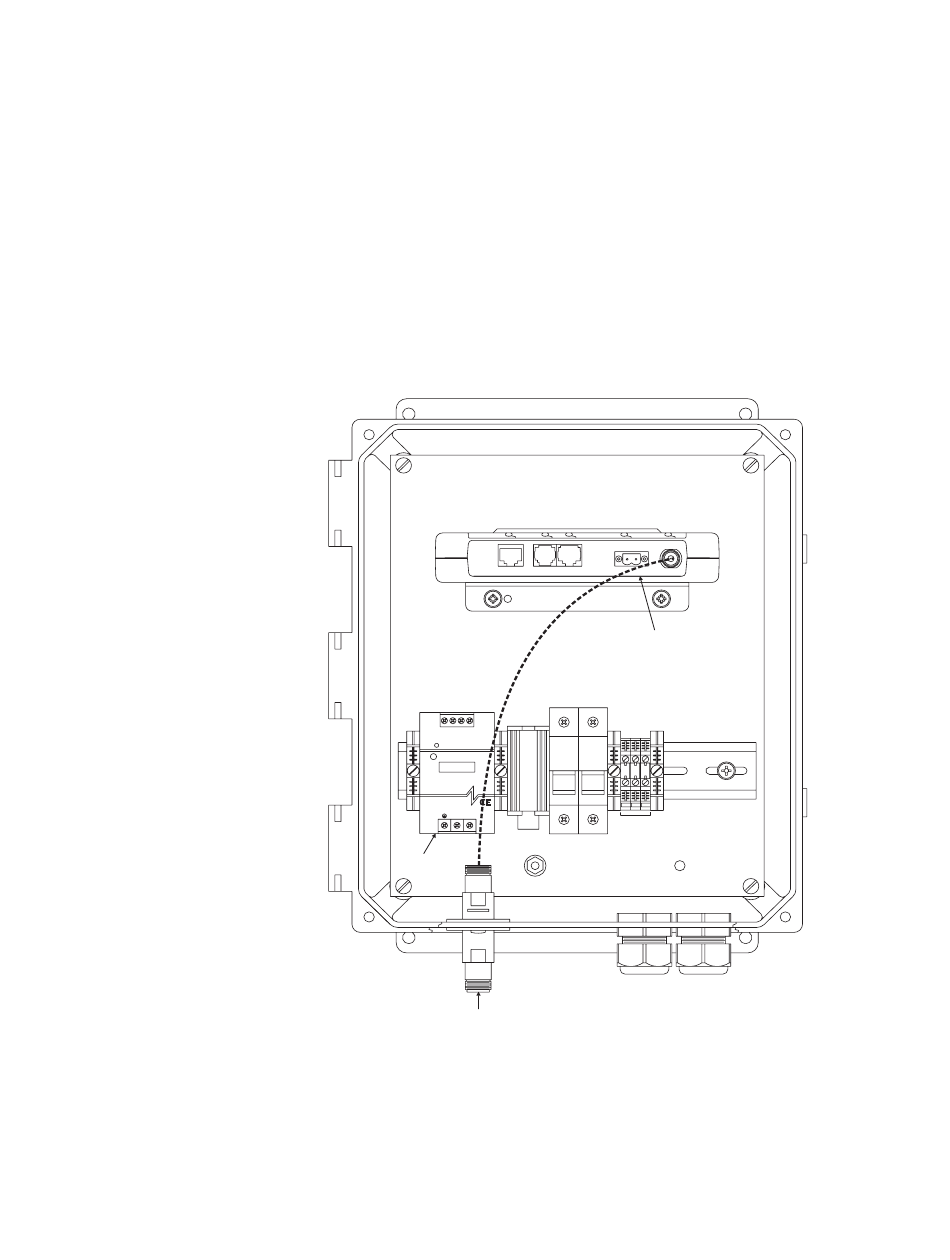

Figure 1-4: DGT-R layout
POWER SUPPLY POWER SUPPLY
A2
Components in the DGT-R are:
• A1 – The DGT-R Radio Transceiver
• A2 – The 125 VDC/VAC Power Supply
• Terminal blocks for external wiring connections
• 10 W self-regulating internal heater
• A13 – Bulkhead Lightning Arrestor with Connection for DGT-R Antenna Feedline
