OPERATION MANUAL
Torque Sensor
Models 8627, 8628, 8632
Manufacturer:
burster präzisionsmesstechnik gmbh & co kg
Talstraße 1 - 5
DE-76593 Gernsbach DE-76587 Gernsbach
Germany
Tel.:
Fax.:
E-Mail: info@burster.com
1080-BA8627EN-5070-031516
P.O:Box 1432
Germany
(049) 07224 / 6450
(049) 07224 / 64588
www.burster.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8627 and is the answer not in the manual?

Questions and answers

Related Manuals for Burster 8627

Summary of Contents for Burster 8627

  • Page 1 OPERATION MANUAL Torque Sensor Models 8627, 8628, 8632 © 2013 burster Manufacturer: präzisionsmesstechnik gmbh & co kg burster präzisionsmesstechnik gmbh & co kg All rights reserved Talstraße 1 - 5 P.O:Box 1432 DE-76593 Gernsbach DE-76587 Gernsbach Germany Germany Valid from: 15.03.2013 Tel.:...
  • Page 2 (hereinafter referred to as "product") are the results of targeted development and meticulous research. As of the date of delivery, burster provides a warranty for the proper condition and functioning of these products covering material and production defects for the period specified in the warranty document accompanying the product.

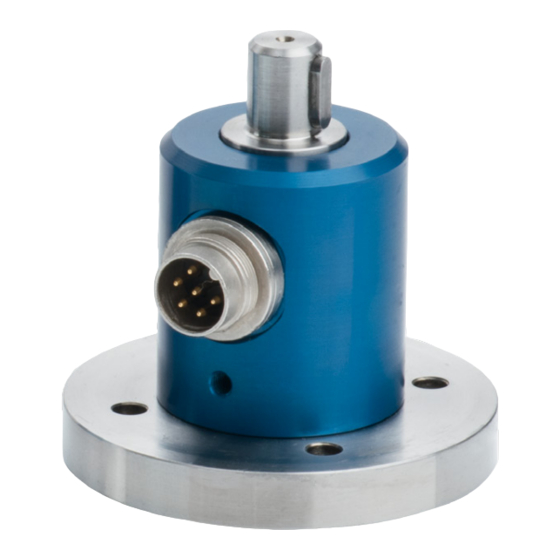

  • Page 3 Torque Sensor Model 8627, 8628, 8632 Torque Sensors Model 8632 Model 8628 Model 8627 Page 3...
