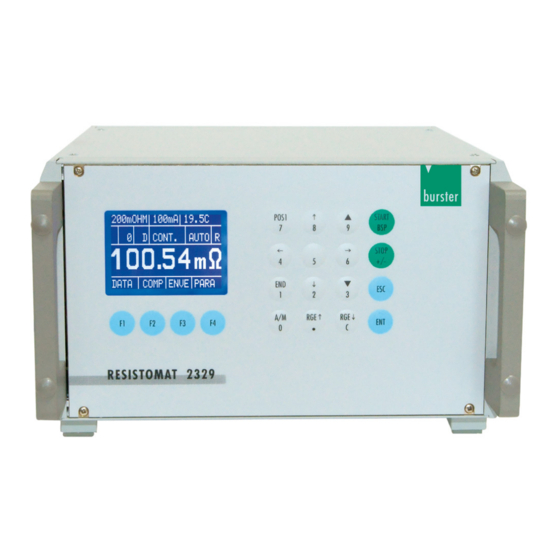

OPERATION MANUAL
RESISTOMAT
Model 2329
®
Manufacturer:
burster präzisionsmesstechnik gmbh & co kg
Talstraße 1 - 5
DE-76593 Gernsbach
Germany
Tel.:
(+49) (0)7224 / 6450
Fax.:
(+49) (0)7224 / 64588
E-Mail:
info@burster.com
www.burster.com
2827-BA2329EN-5999-121530
P.O.Box 1432
DE-76587 Gernsbach
Germany
