- Page 1 Typ 9186-VX1XX USER MANUAL Typ 9186-VX1XX DIGITAL INDICATOR FOR LOAD CELL INPUT www.burster.de...
-
Page 2: Table Of Contents
Description ........................19 Function modes description ................... 19 HI/LO mode activation ....................19 Time delay ........................ 19 Asymmetrical hysteresis ..................... 19 Installation ........................20 DESK VERSION OPTION 9186-V31XX Connectors location and description ................21 SPECIFICATIONS Technical specifications ....................22 www.burster.de... -
Page 3: General Information
Typ 9186-VX1XX GENERAL INFORMATION This manual does not constitute a contract or a commitment on the part of burster präzisionsmesstechnik gmbh & co kg. All information contained in this document is subject to change without prior notice. MANUAL VALID FOR INSTRUMENTS WITH C2.00 SOFT VERSION OR HIGHER... -
Page 4: Maintenance
Instrument calibration and/or adjustment should be performed only by an accredited laboratory or directly by the manufacturer. Instrument repairs should only be carried out by the manufacturer or by its authorized partners. For frontal device cleaning, just wipe it with a damp cloth and neutral soap product. DO NOT USE SOLVENTS!. www.burster.de... -
Page 5: Conformity Declaration
CISPR11 Emission limits Class B EN 61010-1 Safety requirements for electrical equipment for measurement, control an laboratory use. General safety Overvoltage category II Pollution degree 2 Conductive pollution excluded Isolation type: Enclosure: Double Power/signal: Basic Power/relays: Double Signal/relays: Double www.burster.de... -
Page 6: Device Description
To remove the instrument from the panel, pull outwards the rear fixing clips latching tabs until they are disengaged, then slide fixing clips back over the case. www.burster.de... -
Page 7: Display And Keyboard
Power supply wires should be separatedly routed from signal wires and never runned in the same conduit. Use shielded cable for signal wiring. Cables section should be 0.25 mm². Before connecting signal wires, signal type and input range should be verified to be within the right limits. www.burster.de... -
Page 8: Connections
LOAD CELL CONNECTION WITH EXCITATION SUPPLIED BY THE INDICATOR INDICATOR LOAD CELL ±30mV ±300mV NOTE: +OUT -OUT The instrument can supply excitation to multiple load cells connected in parallel as long as 30mA of total load current is not exceeded. -IN (COMMON) +EXC. -EXC. www.burster.de... -
Page 9: Remote Tare Function
3 seconds. Relays output wiring RELAY 2 RELAY 1 WARNING: Read recommendations and related data on pages 7 and 8. IMPORTANT: To guarantee electrical safety according to EN 61010-1 a protective 8A/250V external fuse must be installed. 8A/250V MAX. www.burster.de... -
Page 10: Input Configuration
The first menu corresponds to input configuration. This, in turn, consists of two options, one for each input type: (300) and (30). No additional configuration is needed for these input types (direct validation). SIGNAL TYPE: 300: Input signal up to ±300mV DC Input signal up to ±30mV DC www.burster.de... - Page 11 Typ 9186-VX1XX EXCITATION LEVEL: Configurable value: E 5: 5V DC E 10: 10V DC Once input range is selected, the routine goes to configure excitation. 5V and 10V are available. In both cases load current limit is 30mA DC. www.burster.de...
-
Page 12: Display Configuration
(150.0) 2mV/V load cell with a 10V DC DISPLAY 1 DISPLAY 2 excitation. Decimal point is DISP.1 (00.0) situated between third and fourth digit of the display. INPUT 1 INPUT 2 INPUT 1 INPUT 2 INP.1 INP.2 (0.00) (20.00) www.burster.de... -
Page 13: Mv Input
TARE value. Value Fc (Hz) Value Fc (Hz) FiLt 0.35 WEIGHTED AVERAGE FILTER: 1.20 0.29 0.44 0.23 FiLt: 0 to 8 Configurable 0.41 0.18 0.38 www.burster.de... -
Page 14: Setpoints Configuration
If 2RE output option card is uninstalled, the instrument keeps setpoints last configuration in memory, though it can not be visualized. Thanks to this feature there will be no need to reconfigure relays setting when 2RE output option is again installed if the same configuration is required. www.burster.de... -
Page 15: Available Keyboard Functions
FIRST SETPOINT VALUE: 00.00 SEt1: Setpoint 1 value indication. 00.00: Value entering in counts within available model display range. SEt2 SECOND SETPOINT VALUE: 00.00 SEt2: Setpoint 2 value indication. 00.00: Value entering in counts within available model display range. www.burster.de... -
Page 16: Return To Default Configuration
Display shows now “CodE” and then “0000”. Desired security code must be introduced CodE through SHIFT and UP keys (by default this code is 0000). Finally press ENTER to begin with lock-out level configuration. If entered security code 0000 is wrong, the instrument will go back to RUN mode. www.burster.de... -
Page 17: Configuration Lock-Out
If 2RE output option card is uninstalled, the instrument keeps setpoints last configuration in memory, though it can not be visualized. There will be no need to reconfigure setpoints lock-out when 2RE output option is again installed if the same configuration is required. www.burster.de... - Page 18 Once the instrument programming is completed, if there are parameters that are going to be frequently changed, a partial lock-out is recommended. A total lock-out is recommended when configuration parameters will be constant for a long time. Changing default security code and keep new one in a safe place is also strongly recommended. www.burster.de...
-
Page 19: Output Option
‘hys-1’ delay as indicated on the right figure. Note that outputs activation is not affected by hysteresis and they activate in each case just when Hysteresis delay for OUT1 (HI mode) and for OUT2 (LO mode) setpoint ‘SET’ is reached by display. www.burster.de... -
Page 20: Installation
Disconnect all power and rest of input signals connected to the indicator before installing or extracting the output option card. Once 2RE is installed and instrument is again inside the case, 2RE connectors should come out through the obtained orifice as this figure shows. www.burster.de... -

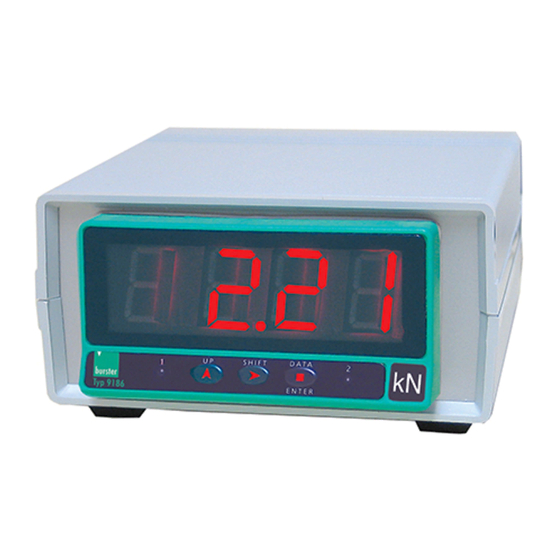

Page 21: Desk Version Option 9186-V31Xx
Typ 9186-VX1XX DESK VERSION OPTION 9186-V31XX Connectors location and description 8 pin assignment for terminal implementation GND reference TARE (DMS) Digital Out function 9186-V31XX with Load Cell (DMS) wiring diagram +Excitation +Signal -Signal -Excitation Shield www.burster.de... -
Page 22: Specifications
EMI max. Influence (±300mV) ........±60V Maximum input signal (±30mV) ........±32mV Maximum input signal (±300mV) ........ ±320mV RANGE RESOLUTION ACCURACY ±30mV 1V ±(0.05%rdg + 6V) ±300mV 15V ±(0.05%rdg + 60V) FILTER Cutoff frequency (-3dB) ........ 1.20Hz to 0.18Hz Slope ..............-20dB/Dec. www.burster.de... - Page 23 Use the following template for the annotation of configured parameters in your instrument for later consulting or data recover. INPUT: TYPE: RANGE: DISPLAY: SCAL TEACH CONFIG. MODE: INPUT 1: DISPLAY 1: INPUT 2: DISPLAY 2: FILTER (0 ÷ 8): SETPOINTS: SET1: MODE: DLY: HYS: SET2: MODE: DLY: HYS: LOCK-OUT: ACCESS CODE: www.burster.de...
- Page 24 Typ 9186-VX1XX burster präzisionsmesstechnik gmbh & co kg Tel. +49 07224-6450 Talstr. 1-5 D-76593 Gernsbach Fax +49 07224-64588 www.burster.de Germany Email: info@burster.de ; web: www.burster.de 30727259 28.10.2013...
