RESISTOMAT
© 2008
burster
präzisionsmesstechnik gmbh & co kg
All rights reserved
Valid from: 01.07.2008
®
Manufacturer:
burster präzisionsmesstechnik gmbh & co kg
Talstraße 1 - 5
76593 Gernsbach
Germany
Tel.:
Fax.:
E-Mail:

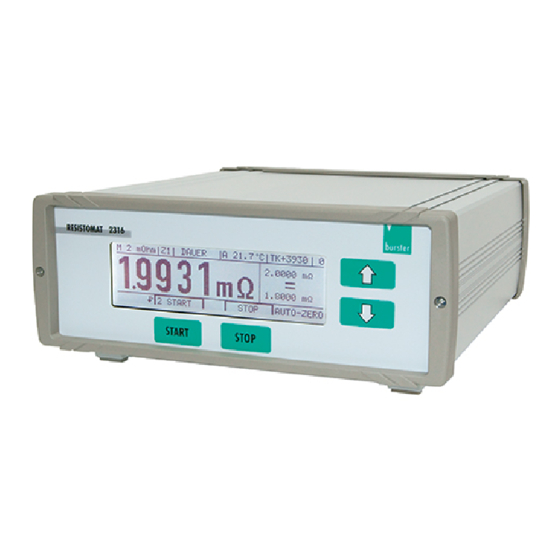

Model 2316
Short Operation Manual
RESISTOMAT
P.O.Box 1432
76587 Gernsbach
Germany
(049) 07224 / 6450
(049) 07224 / 64588
info@burster.de
www.burster.de
®
Model 2316
Page 1
Advertisement
Table of Contents
Related Manuals for Burster Resistomat 2316
Summary of Contents for Burster Resistomat 2316
- Page 1 Short Operation Manual ® RESISTOMAT Model 2316 © 2008 burster Manufacturer: präzisionsmesstechnik gmbh & co kg burster präzisionsmesstechnik gmbh & co kg All rights reserved Talstraße 1 - 5 P.O.Box 1432 76593 Gernsbach 76587 Gernsbach Germany Germany Valid from: 01.07.2008 Tel.:...
- Page 2 (hereinafter referred to as „product“) are the results of targeted development and meticulous research. As of the date of delivery, burster provides a warranty for the proper condition and functioning of these products covering material and production defects for the period specified in the warranty document accompanying the product.
- Page 3 ® RESISTOMAT Model 2316 Page 3...
-
Page 4: Safety Instructions
Model 2316 RESISTOMAT ® Safety instructions Whilst the hardware and software has been developed and tested in accordance with the state of the art, they cannot be guaranteed totally free of errors. Thus this instrument or part of this instrument must not be used to influence a control system from which risk to life or property can arise directly or indirectly without additional protection. -
Page 5: Preparations For Use
® RESISTOMAT Model 2316 Preparations for use Unpacking the unit The instrument weighs 3.5 kg and is packaged accordingly to protect against shock. Unpack the instrument carefully and verify that all items are present. This normally includes: 1 RESISTOMAT ® model 2316 milliohmmeter 1 power lead Inspect the instrument carefully for damage. -
Page 6: Setup And Installation
In very dirty industrial environments, it is recommended to use a suitable protective enclosure. Functional test After switching on the instrument, the following text appears on the display for about 3 s: RESISTOMAT 2316 VERSION: SERIAL NUMBER SOFTWARE VERSION CAL-NUMBER... - Page 7 ® RESISTOMAT Model 2316 Power supply and signal-lead connectors Main fuse Measurement input either via 5-pin bayonet socket or 4 x Main socket laboratory safety sockets ( 4 mm Power switch Digital inputs/outputs Pt 100 connector RS232 interface for PLC Option: USB-interface with RS232/USB adapter additional protection of the measurement...
-
Page 8: Front Panel
Model 2316 RESISTOMAT ® Front panel Front panel with backlit LCD display and integral membrane keypad with tactile feedback Button functions [START] In the measurement menu this button starts a measurement In the Configuration menu this button is assigned different functions depending on the text shown on the display above the button (soft key). -
Page 9: Operation
® RESISTOMAT Model 2316 Operation Meaning of the individual display segments time constant temperature display device program 0 ... 15 of current source M = manual Z1, Z2, Z3 A = automatic status line measurement SINGLE measuring CONT temperature range ALT-MEAS coefficient M = manual... -
Page 10: Configuration Program
Model 2316 RESISTOMAT ® Configuration Program After switch on the instrument, the operating language can be selected in the instrument identification menu. Pressing both arrow buttons simultaneously opens the configuration program. ENTER confirms the selected menu option. ESC can be used to return from any option in the configuration menu back to the next menu option down. - Page 11 ® RESISTOMAT Model 2316 Page 11...
-
Page 12: Rear Panel
Decription of connector sockets Measurement input Analog GND Connector shell : PE (protective ground) Gegenstecker : burster model 9900-V172 Note: The current branch is protected by a fuse 6,3 x 32 [mm] 10AFF. (rear side of unit) View towards socket - I is at FE potential CAUTION ! Only one measurement input must be used at any on time. - Page 13 ® RESISTOMAT Model 2316 Page 13...
- Page 14 Model 2316 RESISTOMAT ® Accessories Wire holding device for wire cross section 0,1 mm ...100 mm Wire holding devices for wire cross section up to 2500 mm are also available. Kevin Test Tongs (small and large) and Kevin Test Probes for the rigth connection of the test object.
