– INSTRUCTION MANUAL –
NEW ORDER
STEEL PARTS
DESIGN BY STEFAN DIEZ

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO 5830 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hay PRO 5830

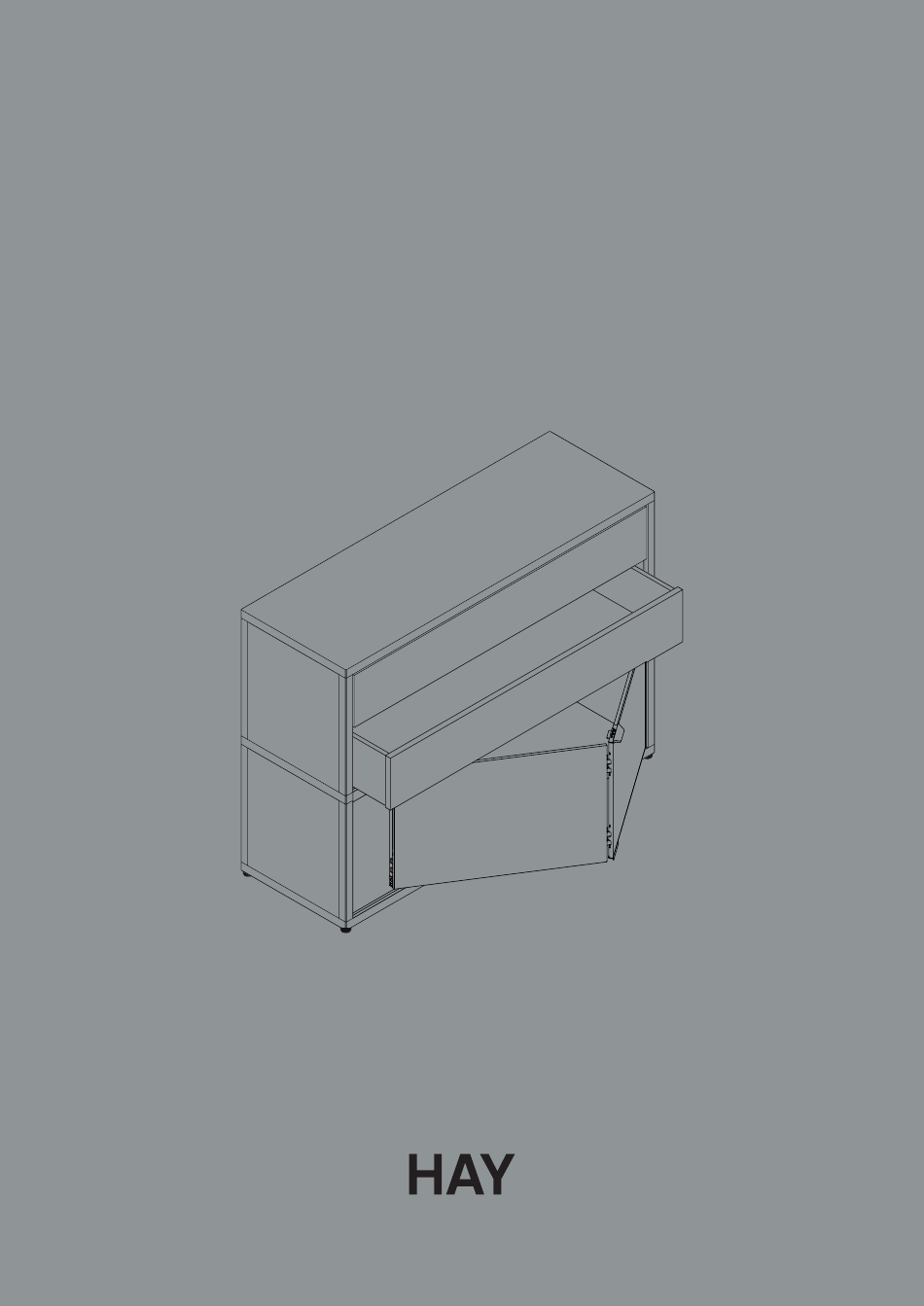

  • Page 1 – INSTRUCTION MANUAL – NEW ORDER STEEL PARTS DESIGN BY STEFAN DIEZ...
  • Page 3 – INTRODUCTION – Developed in collaboration with HAY, Stefan Diez’s New Order is a modular shelving and table system designed to fit the ever-changing boundaries of contemporary workspace and living environments. The simple open-grid construction serves as a flexible and functional framework, enabling the user to create customised open or closed storage solutions with optional drawers, doors and panels.
  • Page 5 – TABLE OF CONTENTS – SAFETY INSTRUCTIONS INSTRUCTIONS STEEL PANELS 7-14 INSTRUCTIONS TEXTILE PANELS 15-22 INSTRUCTIONS ADJUSTABLE SHELVES 23-27 INSTRUCTIONS STEEL DOORS 28-37 INSTRUCTIONS DRAWERS 38-52 ACCESSORIES INSTRUCTIONS MIDDLE BAR / LOCK BAR 53-56 INSTRUCTIONS WALL SAFETY BRACKET 57-61 INSTRUCTIONS FLOOR SAFETY BRACKET 62-65 GUIDELINE WALL MOUNTING INSTRUCTIONS TRAY ADAPTER...
  • Page 6 DO NOT CLIMB MAX BUILDING HEIGHT FREESTANDING FREESTANDING CONNECTED WITH FLOOR WITH WALL SAFETY BRACKETS SAFETY BRACKETS ALWAYS USE SAFETY BRACKETS IN THE FOLLOWING CASES Public places Trains, ships etc. Airports, lobbies, Environments medical centres etc. with children MORE INFO AT HAY.COM...
  • Page 7 – INSTRUCTIONS – STEEL PANELS...
  • Page 8 – STEEL PANELS OVERVIEW – Side panel 34 Back panel 100 Side panel Back panel double height 34 double height 100 Back panel 150 Wall panel 100 Wall panel 150...
  • Page 9 – STEEL PANELS OVERVIEW – Table panel 34 Table back panel 100 Table panel Table back panel double height 34 double height 100 Table back panel 150 Perforated back panel 100 Perforated back panel double height 100 Perforated back panel 150...
  • Page 10 – PARTS –    Back panel Side panel Allen key...
  • Page 11  Mount the back panel by inserting the bent edge into the channel running along the bottom of the top shelf. Hold the shelf at an angle when instering it and then slowly turn it, pushing the bottom edge of the panel into place.
  • Page 12  Working inside the shelf, use the Allen key to push the small pins in the edges of the panel into the channel of both the bottom shelf and the corner profiles. 67-68...
  • Page 13  Insert the side panels from the long side of the shelf, and turn them into place.
  • Page 14 Lock the panels in place by pushing the small pins into the channel of the corner profiles.
  • Page 15 – INSTRUCTIONS – TEXTILE PANELS...
  • Page 16 – TEXTILE PANELS OVERVIEW – Textile side panel 34 Textile back panel 100 Textile side panel Textile back panel double height 34 double height 100 Textile back panel 150...
  • Page 17 – PARTS –   Textile panel clip Textile steel panel   Textile insert Allen key...
  • Page 18  Insert the textile panel clips into the channel running along the bottom shelf. Make sure the round dot on the clip is facing outwards.
  • Page 19  Mount the textile steel panel by inserting the bent edge into the channel running along the bottom of the top shelf. Hold the shelf at an angle when instering it and then slowly turn it, pushing the bottom edge of the panel into place.
  • Page 20   Push the round dot on the textile clip through the hole in the panel . Then slide the clip to the side, locking it in place.
  • Page 21  Use the Allen key to push the small pins in the edges of the panel into the channel of the corner profiles.
  • Page 22  Remove the protective film of the adhesive strips on the back of the textile insert Make sure not to separate the velcro parts. Then mount the textile insert onto the steel panel by pushing it into place.
  • Page 23 – INSTRUCTIONS – ADJUSTABLE SHELVES...
  • Page 24 – PARTS –  ADJ side panel / ADJ side panel for table   Shelf pin ADJ shelf...
  • Page 25  Mount both of the adjustable side panels according to the instructions on pages 13-14. Mount the panels according to the direction of the mounting label. 13 14 NOTICE Mount the panels according to the direction of the mounting label.
  • Page 26  Insert the shelf pins (4 per/shelf) in the grooves inside the side panels at the desired  height. The pins are supplied with adjustable shelf packages.
  • Page 27  Insert each adjustable shelf upright with the bottom facing outwards and angling it into one of the inside corners, as shown in the illustration below.  Place the back edge against the shelf pins at the back and rotate the shelf forward so the top faces up.
  • Page 28 – INSTRUCTIONS – STEEL DOORS...
  • Page 29 – STEEL DOORS OVERVIEW – Steel door 100 Steel door with lock 100 Steel door left 100 Steel door left with lock 100 Steel door Steel door double height 100 double height with lock 100 Steel door left Steel door left double height 100 double height with lock 100 Steel door 150...
  • Page 30 – PARTS –   Connector clip Allen key  Steel door   Lock cylinder (doors with lock only) (doors with lock only)
  • Page 31  Insert the connector clips in the channel running along the shelf. Both on the top and underneath.
  • Page 32  Rotate the end fitting on the steel door as shown in the illustration below.
  • Page 33 Insert the fitting on the end of the steel door into the channel on the profile. Start with the door at an angle before rotating it into place.
  • Page 34  To lock the door in place, use the Allen key to bend the small tab into the channels, both at the top and bottom.
  • Page 35 Push the other end of the door into place by clicking the metal fitting  into the connector clips and supporting it with your hand.
  • Page 36 If you experience problems with fully closing your double height door, adjust the fixed screw on the inside bottom of the door.
  • Page 37 Mounting lock cylinder (doors with lock only).   Insert the matching key in the lock cylinder Make sure the cylinder is turned so that the end pin is facing downwards.  Insert the cylinder in the cylinder housing on the steel door .
  • Page 38 – INSTRUCTIONS – DRAWERS...
  • Page 39 – DRAWERS OVERVIEW – Drawer 34 Drawer double height 34 Drawer 100 Drawer double height 100...
  • Page 40 – PARTS –  Drawer  Mounting panels right / left  Stabilisation bar    Stabilisation connector Bar end 1 Bar end 2...
  • Page 41 Start by removing all of the yellow lock clips that are mounted on the top of each rail on  the mounting panels . The clips can then be discarded, sorted as hard plastic. REMOVE ALL LOCK CLIPS Remove by pressing the tab inwards, then pull up.
  • Page 42  Start with the right side mounting panel (sides are marked on the label). Assemble the panel by sliding it into the groove in the side profiles as illustrated below, and fold the panel inwards at an angle of 90 degrees. Proceed with the left side.
  • Page 43  Once the panels are mounted, pull out the rails and mount the stabilisation connector    on each side. Then assemble stabilisation bar by mounting the bar end 1 and 2 F. . NOTICE Do not use excessive force when mounting the bar ends, as this may cause the parts to break.
  • Page 44   Mount the stabilisation bar between the stabilisation connectors . Then mount   the drawer on top of the rails. Grab the stabilisation bar from below to guide the drawer into place. A click sound confirms that the drawer is locked securely into place. ALIGNMENT Make sure the pins on the rails are aligned with the...
  • Page 45 Test the drawers by pushing on the front to open. Check that the drawers are are flush and placed symmetrically. If not, proceed with the “DRAWERS ADJUSTMENT“ section on pages 46-52.
  • Page 46 DRAWERS ADJUSTMENT...
  • Page 47 ADJUSTING DRAWER BACKWARDS/FORWARDS Turn the wheel to adjust the drawer forwards or backwards. (there is one on each side of the drawer)
  • Page 48 REMOVING DRAWER Push simultaneously on both sides to remove the drawer.
  • Page 49 ADJUSTING HEIGHT Move the slider back or forth to adjust the height.
  • Page 50 ADJUSTING DRAWER SIDEWAYS IN FRONT Turn the wheel to adjust the drawer sideways.
  • Page 51 ADJUSTING DRAWER SIDEWAYS IN FRONT Turn the wheel to adjust the back of the drawer sideways.
  • Page 52 TILTING DRAWER Turn the levels to adjust the tilting of the front.
  • Page 53 - ACCESSORIES - MIDDLE BAR / LOCK BAR...
  • Page 54 – PARTS –  Lock bar / middle bar   Screw M5 Allen key   Lock cylinder (lock bar only) (lock bar only)
  • Page 55  Remove the drawers as instructed in the “DRAWERS ADJUSTMENT” section.  Then insert the lock / middle bar straight into the guide grooves that are placed on each side of the mounting panels. Adjust until the bar is flush, before locking the ...
  • Page 56 Mounting lock cylinder (lock bar only).   Insert the matching key in the lock cylinder j. . Make sure the cylinder is turned so that the end pin is facing upwards.  Insert the cylinder in the cylinder housing on the bar , angle the lock cylinder slightly downwards to get the end pin in.
  • Page 57 - ACCESSORIES - WALL SAFETY BRACKET...
  • Page 58 – PARTS –   Bracket holder Bracket   Screw Torx key...
  • Page 59 Always mount wall panels and wall brackets under the top shelf.  Place the bracket holder in the channel running along the shelf and flip it down by following the steps 1, 2 and 3 below.
  • Page 60    Screw the bracket into place using the screws and torx key . Do not tighten the screws completely. Mark the holes, and slide the bracket to the side and drill holes in the wall. Fasten the bracket with the screws.
  • Page 61  Tighten the screws completely.
  • Page 62 – INSTRUCTION MANUAL – FLOOR SAFETY BRACKET...
  • Page 63 Make sure the shelf is level. Adjust the feet with the Allen key if needed. Slide the brackets in from the sides and mark their position. MARK THE POSITION Mark the position of the brackets on both sides.
  • Page 64 Drill holes where marked. Position the brackets and screw them into place. Make sure the openings at the ends are facing the same direction. POSITION THE OPENINGS Make sure the openings in the two brackets are facing the same direction.
  • Page 65 Slide the shelf into position.
  • Page 66 - GUIDELINE - WALL MOUNTING WOOD WALLS Use suitable wood screws. CONCRETE OR BRICK WALLS Use suitable screws and expansion plugs. DRYWALL OR CHIPBOARD Use suitable expanding bolts. NOTICE These are only intended as guidelines. The buyer is responsible for the wall’s bearing capacity and for ensuring the correct mounting method is used.
  • Page 67 - ACCESSORIES - TRAY ADAPTER...
  • Page 68 Use the tray adapter when mounting drawers in a system with trays. The adapter is easily mounted onto the groove inside the top or bottom of the tray. BOTTOM TRAY Place the tray adapter from the top as illustrated on the right. TOP TRAY Place the tray adapter from below as illustrated on the left.
  • Page 69 - ACCESSORIES - TRAY ADAPTER FOR BACK PANEL...
  • Page 70 When mounting back panels above bottom trays, use the tray adapter to support the back panels in the middle. The adapter is easily mounted onto the groove from inside, as shown in the illustration below. PLACEMENT Place the adapters so they support the bottom pins on the back panel.
  • Page 71 – CARE AND MAINTENANCE – CAUTION ALUMINIUM With a little care you can prolong the life / Wipe with a clean cloth wrung in water of your furniture. Follow the instructions for or in a solution of water and a neutral the materials of your specific product to detergent.
  • Page 72 / Never use concentrated detergents or bleach, ammonia, optical brighteners or soap intended for hard surfaces. / We do not recommend spot cleaning of individual marks and stains as this damages the fabric and causes colour loss. / On wool fabrics, most stains can be removed with lukewarm water on a clean lint-free cloth.
  • Page 76 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com Item no. 850001 17/09/2020...
